GE25-XL-KRR-B
  • GE25-XL-KRR-B
  • GE25-XL-KRR-B Radial Insert Ball Bearings
  • GE25-XL-KRR-B Bearings

GE25-XL-KRR-B Radial Insert Ball Bearings

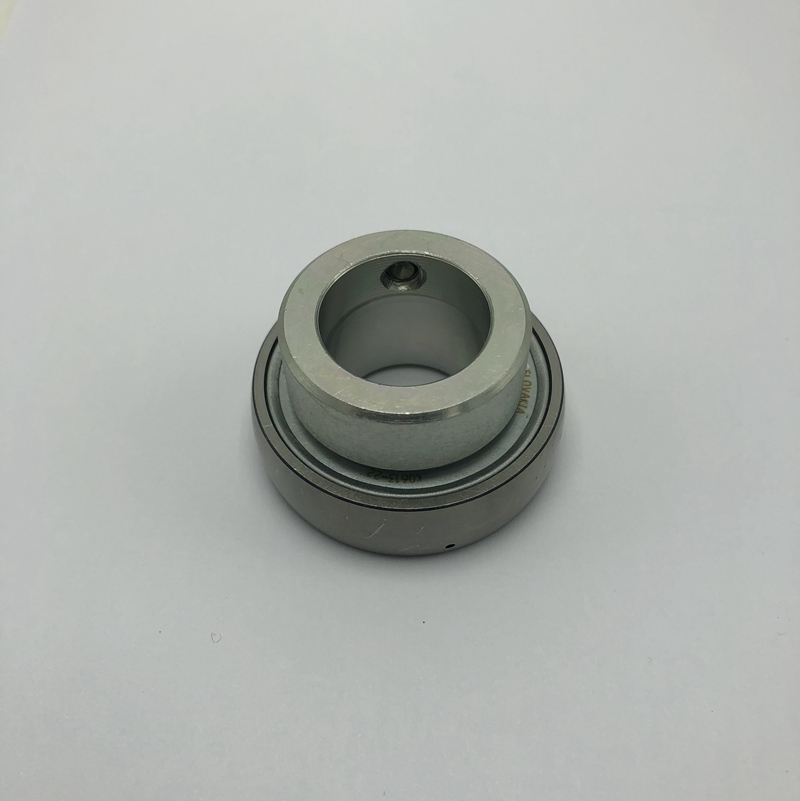

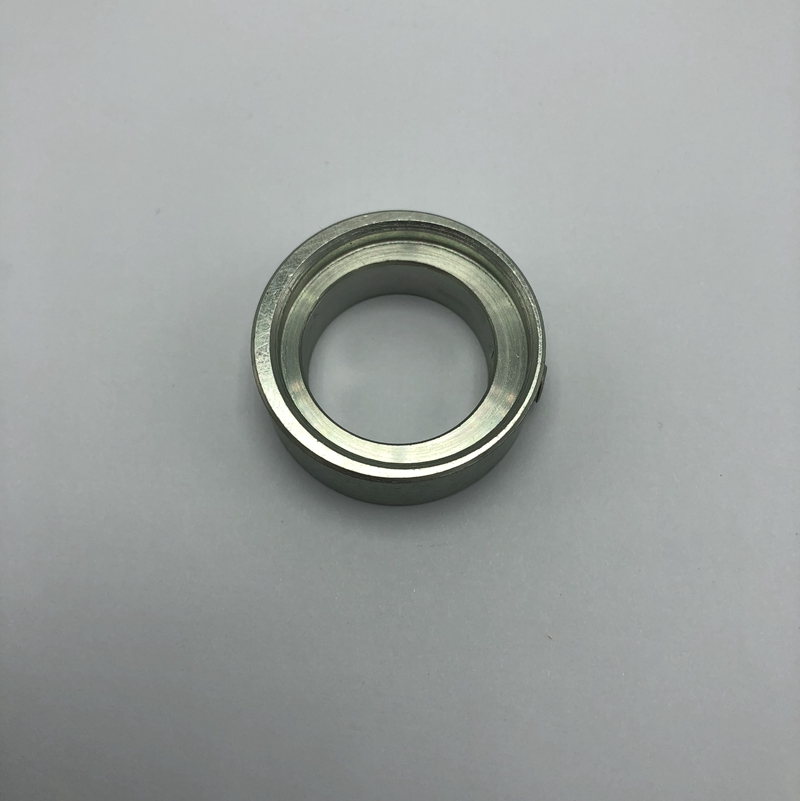

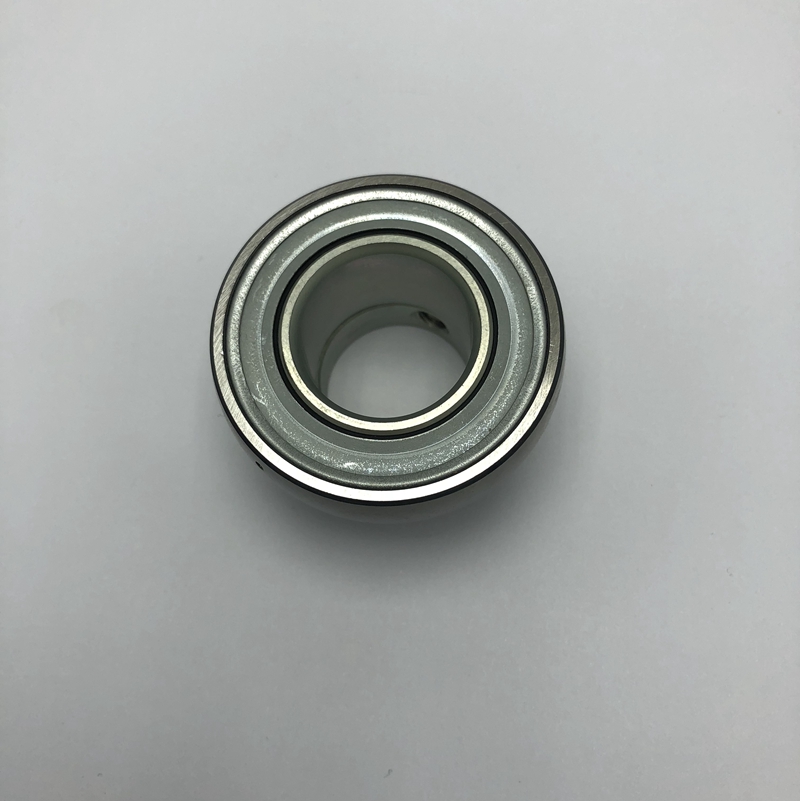

inset ball bearingGE25-XL-KRR-B with size 25*52*44.5mm ,this bearing are produce with Chrome steel material R seals on the both bearing sides ,and located with eccentric locking collar.

Details

Tags

Precision Insert Bearing GE25-XL-KRR-B Introduction:

d 25  mm
DSP 52  mm
B1 44,5  mm
B 34,9  mm
C 15  mm
C2 16,7  mm
Ca 4,1  mm
D1 42,5  mm
d1 33,8  mm
d3 max 37,5  mm
S 17,5  mm
W 3  mm
m(Mass) 0,25  kg
Cr(Basic dynamic load rating, radial) 14900  N
C0r(Basic static load rating, radial) 7800  N
Cur(Fatigue limit load, radial) 410  N
f0(Calculation factor) 13,8

We Can Provide Other Bearings Series:

Bearing Series For shaft diameter in mm Features
GRAE..-NPP-B 12-60mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RAE..-NPP-B 12-50mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RALE..-NPP-B 20-30mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RA..-NPP-B 5/8''-1 1/2'' Spherical outer ring,location by eccentric locking collar ,P seals on both sides,inch size bore
GE..-KRR-B 17-120 Spherical outer ring,location by eccentric locking collar ,R seals on both sides



GE-KRR-B Series Bearing List:

Bearing No. d DSP B1
mm mm mm
GE17-XL-KRR-B 17 40 37,4
GE20-XL-KRR-B 20 47 43,7
GE25-XL-KRR-B 25 52 44,5
GE30-XL-KRR-B 30 62 48,5
GE35-XL-KRR-B 35 72 51,3
GE40-XL-KRR-B 40 80 56,5
GE45-XL-KRR-B 45 85 56,5
GE50-XL-KRR-B 50 90 62,8
GE55-XL-KRR-B 55 100 71,4
GE60-XL-KRR-B 60 110 77,9
GE65-214-XL-KRR-B 65 125 66
GE70-XL-KRR-B 70 125 66
GE75-XL-KRR-B 75 130 67
GE80-XL-KRR-B 80 140 70,7
GE90-XL-KRR-B 90 160 69,5
GE100-XL-KRR-B 100 180 75
GE120-XL-KRR-B 120 215 81



If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.
