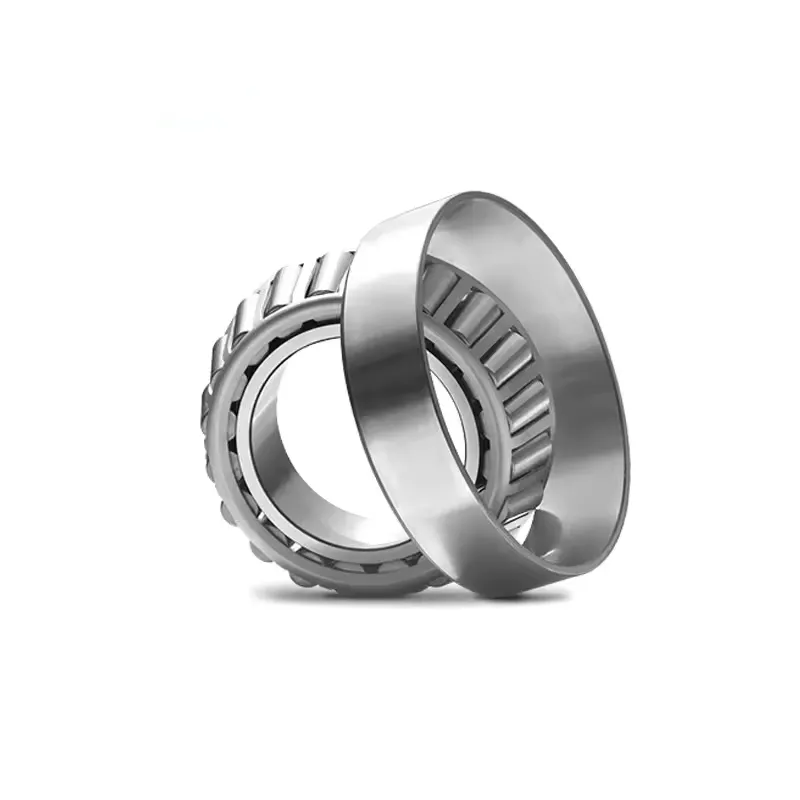

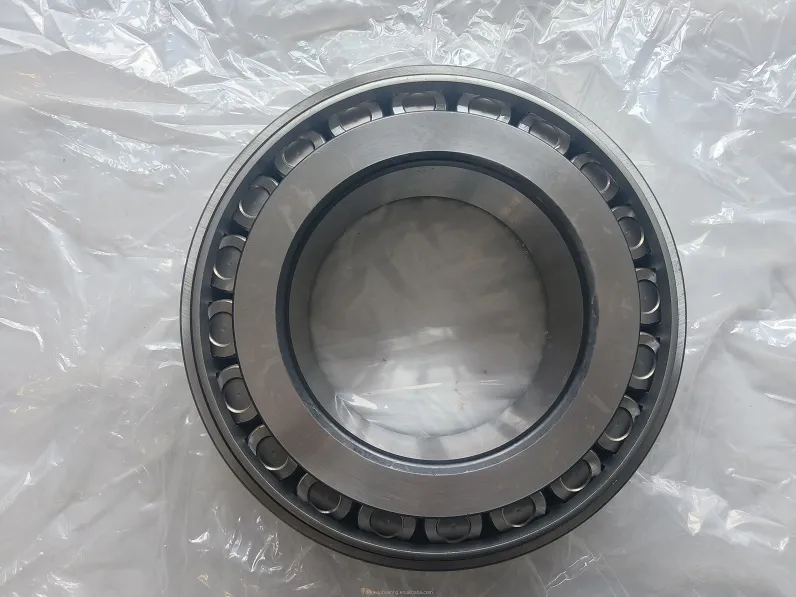

Name: 30226-XL High Quality Tapered Roller Bearing
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

30226-XL High Quality Tapered Roller Bearing

CONTACT NOW down load to pdf

Details

Tags

Tapered roller bearings 302, main dimensions to DIN ISO 355 / DIN 720, separable, adjusted or in pairs

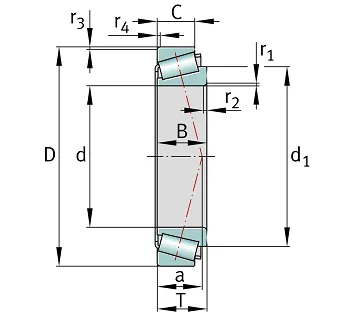

d	130 mm	Bore diameter
D	230 mm	Outside diameter
B	40 mm	Width, inner ring
C	34 mm	Width, outer ring
T	43,75 mm	Width, total
C_r	420.000 N	Basic dynamic load rating, radial
C_0r	470.000 N	Basic static load rating, radial
C_ur	64.000 N	Fatigue load limit, radial
n_G	3.700 1/min	Limiting speed
n_ϑr	2.290 1/min	Thermal speed rating
≈m	7,04 kg	Weight

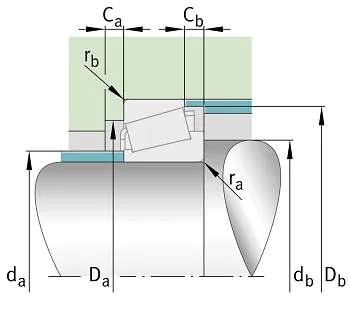

d_{a max}	152 mm	Maximum diameter of shaft shoulder
d_{b min}	144 mm	Minimum diameter of shaft shoulder
D_{a min}	203 mm	Minimum diameter of housing shoulder
D_{a max}	216 mm	Maximum diameter of housing shoulder
D_{b min}	217 mm	Minimum diameter of housing shoulder
C_{a min}	7 mm	Minimum axial space
C_{b min}	9,5 mm	Minimum axial space
r_{a max}	4 mm	Maximum fillet radius of shaft
r_{b max}	3 mm	Maximum fillet radius of housing
r_{1, 2 min}	4 mm	Minimum chamfer dimension of inner ring back face
r_{3, 4 min}	3 mm	Minimum chamfer dimension of outer ring back face
a	46 mm	Distance between the apexes of the pressure cones
d₁	174,4 mm	Guidance rib diameter of inner ring
T_min	-30 °C	Operating temperature min.
T_max	200 °C	Operating temperature max.
e	0,43	Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y
Y	1,38	Dynamic axial load factor
Y₀	0,76	Static axial load factor
