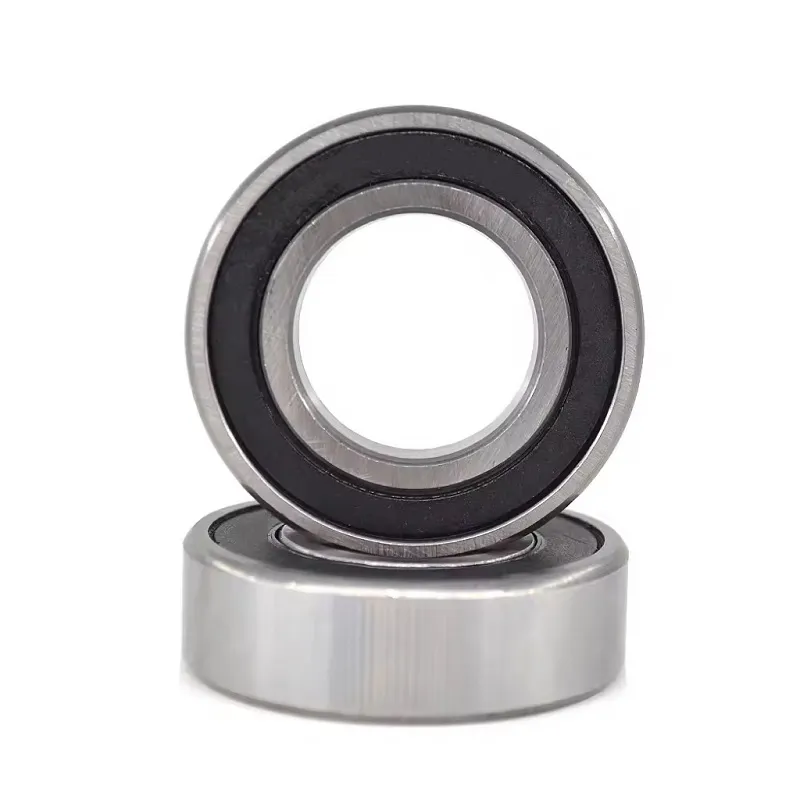

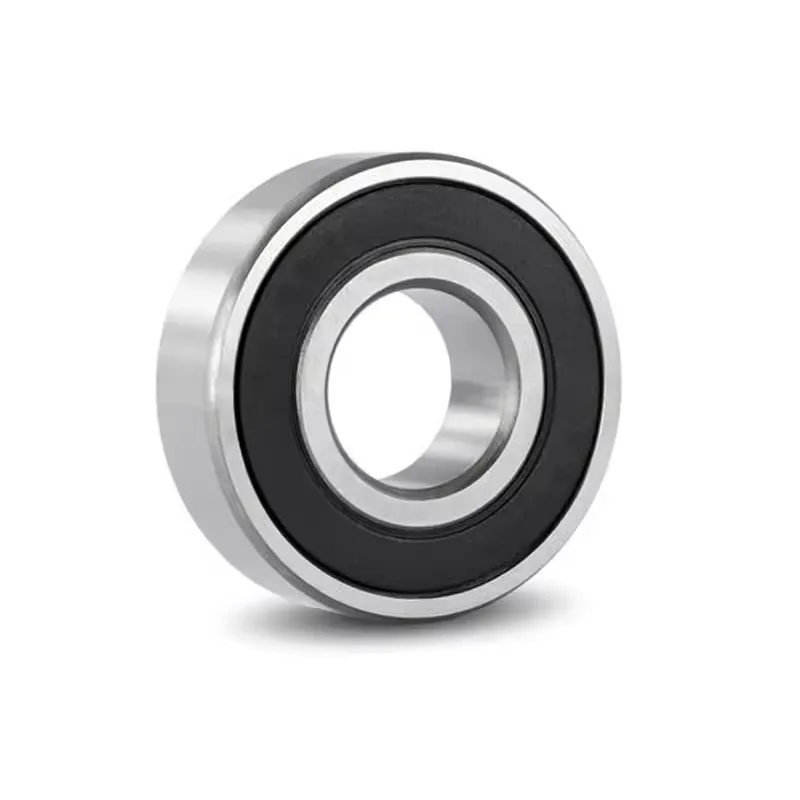

Name: 6221 High Quality Deep Groove Ball Bearing 105X190X36
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

6221 High Quality Deep Groove Ball Bearing 105X190X36

CONTACT NOW down load to pdf

Details

Tags

Deep groove ball bearing 62, single row, steel sheet metal cage

d	105 mm	Bore diameter
D	190 mm	Outside diameter
B	36 mm	Width
C_r	141.000 N	Basic dynamic load rating, radial
C_0r	105.000 N	Basic static load rating, radial
C_ur	5.800 N	Fatigue load limit, radial
n_G	4.750 1/min	Limiting speed
n_ϑr	4.650 1/min	Reference speed
≈m	3,88 kg	Weight
d_{a min}	117 mm	Minimum diameter shaft shoulder
D_{a max}	178 mm	Maximum diameter of housing shoulder
r_{a max}	2,1 mm	Maximum fillet radius
r_min	2,1 mm	Minimum chamfer dimension
D₁	163,28 mm	Shoulder diameter outer ring
d₁	131,9 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	150 °C	Operating temperature max.
f₀	14,4	Calculation factor
