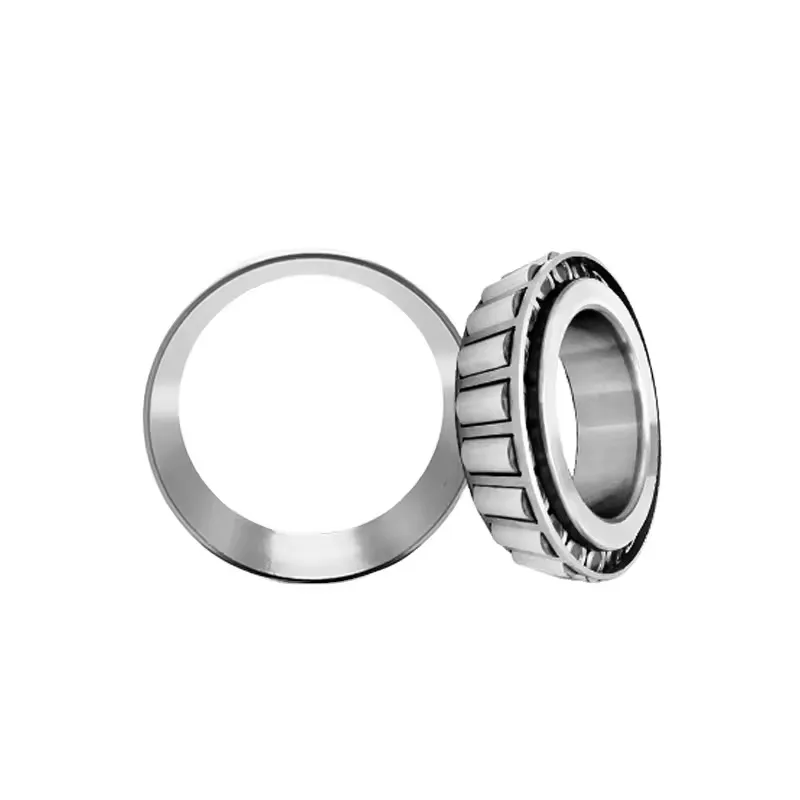

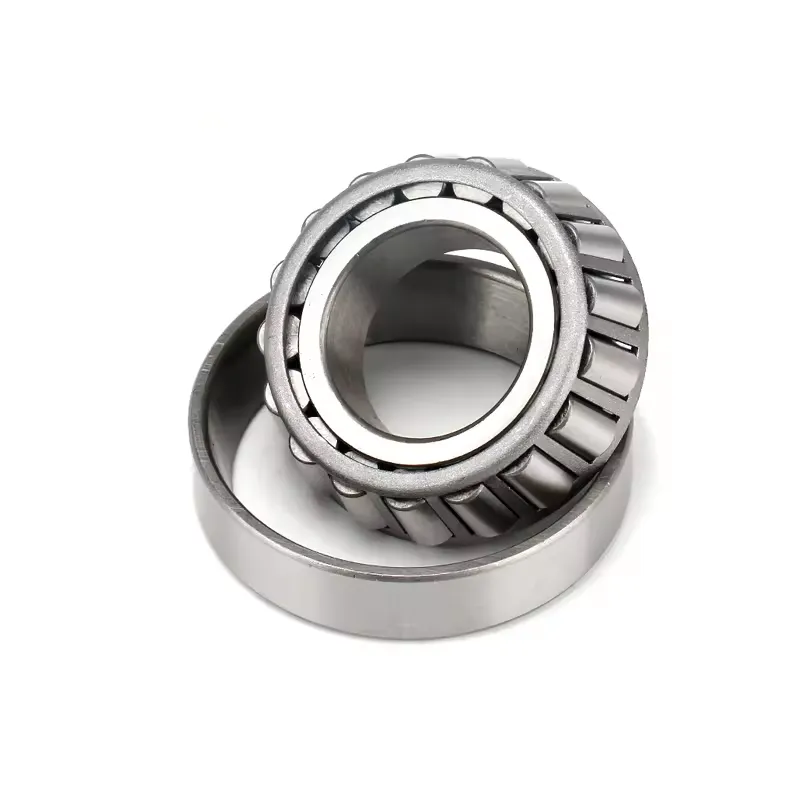

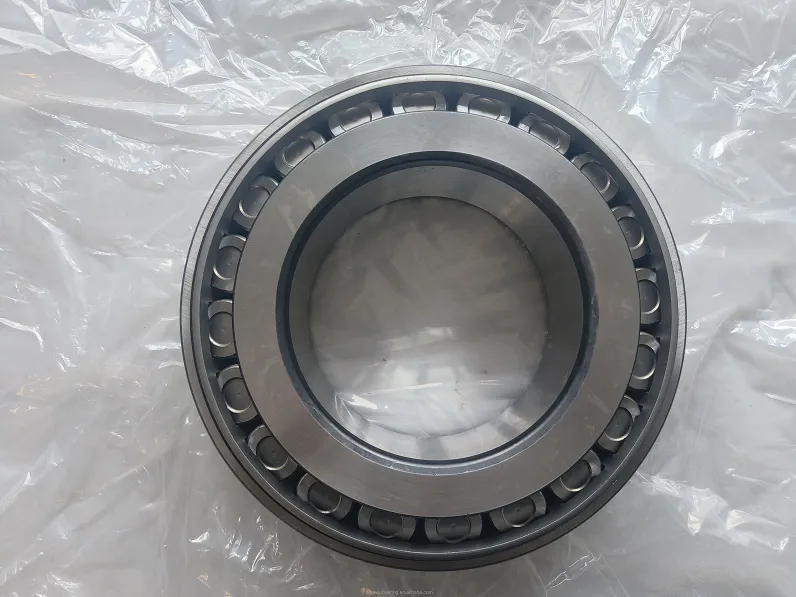

30305-A High Quality Tapered Roller Bearing

CONTACT NOW down load to pdf

Details

Tags

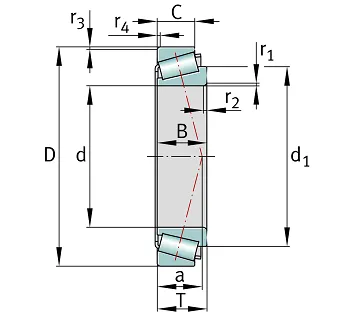

Tapered roller bearings 303, main dimensions to DIN ISO 355 / DIN 720, separable, adjusted or in pairs

d	25 mm	Bore diameter
D	62 mm	Outside diameter
B	17 mm	Width, inner ring
C	15 mm	Width, outer ring
T	18,25 mm	Width, total
C_r	47.000 N	Basic dynamic load rating, radial
C_0r	45.500 N	Basic static load rating, radial
C_ur	5.300 N	Fatigue load limit, radial
n_G	12.800 1/min	Limiting speed
n_ϑr	8.000 1/min	Thermal speed rating
≈m	267 g	Weight

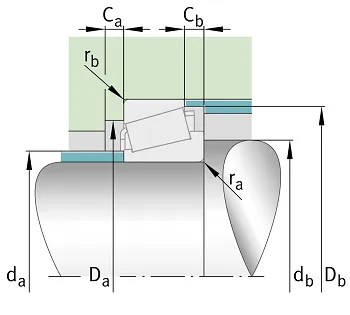

d_{a max}	34 mm	Maximum diameter of shaft shoulder
d_{b min}	32 mm	Minimum diameter of shaft shoulder
D_{a min}	54 mm	Minimum diameter of housing shoulder
D_{a max}	55 mm	Maximum diameter of housing shoulder
D_{b min}	57 mm	Minimum diameter of housing shoulder
C_{a min}	2 mm	Minimum axial space
C_{b min}	3 mm	Minimum axial space
r_{a max}	1,5 mm	Maximum fillet radius of shaft
r_{b max}	1,5 mm	Maximum fillet radius of housing
r_{1, 2 min}	1,5 mm	Minimum chamfer dimension of inner ring back face
r_{3, 4 min}	1,5 mm	Minimum chamfer dimension of outer ring back face
a	13 mm	Distance between the apexes of the pressure cones
d₁	42,3 mm	Guidance rib diameter of inner ring
T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
e	0,3	Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y
Y	2	Dynamic axial load factor
Y₀	1,1	Static axial load factor
