Flanged ball bearing unit with composite or cast metal housing
  • Flanged ball bearing unit with composite or cast metal housing

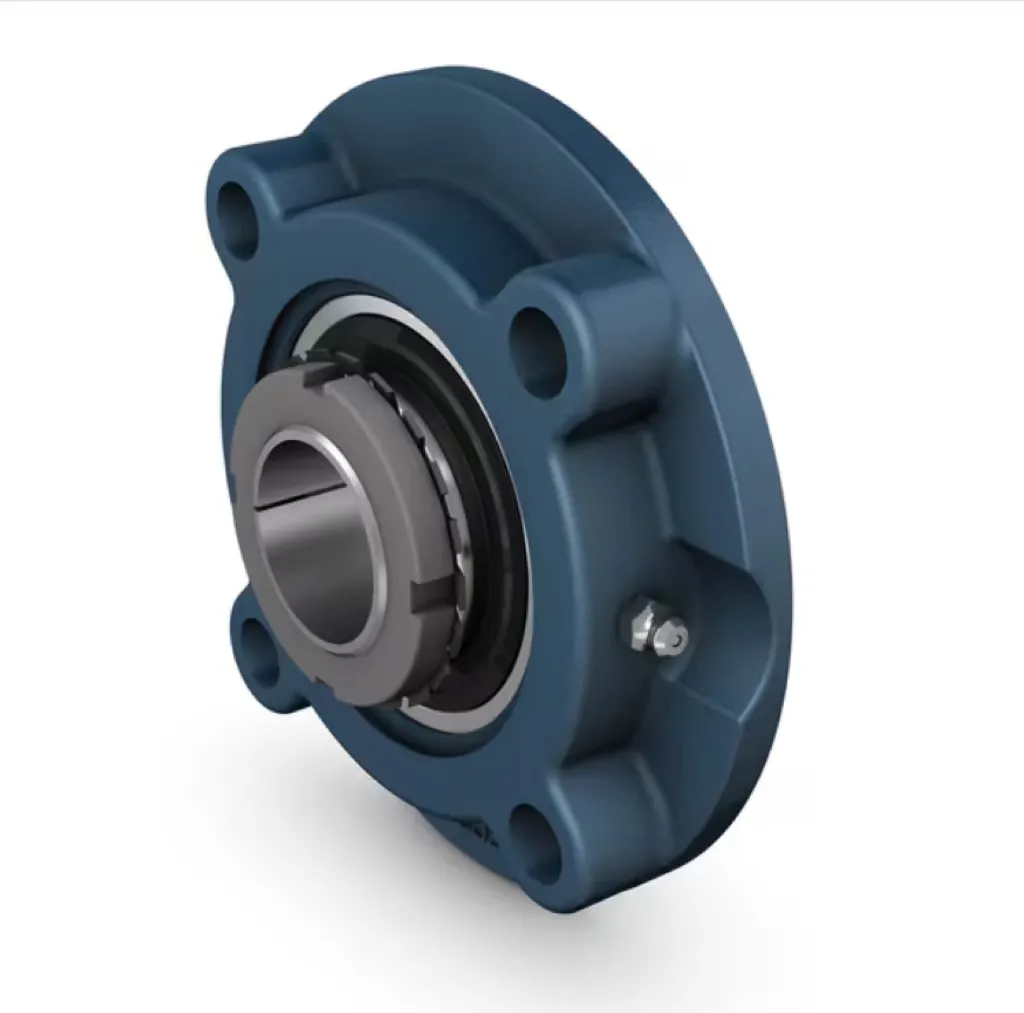

UKFC213 Flanged Housing Bearing Unit UKFC 200 Series Bearing

down load to pdf

Details

Tags

Flanged ball bearing unit with composite or cast metal housing



UKFC213 Flanged Housing Bearing Unit UKFC 200 Series BearingUKFC213 Flanged Housing Bearing Unit UKFC 200 Series Bearing

d
60 mm
 Bore diameter
H
205 mm
 Height flange
U
51,2 mm
 Total height unit
Cr
61.000 N
 Basic dynamic load rating, radial
C0r
40.000 N
 Basic static load rating, radial
Cur
2.090 N
 Fatigue load limit, radial
≈m
5,63 kg
 Weight
J
170 mm
 Pitch circle diameter (holes)
N
19 mm
 Fixing bore
N1
120,2 mm
 Distance fixing bore
T1
14 mm
 Height spigot
Z
145 mm
 Diameter spigot

h8
 Diameter spigot clearance
n
4
 Number of screwing holes
A
36 mm
 Height housing
A1
15 mm
 Thickness of flange
A2
16 mm
 Distance raceway
B
41 mm
 Width
B1
65 mm
 Locking collar total width
d3
85 mm
 Outside diameter eccentric locking collar
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
