UKF215 Pillow Housings Pillow Block Bearing

down load to pdf

Details

Tags

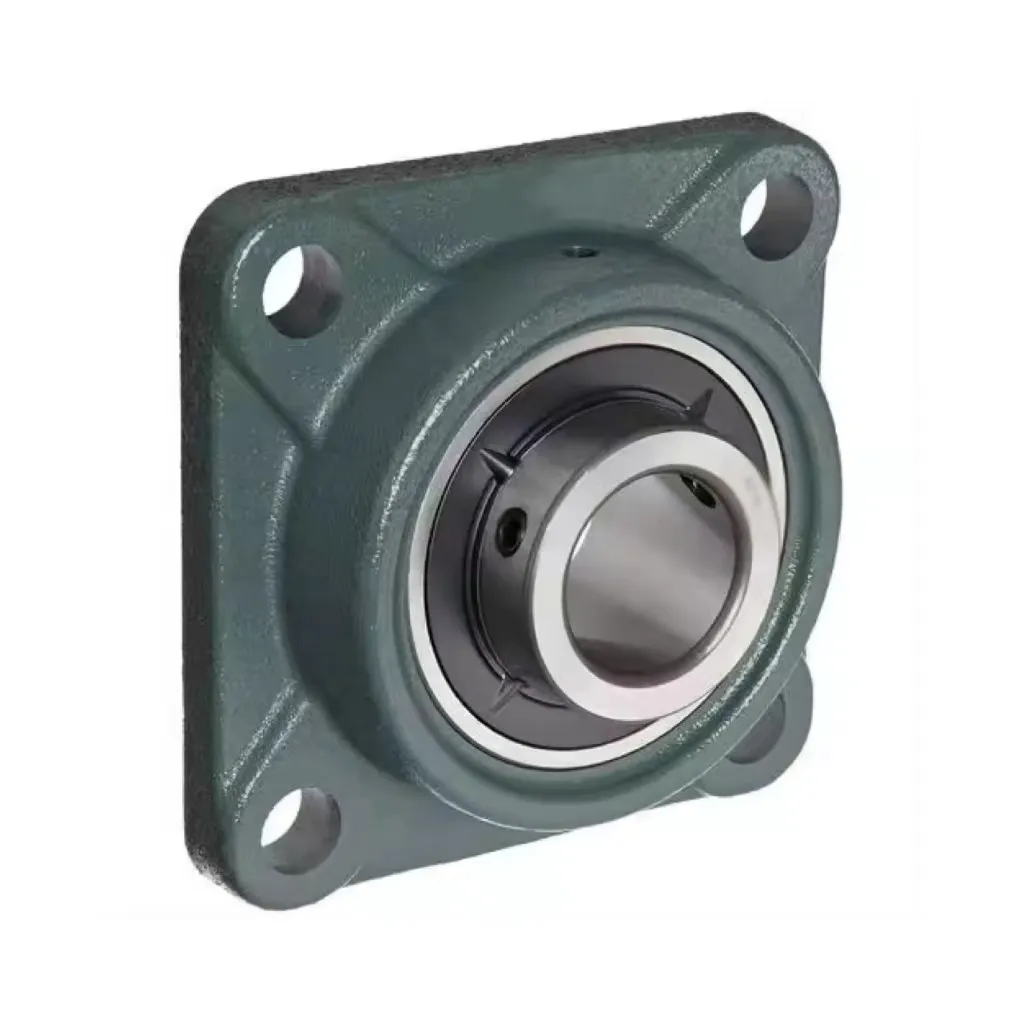

UKF215 Pillow Housings Pillow Block BearingUKF215 Pillow Housings Pillow Block Bearing

d
65 mm
 Bore diameter
L
200 mm
 Flange width
Cr
66.000 N
 Basic dynamic load rating, radial
C0r
44.500 N
 Basic static load rating, radial
Cur
2.300 N
 Fatigue load limit, radial
≈m
7,13 kg
 Weight
J
159 mm
 Distance fixing bore
N
19 mm
 Fixing bore
n
4
 Number of screwing holes
A
56 mm
 Height housing
A1
24 mm
 Thickness of flange
A2
34 mm
 Distance raceway
B
44,5 mm
 Width
B1
73 mm
 Locking collar total width
d3
98 mm
 Outside diameter eccentric locking collar
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
