UKF207
  • UKF207

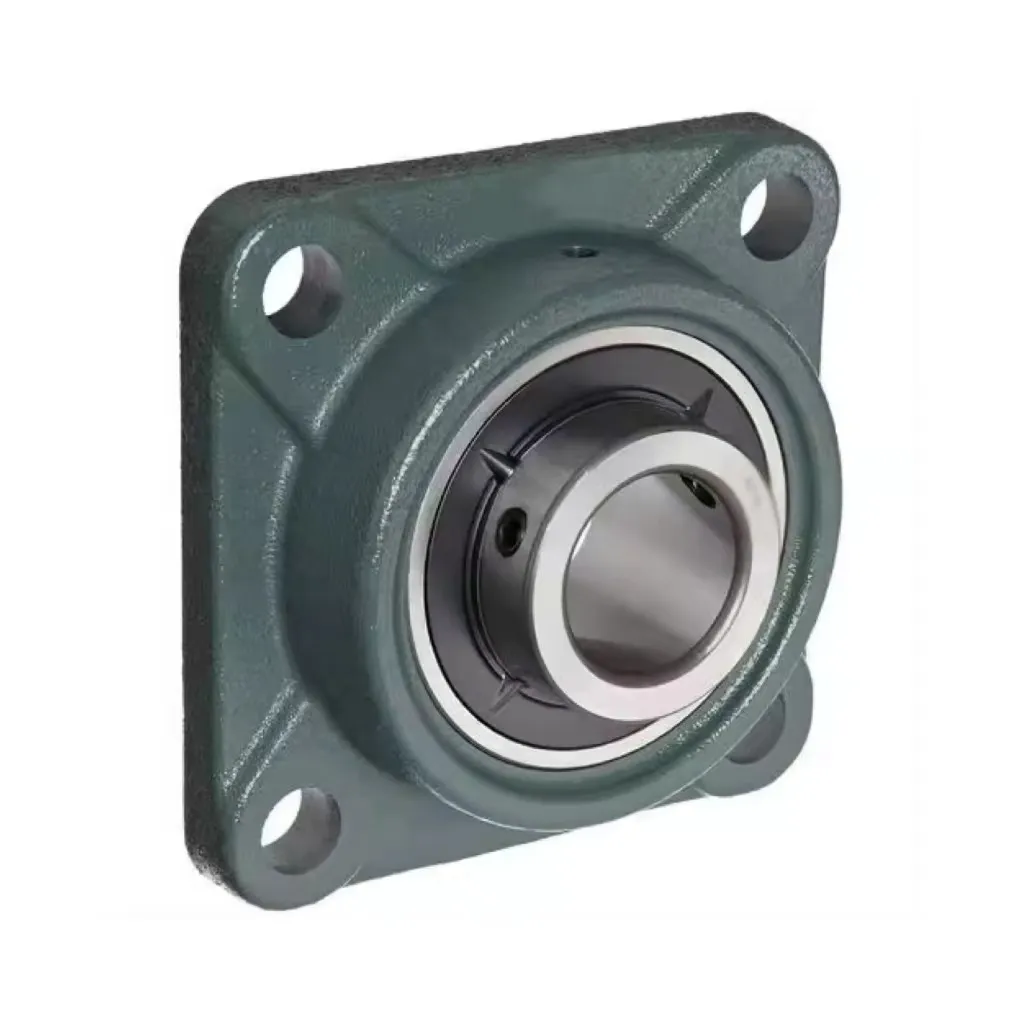

UKF210 Pillow Housings Pillow Block Bearing

down load to pdf

Details

Tags

d
45 mm
 Bore diameter
L
143 mm
 Flange width
Cr
37,500 N
 Basic dynamic load rating, radial
C0r
23,200 N
 Basic static load rating, radial
Cur
1,210 N
 Fatigue load limit, radial
≈m
2.654 kg
 Weight
J
111 mm
 Distance fixing bore
N
16 mm
 Fixing bore
n
4
 Number of screwing holes
A
40 mm
 Height housing
A1
18 mm
 Thickness of flange
A2
22 mm
 Distance raceway
B
34 mm
 Width
B1
55 mm
 Locking collar total width
d3
70 mm
 Outside diameter eccentric locking collar
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
