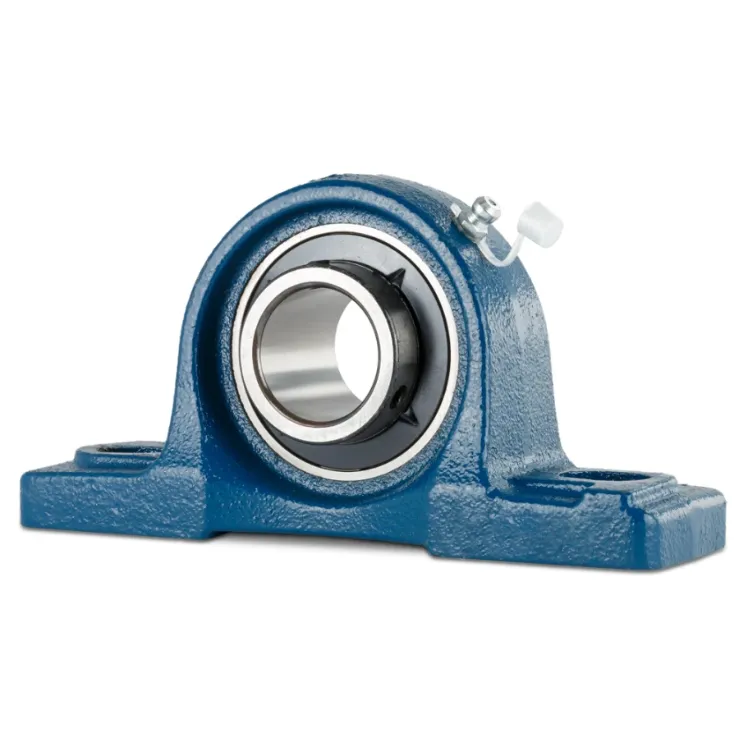

Pillow block bearings are housing combined with radial insert bearing. Most of the outer spherical bearings are made of a spherical surface The structure of bearing unit are various, and the versatility and interchangeability are good.
Housing bearings are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments. There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).
Below Here is Mounted Bearing Units No. For Your Reference :
Unit No. |
Shaft Dia |
Dimensions (mm) |
Bolt Size |
Weight |
|||||||||||
d |
H |
L |
J |
A |
N |
N1 |
H1 |
Ho |
B |
S |
A3 |
(kg) |
|||
(in) |
(mm) |
||||||||||||||
UCWP201 |
|
12 |
30.2 |
125 |
95 |
32 |
13 |
18 |
13 |
57 |
27.4 |
11.5 |
- |
M10 |
0.72 |
UCWP202 |
|
15 |
30.2 |
125 |
95 |
32 |
13 |
18 |
13 |
57 |
27.4 |
11.5 |
- |
M10 |
0.66 |
UCWP203 |
|
17 |
30.2 |
125 |
95 |
32 |
13 |
18 |
13 |
57 |
27.4 |
11.5 |
- |
M10 |
0.66 |
UCP201 |
|
12 |
30.2 |
127 |
95 |
38 |
13 |
19 |
14 |
61 |
31 |
12.7 |
- |
M10 |
0.76 |
UCP201-8 |
1/2 |
|
30.2 |
127 |
95 |
38 |
13 |
19 |
14 |
61 |
31 |
12.7 |
- |
M10 |
0.76 |
UCP202 |
|
15 |
30.2 |
127 |
95 |
38 |
13 |
19 |
14 |
61 |
31 |
12.7 |
- |
M10 |
0.74 |
UCP202-9 |
9/16 |
|
30.2 |
127 |
95 |
38 |
13 |
19 |
14 |
61 |
31 |
12.7 |
- |
M10 |
0.74 |
UCP202-10 |
5/8 |
|
30.2 |
127 |
95 |
38 |
13 |
19 |
14 |
61 |
31 |
12.7 |
- |
M10 |
0.74 |
UCP203 |
|
17 |
30.2 |
127 |
95 |
38 |
13 |
19 |
14 |
61 |
31 |
12.7 |
- |
M10 |
0.72 |
UCP203-11 |
11/16 |
|
30.2 |
127 |
95 |
38 |
13 |
19 |
14 |
61 |
31 |
12.7 |
- |
M10 |
0.72 |
UCP204 |
|
20 |
33.3 |
127 |
95 |
38 |
13 |
19 |
14 |
64 |
31 |
12.7 |
46.4 |
M10 |
0.70 |
UCP204-12 |
3/4 |
|
33.3 |
127 |
95 |
38 |
13 |
19 |
14 |
64 |
31 |
12.7 |
46.4 |
M10 |
0.70 |
UCP205 |
|
25 |
36.5 |
140 |
105 |
38 |
13 |
19 |
15 |
71 |
34.1 |
14.3 |
48 |
M10 |
0.76 |
UCP205-14 |
7/8 |
|
36.5 |
140 |
105 |
38 |
13 |
19 |
15 |
71 |
34.1 |
14.3 |
48 |
M10 |
0.76 |
UCP205-15 |
15/16 |
|
36.5 |
140 |
105 |
38 |
13 |
19 |
15 |
71 |
34.1 |
14.3 |
48 |
M10 |
0.76 |
UCP205-16 |
1 |
|
36.5 |
140 |
105 |
38 |
13 |
19 |
15 |
71 |
34.1 |
14.3 |
48 |
M10 |
0.76 |
UCP206 |
|
30 |
42.9 |
160 |
121 |
44 |
17 |
21 |
16 |
82 |
38.1 |
15.9 |
52 |
M14 |
1.25 |
UCP206-17 |
1-1/16 |
|
42.9 |
160 |
121 |
44 |
17 |
21 |
16 |
82 |
38.1 |
15.9 |
52 |
M14 |
1.25 |
UCP206-19 |
1-3/16 |
|
42.9 |
160 |
121 |
44 |
17 |
21 |
16 |
82 |
38.1 |
15.9 |
52 |
M14 |
1.25 |
