UCP205 Cast Iron Pillow Block Bearing Housing

UCP205-16 1" Cast Iron Pillow Block Bearing Housing

UCP205-16 with inner standard size 1 inch ,the bearing unit are produced with Chrome steel Gcr15 and cast iron housing and locked by setscrew.

CONTACT NOW down load to pdf

Details

Tags

Pillow block bearings are housing combined with radial insert bearing. Most of the outer spherical bearings are made of a spherical surface The structure of bearing unit are various, and the versatility and interchangeability are good.

Bearing Unit UCP205-16 Specification :
Insert Bearing material :Chrome steel Gcr15 or stainless steel
Housing material : Cast iron

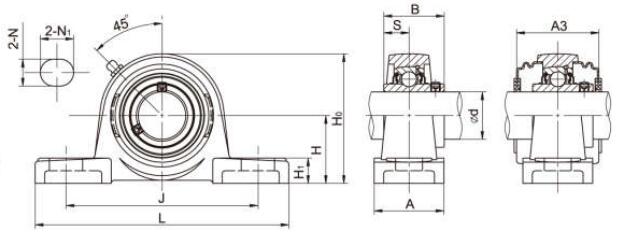

Dimension:
Shaft Dia (d):1 inch
Height (H):36.5mm
Length (L):140mm
Bolt Size:M10
Weight :0.76 kg
