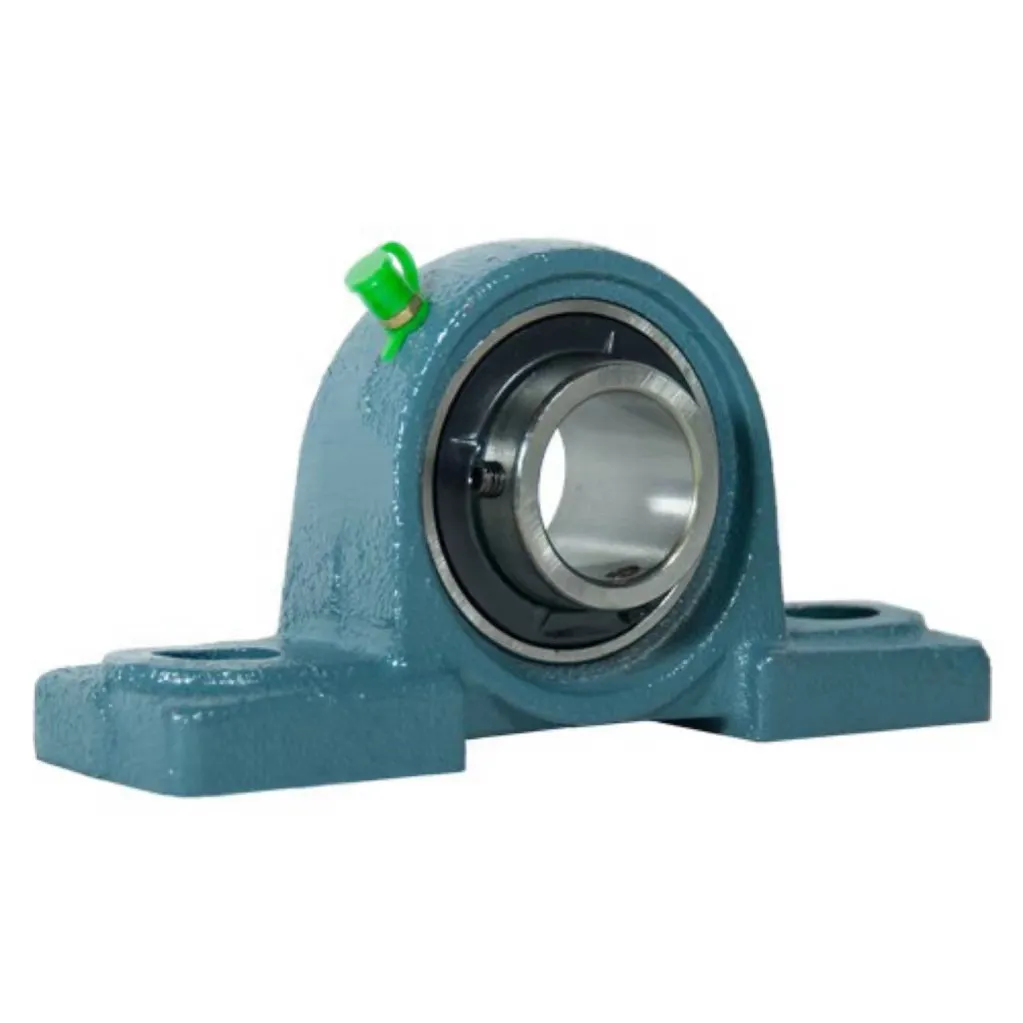

UCP203 Pillow Block Housing Unit Bearings

Details

Tags

Pillow block bearings are housing combined with radial insert bearing. Most of the outer spherical bearings are made of a spherical surface The structure of bearing unit are various, and the versatility and interchangeability are good.

China Bearing housing are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments. There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).

Below Here is Mounted Radial Bearing Units No. For Your Reference :

Unit No.	Shaft Dia		Dimensions (mm)											Bolt Size (mm)	Weight
	d		H	L	J	A	N	N1	H1	Ho	B	S	A3		(kg)
	(in)	(mm)	H	L	J	A	N	N1	H1	Ho	B	S	A3		(kg)
UCWP201		12	30.2	125	95	32	13	18	13	57	27.4	11.5	-	M10	0.72
UCWP202		15	30.2	125	95	32	13	18	13	57	27.4	11.5	-	M10	0.66
UCWP203		17	30.2	125	95	32	13	18	13	57	27.4	11.5	-	M10	0.66
UCP201		12	30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.76
UCP201-8	1/2		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.76
UCP202		15	30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.74
UCP202-9	9/16		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.74
UCP202-10	5/8		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.74
UCP203		17	30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.72
UCP203-11	11/16		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.72
UCP204		20	33.3	127	95	38	13	19	14	64	31	12.7	46.4	M10	0.70
UCP204-12	3/4		33.3	127	95	38	13	19	14	64	31	12.7	46.4	M10	0.70
UCP205		25	36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP205-14	7/8		36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP205-15	15/16		36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP205-16	1		36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP206		30	42.9	160	121	44	17	21	16	82	38.1	15.9	52	M14	1.25
UCP206-17	1-1/16		42.9	160	121	44	17	21	16	82	38.1	15.9	52	M14	1.25
UCP206-19	1-3/16		42.9	160	121	44	17	21	16	82	38.1	15.9	52	M14	1.25
