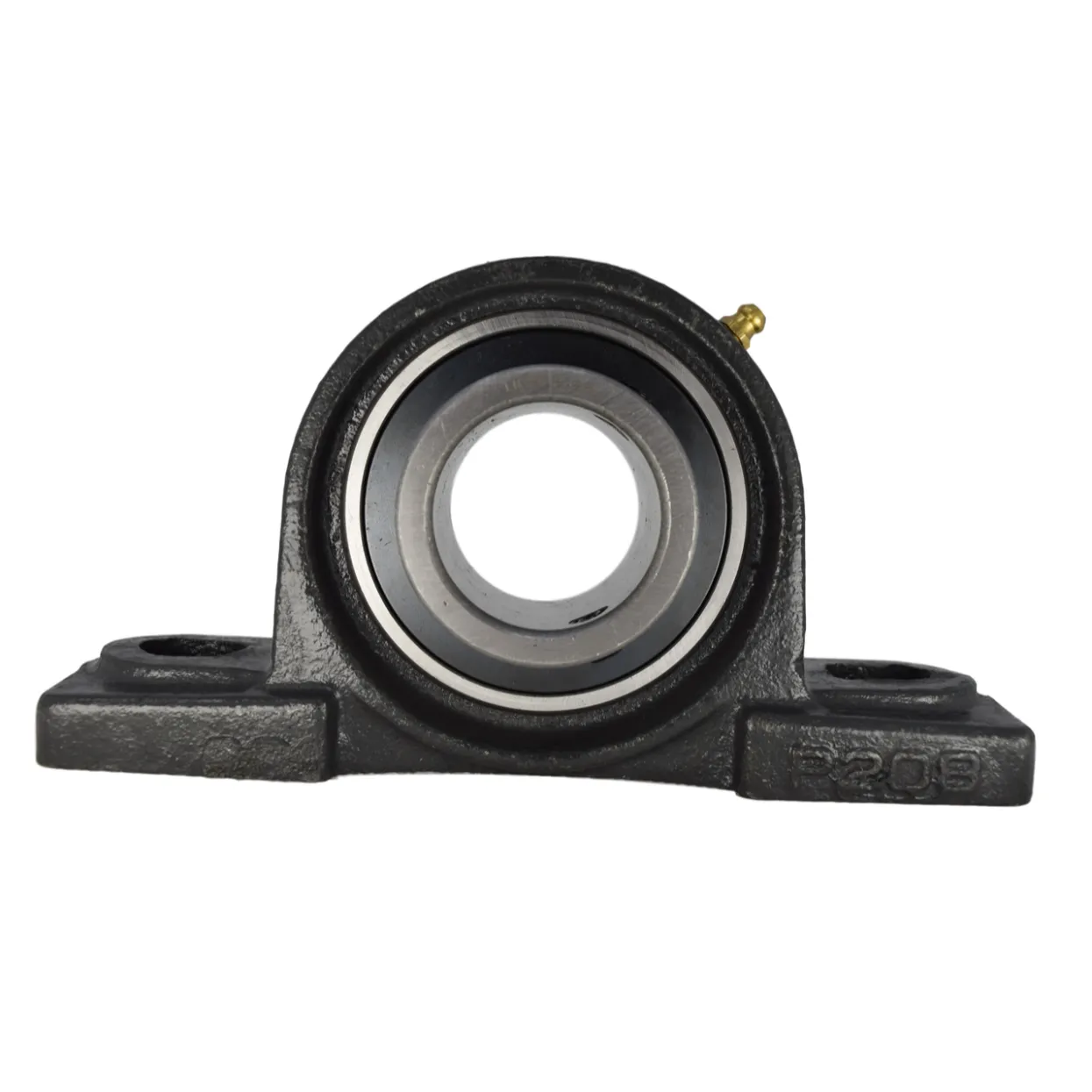

High quality 1-9/16" pillow block bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
Basic Dimensions |
||||
Shaft Size |
Shaft Height |
Bolt Distance |
Overall Length |
Overall Height |
1-9/16" |
1.94" |
5.35" |
7.25" |
3.86" |
Click Above for Full Dimensions
INTERCHANGE
AMI: UCP 208-25
Browning: VPS-225
Dodge: P2B-SC-109
Fafnir: RASC-1 9/16
Fafnir: YAS-1 9/16
Link-Belt: P3-U225N
Link-Belt: P3-Y225N
NSK: USP208-25S
NTN: UCP208-109T
Peer: FHSP208-25G
RHP: NP-1 9/16
Sealmaster: NP-25
