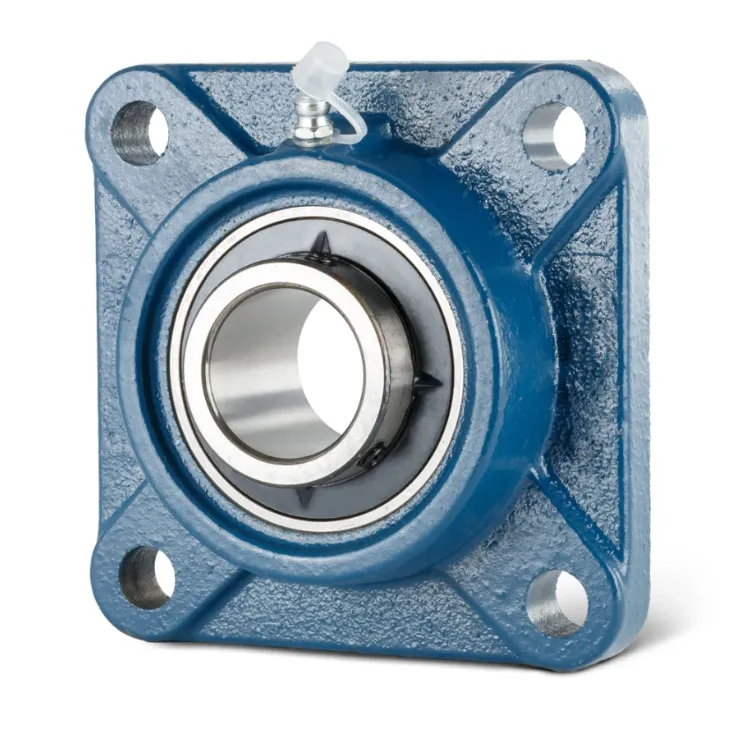

UCF217 Flange Housing Square Bearing Unit

Details

Tags

d
85 mm
Bore diameter
L
220 mm
Flange width
U
87,6 mm
Total height unit
Cr
88.000 N
Basic dynamic load rating, radial
C0r
64.000 N
Basic static load rating, radial
Cur
2.490 N
Fatigue load limit, radial
≈m
9,1 kg
Weight

J
175 mm
Distance fixing bore
N
23 mm
Fixing bore
N1
175 mm
Distance fixing bore
n
4
Number of screwing holes
A
63 mm
Height housing
A1
26 mm
Thickness of flange
A2
36 mm
Distance raceway
B
87,6 mm
Width
Q
M6
Connection thread for lubrication
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.
