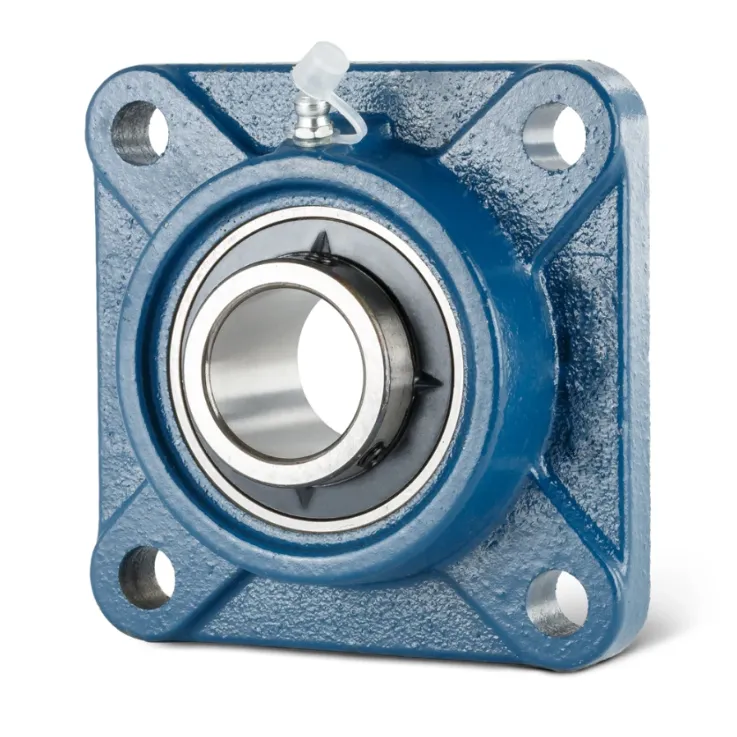

UCF214 Cast Iron Flange Housing Square Bearing Unit

Details

Tags

d
70 mm
Bore diameter
L
193 mm
Flange width
U
75,4 mm
Total height unit
Cr
66.000 N
Basic dynamic load rating, radial
C0r
44.000 N
Basic static load rating, radial
Cur
1.870 N
Fatigue load limit, radial
≈m
5,92 kg
Weight

J
152 mm
Distance fixing bore
N
19 mm
Fixing bore
N1
152 mm
Distance fixing bore
n
4
Number of screwing holes
A
54 mm
Height housing
A1
24 mm
Thickness of flange
A2
31 mm
Distance raceway
B
75,4 mm
Width
Q
M6
Connection thread for lubrication
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.
