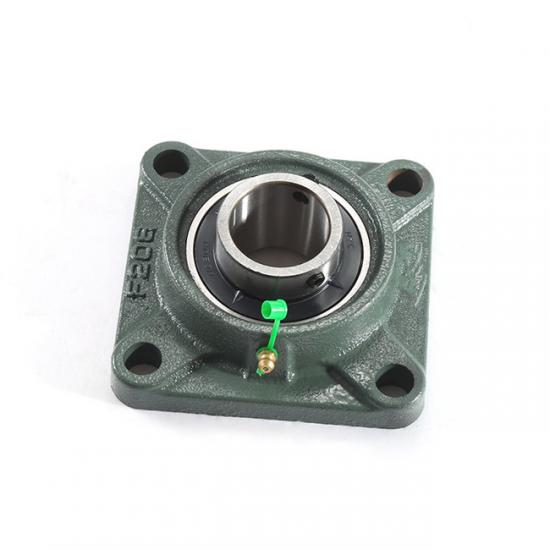

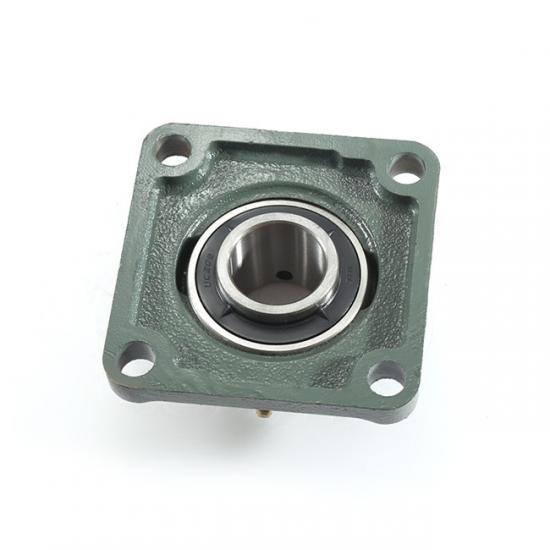

UCF208 Square Flange Pillow Block Bearing

40 mm UCF208 Bearing with inner standard size 40mm ,four-bolt flanged housing units ,square design ,cast iron ,grub scress in inner ring ,RSR seal.

CONTACT NOW down load to pdf

Details

Tags

They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

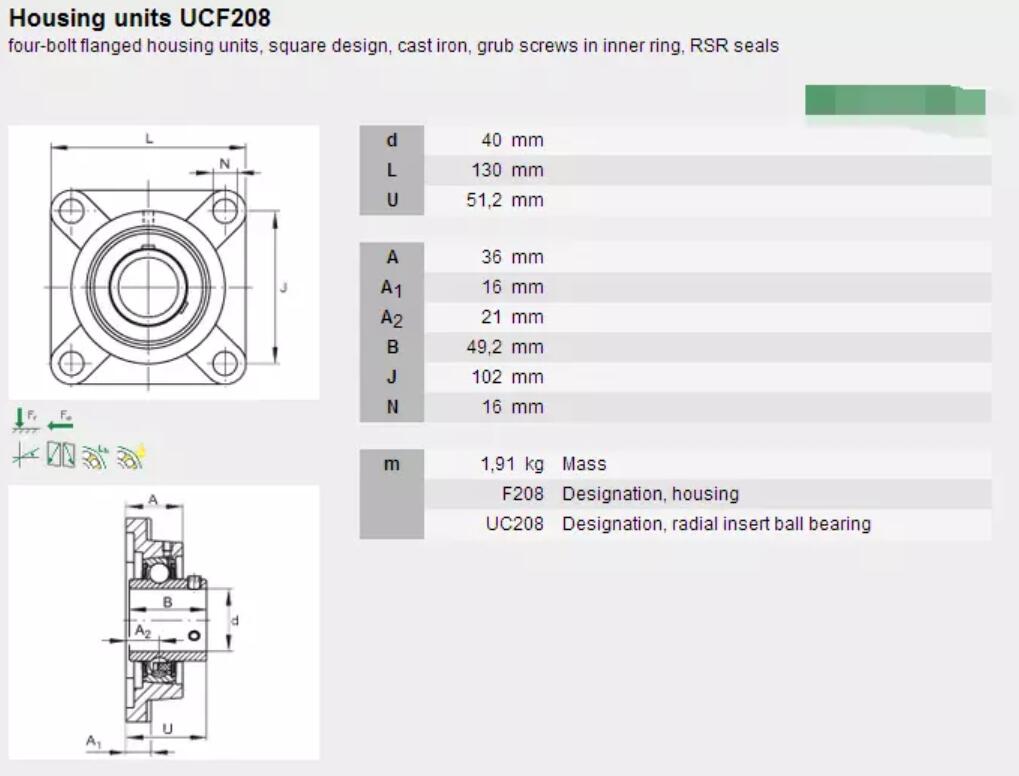

Pillow Bearing UCF208 Specification:
Bearing UCF208 with four -bolt flanged housing units,square design,cast iron material ,with grub screw in inner ring ,RSR seals.
