UCF207 Cast Iron Flange Housing Square Bearing Unit

down load to pdf

Details

Tags

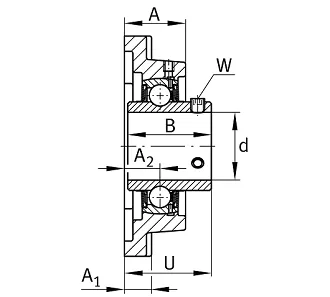

UCF207 Cast Iron Flange Housing Square Bearing Unit

d
35 mm
 Bore diameter
L
117 mm
 Flange width
U
44,4 mm
 Total height unit
Cr
25.500 N
 Basic dynamic load rating, radial
C0r
15.300 N
 Basic static load rating, radial
Cur
650 N
 Fatigue load limit, radial
≈m
1,524 kg
 Weight

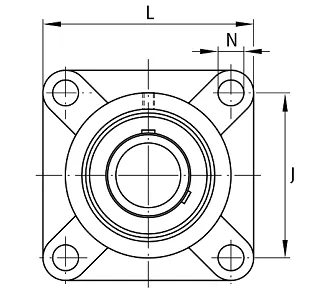

UCF207 Cast Iron Flange Housing Square Bearing Unit

J
92 mm
 Distance fixing bore
N
14 mm
 Fixing bore
N1
92 mm
 Distance fixing bore
n
4
 Number of screwing holes
A
34 mm
 Height housing
A1
16 mm
 Thickness of flange
A2
19 mm
 Distance raceway
B
42,9 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
