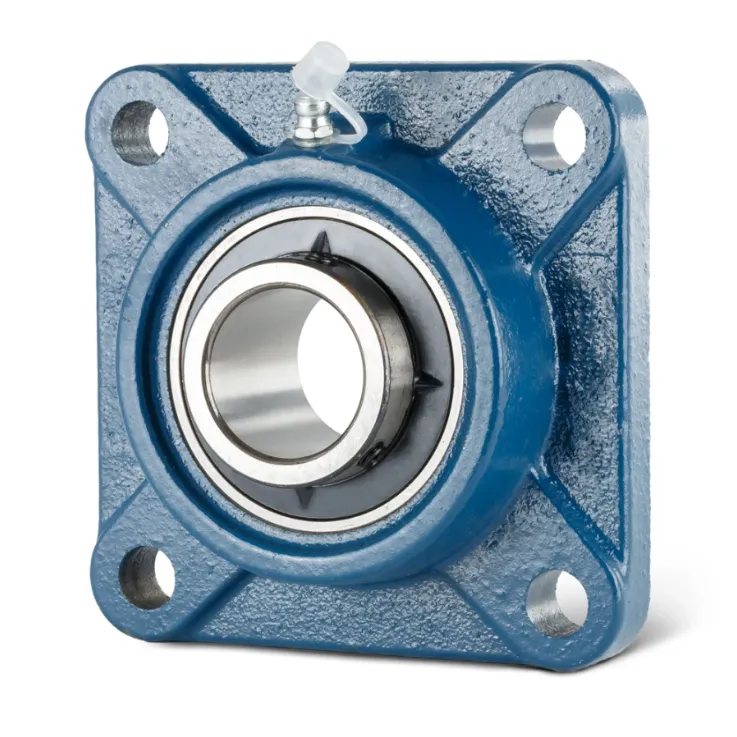

UCF206-18 Flange Housing Square Bearing Unit

Details

Tags

High quality 1-1/8" four bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.



Click Above for Full Dimensions



d
28,575 mm
Bore diameter
L
108 mm
Flange width
U
40,2 mm
Total height unit
Cr
20.700 N
Basic dynamic load rating, radial
C0r
11.300 N
Basic static load rating, radial
Cur
590 N
Fatigue load limit, radial
≈m
1,118 kg
Weight
J
83 mm
Distance fixing bore
N
12 mm
Fixing bore
N1
83 mm
Distance fixing bore
n
4
Number of screwing holes
A
31 mm
Height housing
A1
14 mm
Thickness of flange
A2
18 mm
Distance raceway
B
38,1 mm
Width
Q
M6
Connection thread for lubrication
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.



INTERCHANGES
AMI: UCF206-18
Browning: VF4S-218
Dodge: F4B-SC-018
Fafnir: RCJC-1-1/8
Fafnir: YCJ-1-1/8
Link-Belt: F3-U218N
NSK: UCF206-18S
NTN: UCF206-102T
Peer: FHSFJ206-18G
RHP: SF-1-1/8
Sealmaster: SF-1-1/8
SKF: FY-1-1/8-TM
