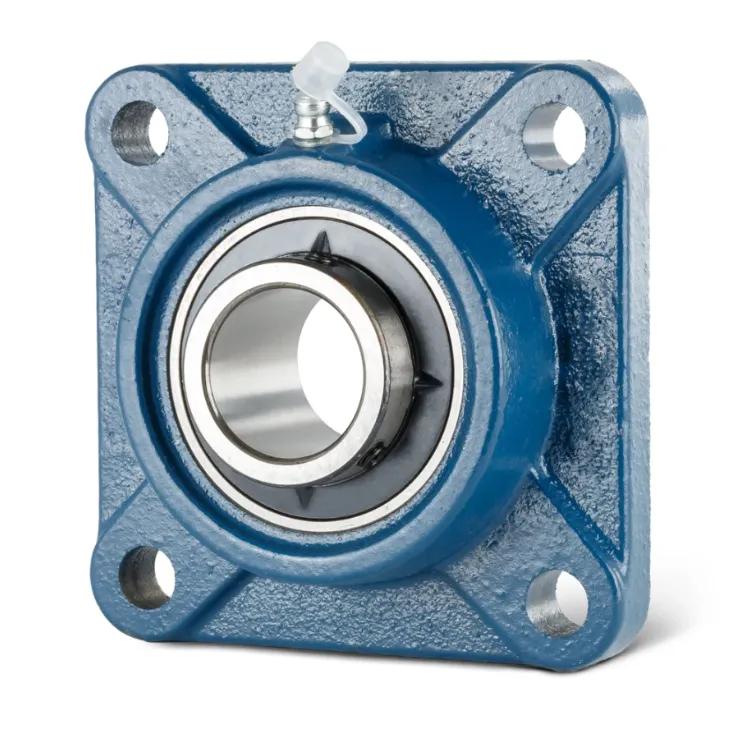

UCF205-14 Flange Housing Square Bearing Unit

Details

Tags

d
22,225 mm
Bore diameter
L
95 mm
Flange width
U
35,8 mm
Total height unit
Cr
14.900 N
Basic dynamic load rating, radial
C0r
7.800 N
Basic static load rating, radial
Cur
335 N
Fatigue load limit, radial
≈m
0,87 kg
Weight
J
70 mm
Distance fixing bore
N
12 mm
Fixing bore
N1
70 mm
Distance fixing bore
n
4
Number of screwing holes
A
27 mm
Height housing
A1
14 mm
Thickness of flange
A2
16 mm
Distance raceway
B
34,1 mm
Width
Q
M6
Connection thread for lubrication
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.
