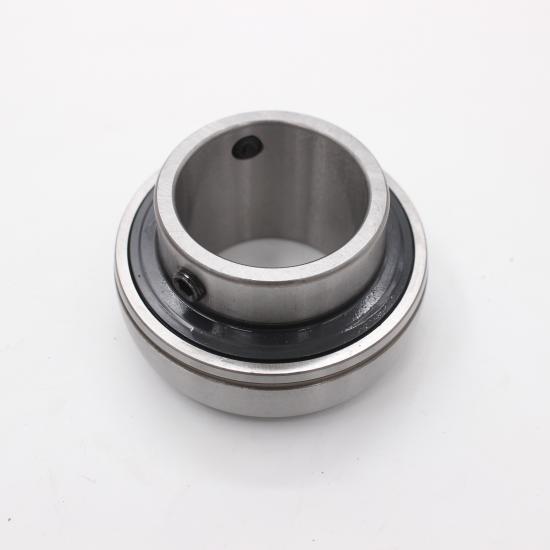

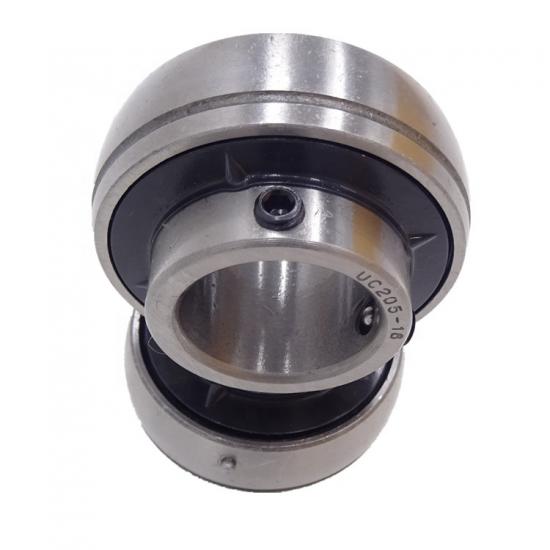

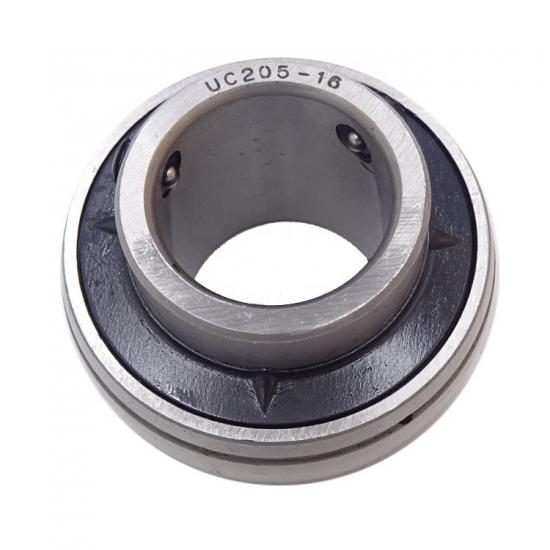

UC205-16 Insert Ball Bearing
  • UC205-16 Insert Ball Bearing
  • UC205-16 Bearing
  • UC205-16

UC205 16 Insert Ball Bearing

1.0000 inner diameter* 2.0472 in Outer diameter *1.3390 Width UC205-16 insert bearings are produce with round bore ,and set screw.

Details

Tags

1" UC205-16 Mounted Bearing Description:



Round bore type
Inner Diameter: 1" inch(25.4mm)
Outer Diameter: 52mm
Inner Ring Width: 34.1mm
Outer Ring Width: 16mm
Material :Chrome steel Gcr15



Dynamic load rating Cr: 13967 N
Static load rating Cor: 7784 N



OEM Number :VS-216,INS-SC-100,GY1100KRRB,YW250-1,UC205-16,UG216NL,UC205-100D1,YAR205-100,2-1 INSERT
