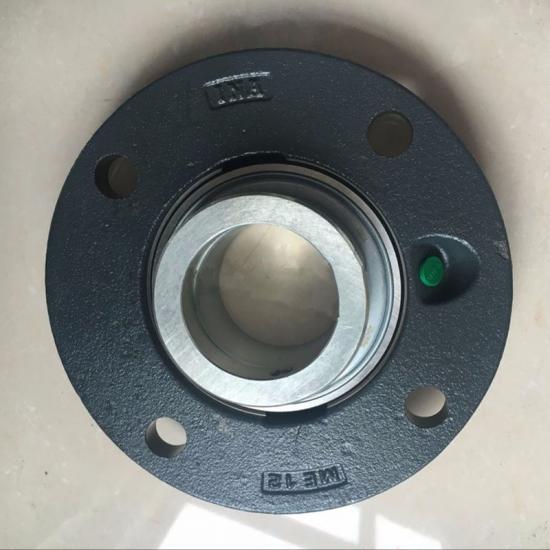

Housing Units PME40-XL-N Insert Bearing GRAE40-XL-NPP-B Housing ME08

Housing Units PME40-XL-N Insert Bearing GRAE40-XL-NPP-B Housing ME08 With Size 40*145*43.8mm ,The Material Are With Cast Iron And Chrome Steel GCR15

CONTACT NOW down load to pdf

Details

Tags

Housing units are the parts ready-to-fit ,they are consist of cast iron housings and the Chrome steel radial insert ball bearings,this new bearing housing can be work very well in reliability with all different operating environment, the bearings and housings are matched to each other. with the spherical outside surface of the bearing outer ring andthe concave housing bore, bearing housing is for staticangular misalignment of the shaft .The units are used predominantly as locating bearings, and the suitableas non-locating bearings under low loads and speeds.The housings are screw mounted on the adjacent construction.

Germany Original High Qulaity Housing Units PME40-XL-N Introduction:

Bearing Unit :PME40-XL-N

Type : Four-bolt flanged housing units

Housing ：ME08

Match insert ball bearing : INA GRAE40-XL-NPP-B

Size :40*145*43.8mm

Material : housing with cast iron ,inset ball bearing with Chrome steel

We Can Provide High Qulity Housing Unit PME Number For Your Reference:

Housing Units No.:	d(mm)	H(mm)	B1(mm)
PME20-XL-N	20	100	31
PME25-XL-N	25	115	31
PME30-XL-N	30	125	35.8
PME35-XL-N	35	135	39
PME40-XL-N	40	145	43.8
PME45-XL	45	155	43.8
PME50-XL-N	50	165	43.8
PME55-XL	55	185	48.4
PME60-XL-N	60	195	53.1

Bearing Unit ,Bearing Housing ,And Radial Insert Ball Beaing March ,With This New Bearing Unit , They Can Widely Use In Different Application:

Units	Housing	Radial insert ball bearing
PME20-N	GG.ME04-N	GRAE20-NPP-B
PME20-N	GG.ME04-N	GE20-KRR-B
TME20-N	GG.ME04-N	GE20-KTT-B
PMEY20-N	GG.ME04-N	GAY20-NPP-B
RMEY20-N	GG.ME04-N	GYE20-KRR-B
PME25-N	GG.ME05-N	GRAE25-NPP-B
PME25-N	GG.ME05-N	GE25-KRR-B
TME25-N	GG.ME05-N	GE25-KTT-B
PMEY25-N	GG.ME05-N	GAY25-NPP-B
RME25-N	GG.ME05-N	GYE25-KRR-B
PME30-N	GG.ME06-N	GRAE30-NPP-B
PME30-N	GG.ME06-N	GE30-KRR-B
TME30-N	GG.ME06-N	GE30-KTT-B
PMEY30-N	GG.ME06-N	GAY30-NPP-B
RME30-N	GG.ME06-N	GYE30-KRR-B
PME35-N	GG.ME07-N	GRAE35-NPP-B
PME35-N	GG.ME07-N	GE35-KRR-B
TME35-N	GG.ME07-N	GE35-KTT-B
PMEY35-N	GG.ME07-N	GAY35-NPP-B
RME35-N	GG.ME07-N	GYE35-KRR-B
PME40-N	GG.ME08-N	GRAE40-NPP-B
PME40-N	GG.ME08-N	GE40-KRR-B

We also can produe Insert Ball Bearing spherical outer ring,location by eccentric locking collar,P seals on both sidesas below series:

GRAE12NPPB,GRAE15NPPB,GRAE17NPPB,GRAE20NPPB,GRAE35NPPB,GRAE40NPPB,GRAE45NPPB,GRAE50NPPB

Bearing Series	For shaft diameter in mm	Features
GRAE..-NPP-B	12-60mm	Spherical outer ring,location by eccentric locking collar ,P seals on both sides
			RAE..-NPP-B	12-50mm	Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RALE..-NPP-B	20-30mm	Spherical outer ring,location by eccentric locking collar ,P seals on both sides
			RA..-NPP-B	5/8''-1 1/2''	Spherical outer ring,location by eccentric locking collar ,P seals on both sides,inch size bore
GE..-KRR-B	17-120	Spherical outer ring,location by eccentric locking collar ,R seals on both sides
