DC2222g-N DC2776-N DC31753C-N DC5776a-N One Way Clutch Bearings

Specifications:

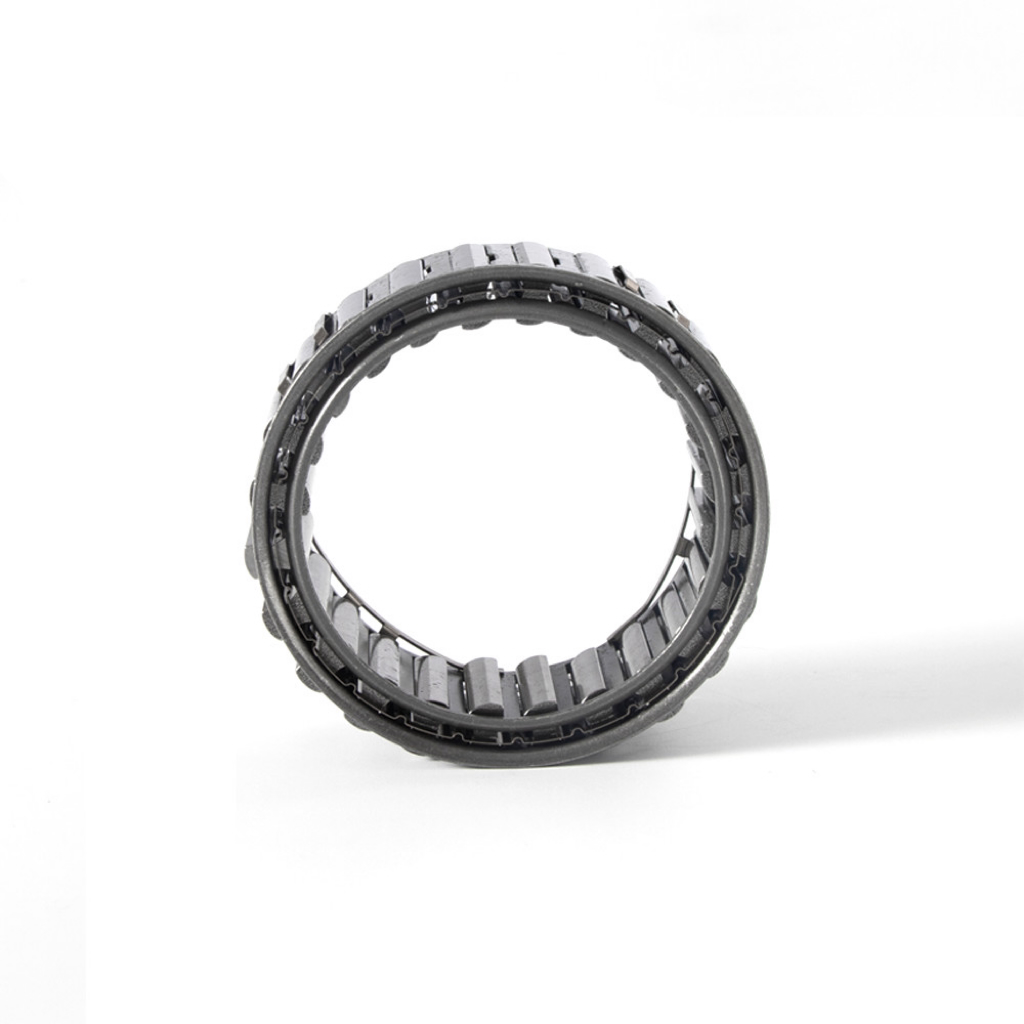

Name: DC One Way Sprag Type Freewheel Clutch

Material: GCR 15 Bearing Steel

Type: One Way Bearings

Max Overrunning (r/min): 8600-1500

Torque (Nm): 63-4875

Weight (Kg): 0.03-0.4Bore

Size(mm): 22-123

Details

Tags

Product description:

Angular Contact Ball Bearings can bear both radial and axial loads. Can work at higher speeds. The larger the contact angle, the higher the axial load carrying capacity. The contact angle is the angle between the line connecting the contact points of the ball and the raceway in the radial plane and the line perpendicular to the bearing axis. High-precision and high-speed bearings usually take a 15-degree contact angle. Under the action of axial force, the contact angle will increase.



Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version-N accepts all types of lubricants currently used in the power transmission equipement.



The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width “e”, without any recess, to ensure the freewheel functions correctly as shown on following pages.
Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below. Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.

Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races: 0,007 mm for 25 mm width.





Products Parameters
