CKZ-B One Direction Clutch For Bucket Elevator

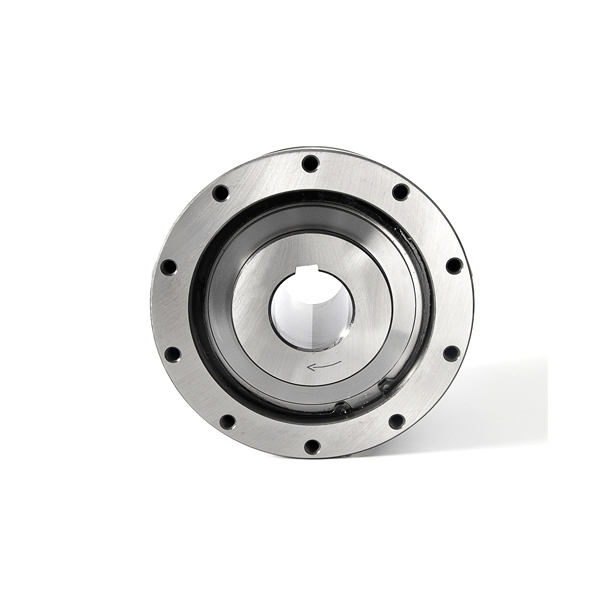

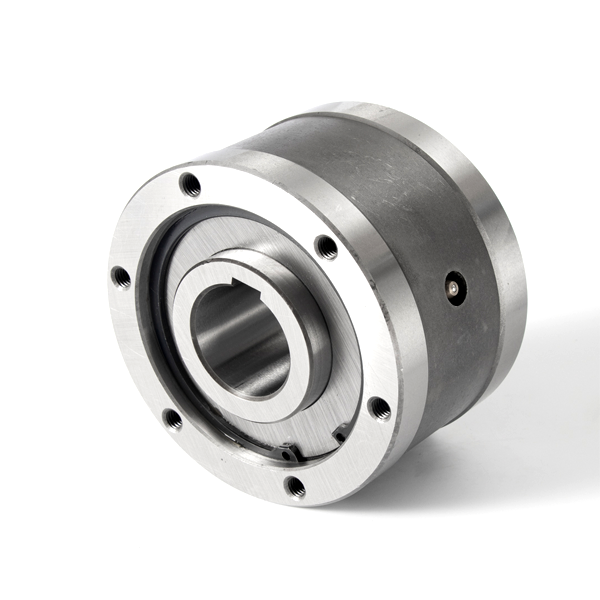

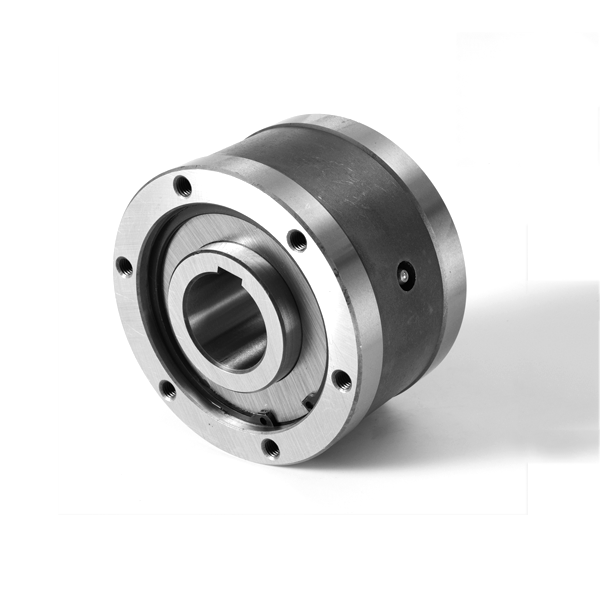

CKZ-B60180 unidirectional Clutch Bearing For Bucket Elevator

Model: CKZ-B25110 CKZ-B35130 CKZ-B45150 CKZ-B50165 CKZ-B50180 CKZ-B60200 CKZ-B70240 CKZ-B75260 CKZ-B80300 CKZ-B25100 CKZ-B28105 CKZ-B3090 CKZ-B3290 CKZ-B30110 CKZ-B32125 CKZ-B35115 CKZ-B40125 CKZ-B45190 CKZ-B55155 CKZ-B55175 CKZ-B60180 CKZ-B65180 CKZ-B80160

CONTACT NOW down load to pdf

Details

Tags

Type	Nominal Torque [N.m]	Overrunning Limited Speed [r/min]		Dimension In Contour [mm]											Weight [kg]
		Overrunning Limited Speed [r/min]		Outer Race Size							Inner Race Size
		inner race	outer race	D[h7]	D1[H7]	B	F	n-M	E	H	d[H7]	C	bn×tn	e
CKZ-B25110	404	700	300	110	80	68	95	6-M8	15	20	25	70	10×3.3	4.5	3.98
CKZ-B35130	825	560	250	130	90	85	100	6-M10	15	25	35	87	10×3.3	4.5	7.01
CKZ-B45150	1464	490	200	150	110	90	130	6-M10	20	25	45	92	14×3.8	4.5	9.69
CKZ-B50165	1830	420	150	165	120	92	145	6-M12	20	25	50	97	14×3.8	5	12.36
CKZ-B50180	2990	420	150	180	125	106	160	6-M12	20	25	50	108	16×3.8	5	16.51
CKZ-B60200	3494	350	120	200	150	115	180	6-M12	25	25	60	117	20×4.9	6	22.02
CKZ-B70240	4920	350	120	240	170	122	210	6-M14	25	30	70	124	22×5.4	6	34.65
CKZ-B75260	5760	280	100	260	200	130	230	6-M18	25	35	75	138	22×5.4	8	42.38
CKZ-B80300	7500	280	100	300	230	136	265	6-M18	25	35	80	138	22×5.4	8	57.17
CKZ-B25100	400	750	350	100	75	80	88	6-M8	10	16	25	82	8×3.3	4.5	2.62
CKZ-B28105	400	700	300	105	80	68	95	6-M8	15	16	28	70	10×3.3	4.5	2.75
CKZ-B3090	350	800	380	90	62	49	75	6-M6	10	15	30	50	8×2.0	4	4.86
CKZ-B3290	380	800	380	90	65	60	80	8-M6	10	16	32	60	10×3.7	4	4.32
CKZ-B30110	404	700	300	110	80	68	95	6-M8	15	16	30	70	10×3.3	4.5	3.91
CKZ-B32125	1021	560	250	125	95	90	110	8-M8	15	12	32	92	10×3.3	4.5	6.53
CKZ-B35115	800	700	300	115	72	78	95	6-Φ11	15		35	78	10×3.3	4.5	4.63
CKZ-B40125	800	600	300	125	95	76	110	6-M8	15	18	40	80	12×3.3	4.5	5.60
CKZ-B45190	2150	380	130	190	130	86	160	4-Φ14	20		45	86	14×3.8	6	17.5
CKZ-B55155	1735	490	200	155	125	100	140	8-M8	20	20	55	102	16×4.3	5	10.96
CKZ-B55175	1800	420	150	175	110	79	155	6-M10	20	15	55	87	16×4.3	5	14.92
CKZ-B60180	3100	420	150	180	140	124	158	8-M10	25	20	60	128	18×4.4	6	17.25
CKZ-B65180	3100	420	150	180	140	122	158	8-M10	25	20	65	124	18×4.4	6	16.68
CKZ-B80160	1830	420	150	180	130	100	145	6-M8	25	20	80	112	22×5.4	6	11.42
