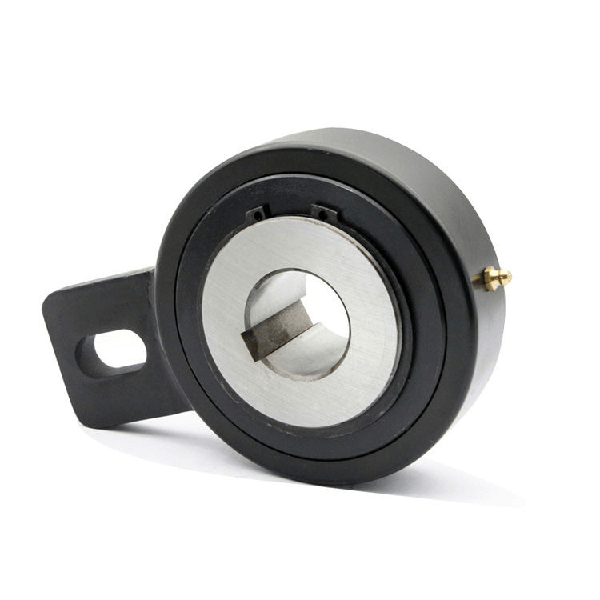

CK-N Sprag Type One Way Clutch With Low Speed

Type CK-N is sprag type one-way clutch integrate without supporting bearing and oil seal,and is suitable to application at low running speed.

CONTACT NOW down load to pdf

Details

Tags

Type CK-N is sprag type one-way clutch integrate without supporting bearing and oil seal,and is suitable to application at low running speed.

A bit,secured to a fixed part of the machine and passing through the slot in the torque arm,provide the roating stop,radial clearance on this bolt should be equal to 1% of the solt with.

The torque arm and the bearing must no:be prestressed ,priimarily used as s backstop or indexing clutch in packing and printing,this type provides a high torque capacity with a minimum space reuirement.

Dimensions and Capacities:

Type	Nominal Torque N.m	Overrunning Limiting Speed r/min	Dimension mm											Weight kg
Type	Nominal Torque N.m	Overrunning Limiting Speed r/min	d H7	D	D1	C	L	L1	L2	L3	H	H1	H2	Weight kg
CK-N2526	137	500	25	62	68	16	25	12	34	10	80	73	20	1.8
CK-N25100	435	400	25	100	106	48	32	15	40	18	113	102.5	35	2.5
CK-N30100	435	400	30	100	106	48	32	15	40	18	113	102.5	35	2.4
CK-N35100	435	400	35	100	106	48	32	15	40	18	113	102.5	35	2.3
CK-N40125	1035	300	40	125	132	52	36	15	60	18	125	115	35	4
CK-N45125	1035	300	45	125	132	52	36	15	60	18	125	115	35	3.9
CK-N50125	1035	300	50	125	132	52	36	15	60	18	125	115	35	3.8
CK-N55125	1035	300	55	125	132	52	36	15	60	18	125	115	35	3.7
CK-N60150	1290	250	60	150	161	54	40	15	70	18	140	130	35	6.2
CK-N70150	1290	250	70	150	161	54	40	15	70	18	140	130	35	6.1
CK-N80180	3900	200	80	180	190	70	50	20	70	25	165	150	30	9.6
CK-N90180	3900	200	90	180	190	70	50	20	70	25	165	150	30	9.5
