CK-C Motorcycle One Way Clutch Roller Bearing

Highlight: CK-C one way clutch roller bearing, Motorcycle one way clutch roller bearing, one way roller clutch bearing

Details

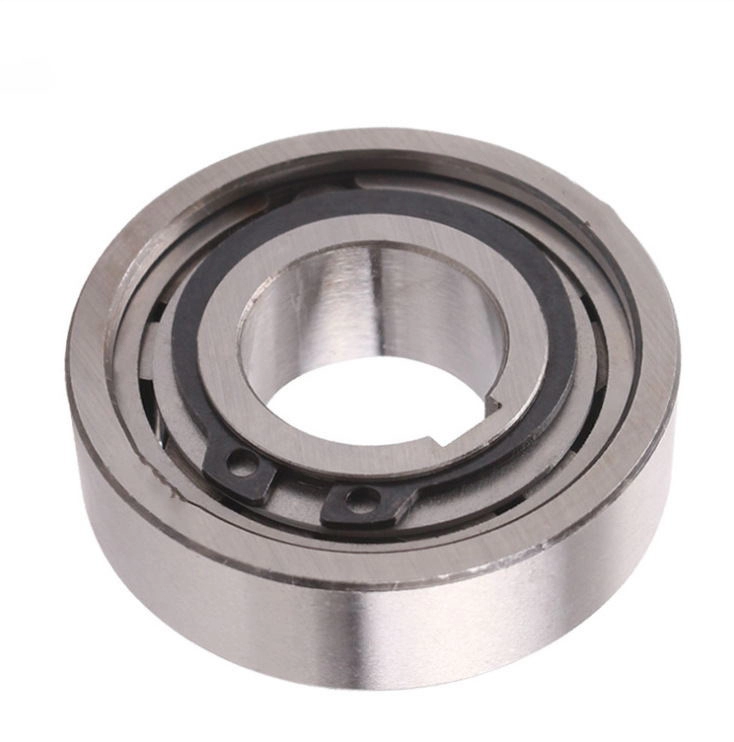

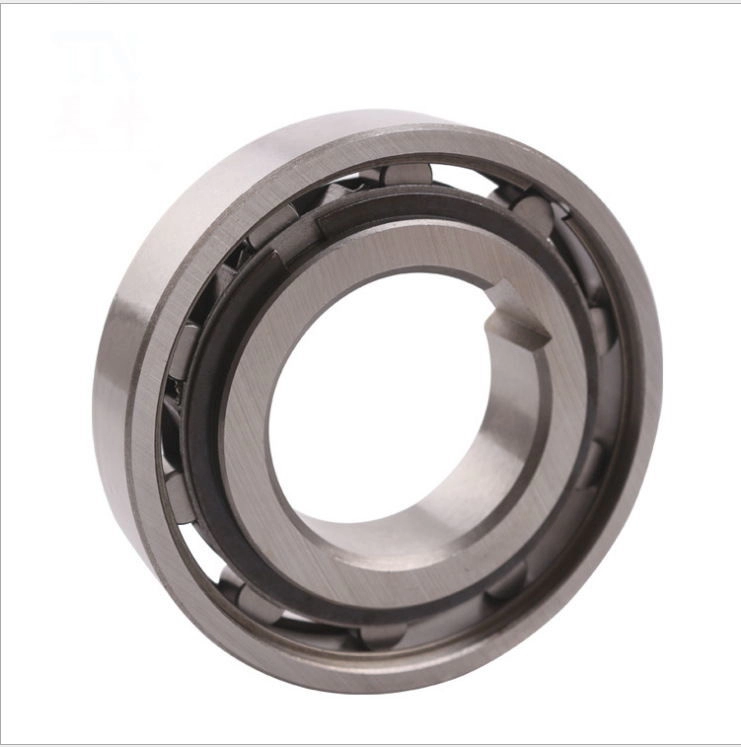

CK-C One Way Sprag Clutch Bearing For Motorcycle

Name:	CK-B One Way Sprag Type Freewheel Bearing For CNC Lathe	Material:	GCR 15 Bearing Steel
Type:	One Way Bearings	Overrunning Limiting Speed (r/min):	1100-500
Torque (Nm）:	50-1560	Weight (Kg):	0.2-2.09
Bore Size(mm):	52-160

Production Introduction

Type CK-C Is A Sprag Type Freewheel Non-Bearing Supported. Nominal Dia.-Direction Diameter Is A Standard

Ball Bearings Dimension.Bearings Are Required To Support Axial And Radial Loads.

Units Are Delivered Grease Iubricated.

The standard arrangement is to install this type besides a bearing with the same housing diameter tolerance.

The inner race and the outer race are keyed to the shaft,the outer race has n6 tolerance to give a tight fit

in k7 housing,but the housing must be strong enough.

This series extensive used in machinery system of conveyer, hosting, packing, printing,paper making,

weaving, chemical, medical,food and so on.

Products Parameters

Model	Nominal Torque[N.m]	Overrunning Limiting Speed (r/min)		Dimension [mm]					Bearing	Weight[kg]
		Overrunning Limiting Speed (r/min)		Outer race		Inner race
		Inner race	Outer race	D[n6]	B	d[H7]	C	bnxtn
CK-C2052	50	1100	420	52	15	20	15	4*1.8	6304	0.2
CK-C2562	80	1000	400	62	15	25	15	4*1.8	6305	0.21
CK-C3062	95	1000	400	62	15	30	15	4*1.8	6206	0.25
CK-C3072	132	1000	400	72	16	30	16	8*2.3	6306	0.41
CK-C3572	132	1000	400	72	15	35	15	5*2.3	6207	0.37
CK-C4080	300	1000	400	80	22	40	22	6*2.8	6208	0.48
CK-C4090	695	800	300	90	30	40	30	6*2.8	6308	0.49
CK-C4285	358	800	300	85	2	42	22	10*3.3	6209	0.51
CK-C4585	358	800	300	85	22	45	22	6*2.8	6209	0.52
CK-C5090	430	800	300	90	22	50	22	10*3.3	6210	0.56
CK-C55100	480	700	250	100	22	55	22	10*3.3	6211	0.72
CK-C60110	530	600	200	110	22	60	22	10*3.3	6212	0.85
CK-C65120	600	600	200	120	22	65	22	12*3.3	6213	0.95
CK-C70125	712	600	200	125	22	70	22	12*3.3	6214	1.07
CK-C80140	1184	500	150	140	26	80	26	12*3.3	6216	1.57
CK-C90160	1560	500	150	160	26	90	26	12*3.3	6218	2.09
