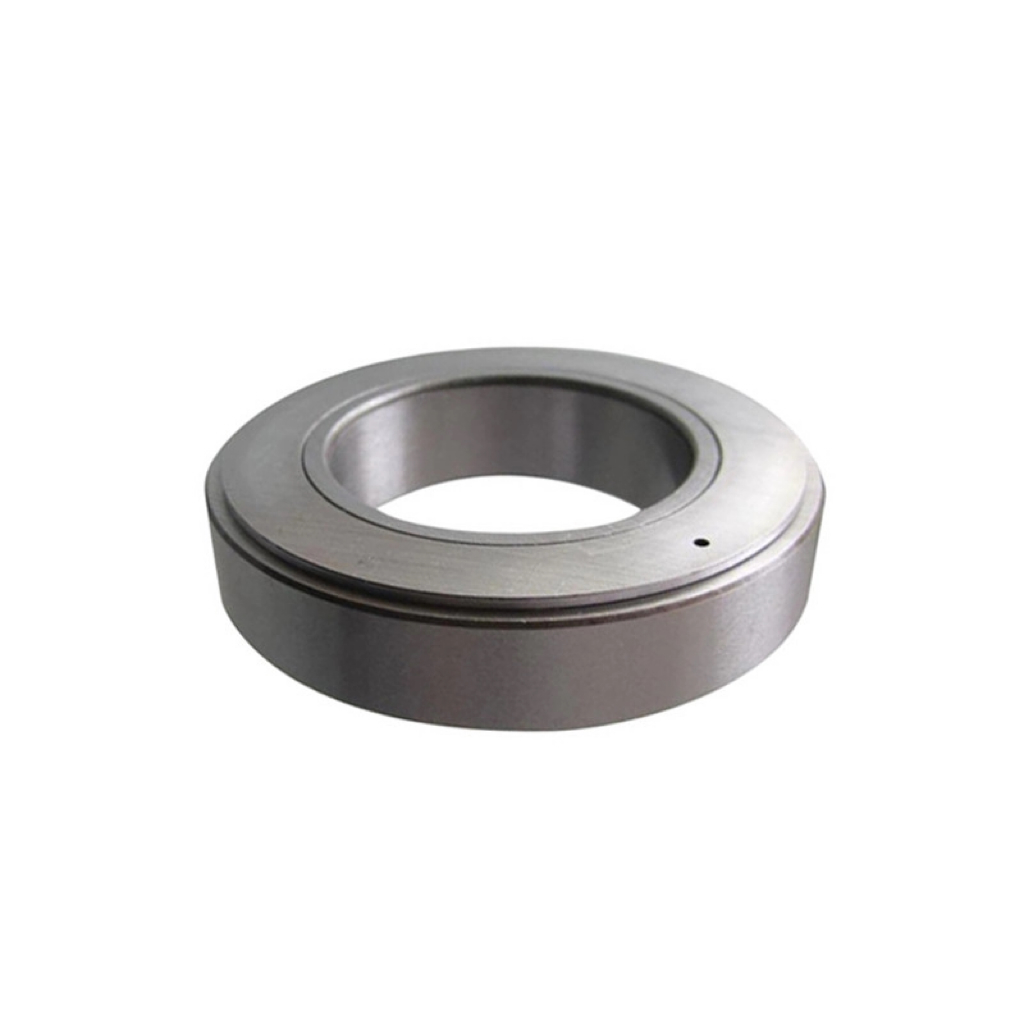

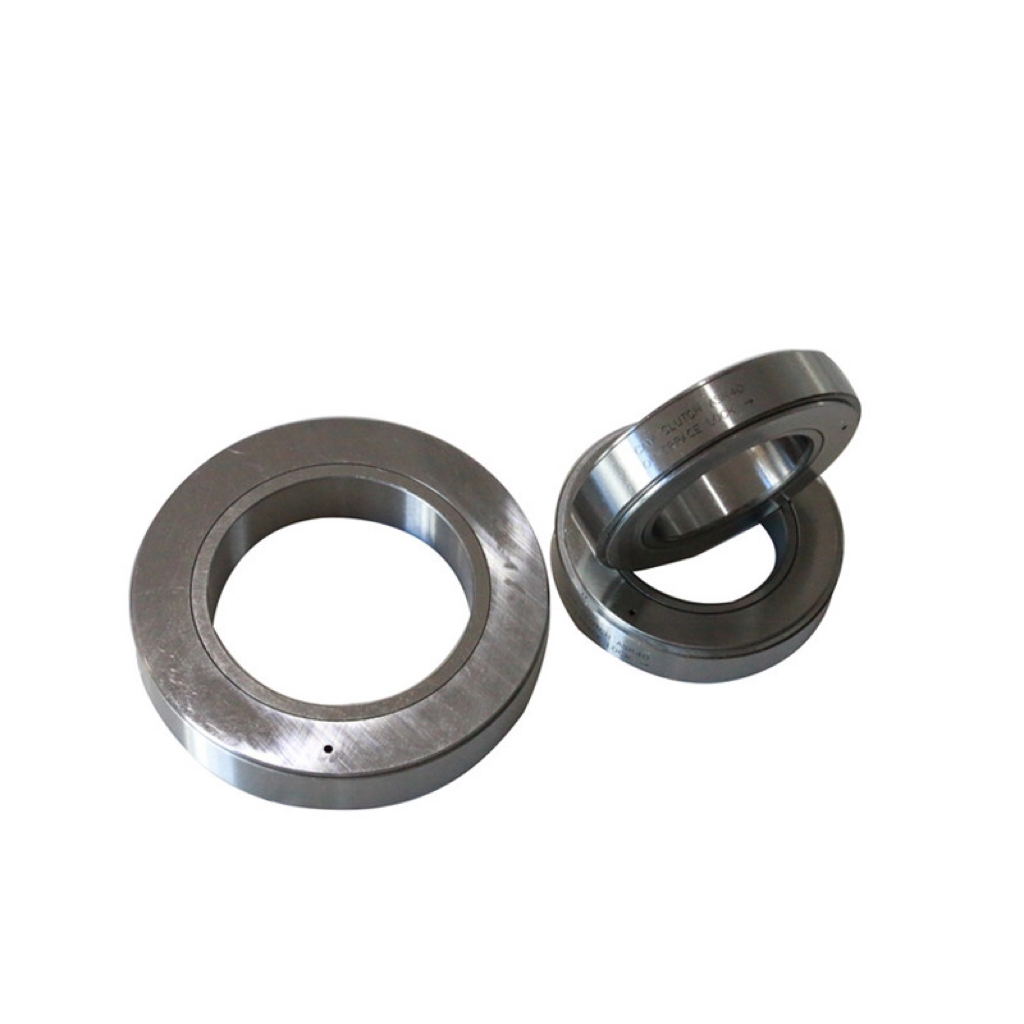

ASK40 50 60 239 One Way Bearings Roller Freewheel Bearing For Cutting Machine

Name:
ASK40 50 60 Roller Type Freewheel Bearing
Material: GCR 15 Bearing Steel
Bore Size(mm): 20-30 Thichness (mm): 64-180
Torque (Nm): 43.1 196 Weight (Kg): 1.9-4
Warranty:
12 Months

Details

Tags

Production Introduction



Type ASK Is A Roller Type Freewheel Bearing Supported By Two Rows Of Roller Bearings. It Is A Self-Contained Dust Protected Unit, Delivered Grease Lubricated.



Nominal Outside Dimensions Are The Same As A 60...Series Bearing. Torque Transmission Must Be Ensured By A Press Fit On Both The Inner And Outer Race. Because Of This Press Fit, The Standard Radial Clearance Is C4. The Interference Tolerances Are On The Freewheel Dimensions, Allowing A Direct Mounting In A Standard Series 60...Bearing Location: Shaft Tolerance Should Be H6 Or J6 The Outer Race Should Be Pressed Into A Rigid Housing To K6 Tolerance.



Radial Bearing Load Capacities Are Given In The Table. Type ASK Freewheels Can Not Accept Axial Loading. In Cases Of Such Loads, Thrust Bearings Must Be Provided.



Changzhou TIANNIU Transmission Equipment Co., Ltd Is A Professional One Way Clutch Bearing Supplier, The Primary Products Are Micro Electromagnetic Clutch, Torque Limiter Coupling, Sliding Shaft Coupling, Flexible Propeller Shaft Coupling, Locking Assembly And Shaft Couplings, Etc.



We Have Been In Sprag Clutch Bearing And Clutch One Way Bearing Industry For More Than 10years, Persisting In The Business Principle Of Products Tailored To Requirements From Clients.We Service Through Listening To Our Customers, Applying Innovation And Building With Craftsmanship To Meet All Their Needs.



Products Parameters
