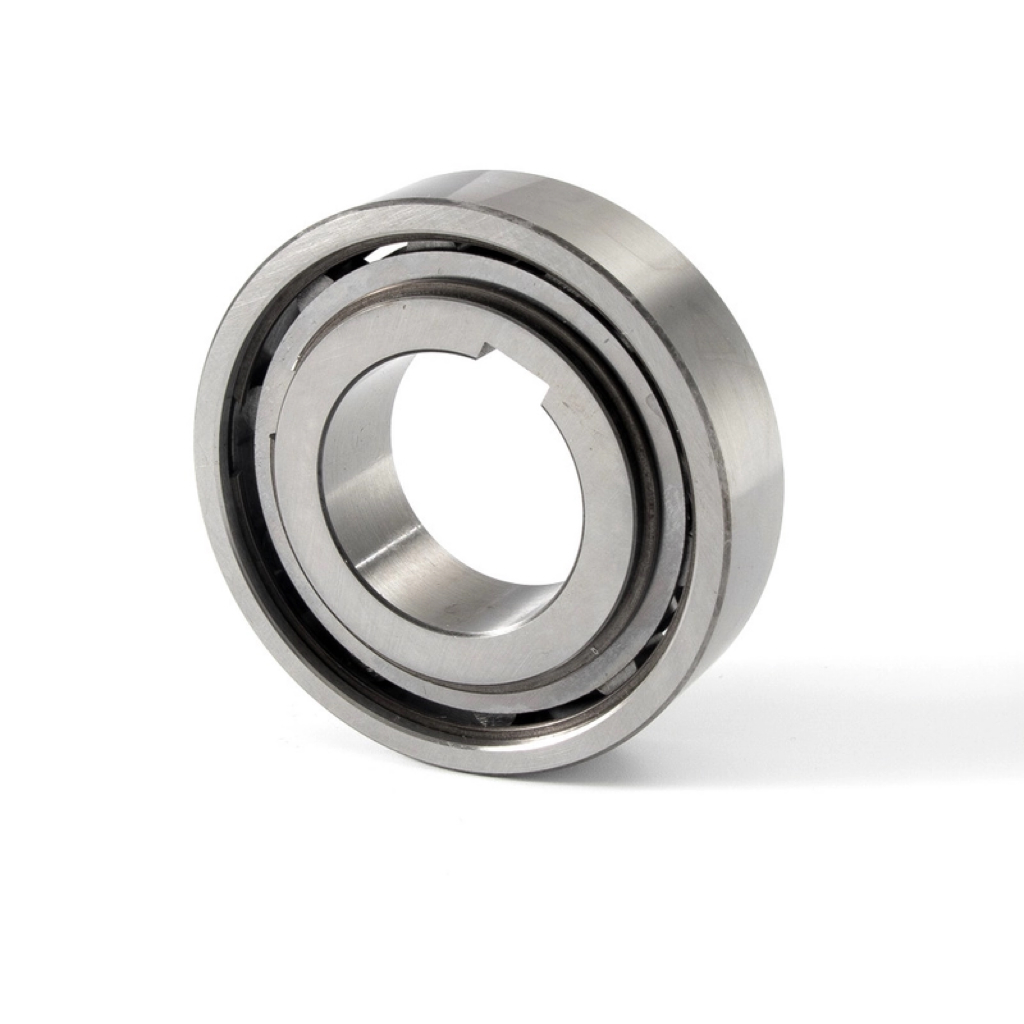

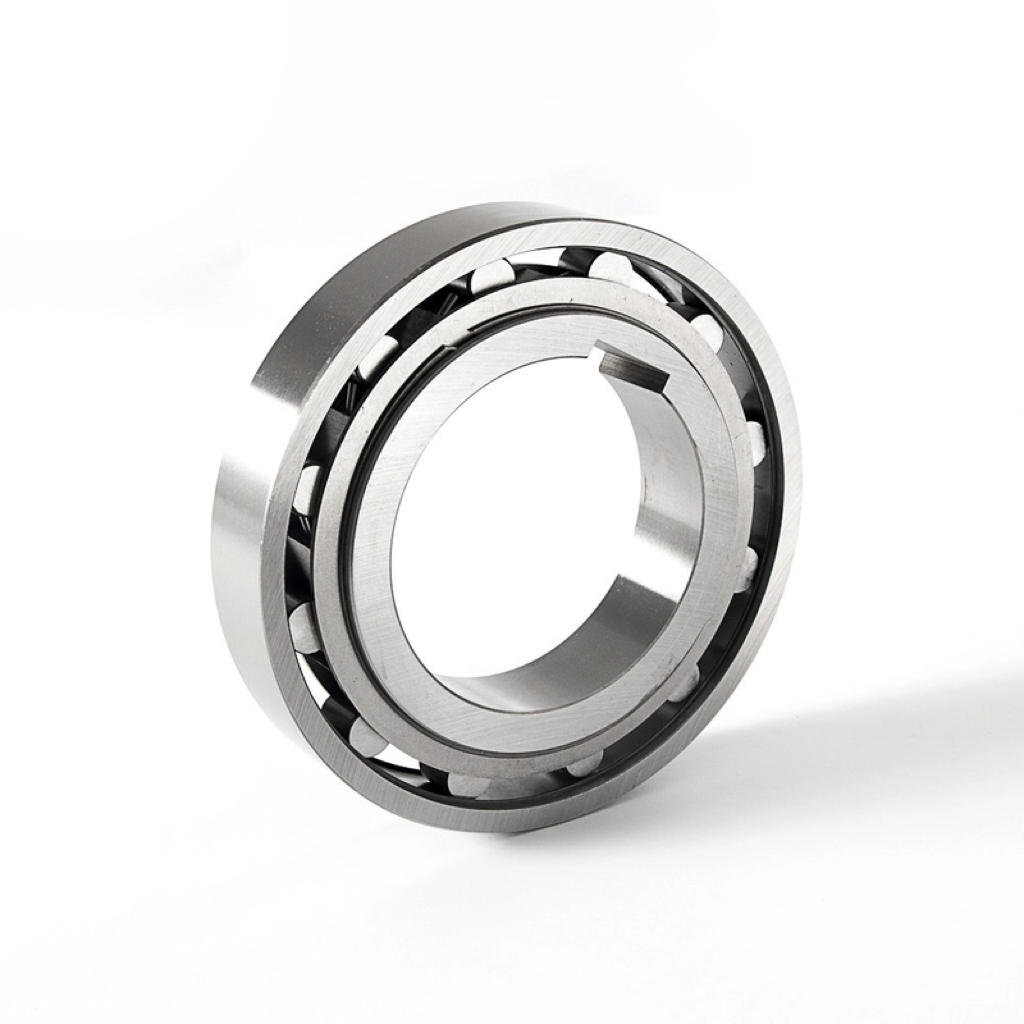

60 35mm One Way Bearings Roller Freewheel Clutch Bearing
  • 60 35mm One Way Bearings Roller Freewheel Clutch Bearing
  • One Way Bearings Roller Freewheel Clutch Bearing
  • As(tss nss) 15 25 60 35mm One Way Bearings Roller Freewheel Clutch Bearing

As(tss nss) 15 25 60 35mm One Way Bearings Roller Freewheel Clutch Bearing

Type AS Is A Roller Type Freewheel Non-Bearing Supported. Bearings Are Required To Support Axial And Radial Loads. Lubrication And Sealing Must Also Be Provided By The Installation. Nominal Outside Dimensions Are The Same As Series 62...Ball Bearings.

Details

Tags

Highlight: nss 60 bearing, nss25 bearing, tss bearings

Name:
AS One Way Sprag Bearing Overrunning Clutch
Material:
GCR 15 Bearing Steel
Type:
One Way Bearings
Thichness (mm):
19-140
Torque (Nm):
2.1-1063
Weight (Kg):
0.01-1.41
Bore Size(mm):
6-80
Warranty:
12 Months

AS NSS TSS One Way Roller Type Freewheel Clutch



Production Introduction

Type AS Is A Roller Type Freewheel Non-Bearing Supported. Bearings Are Required To Support Axial And Radial Loads. Lubrication And Sealing Must Also Be Provided By The Installation. Nominal Outside Dimensions Are The Same As Series 62...Ball Bearings.

A Typical Arrangement Is To Install This Type Alongside A Series 62 Bearing Within The Same Location Tolerances, As Shown On The Following Page. The Inner Race Is Keyed To The Shaft (Except 6 Mm Bore).
The Outer Race Has A Positive R6 Tolerance To Give A Press Fit In A H7 Housing. The Outer Housing Must Be Strong Enough
To Not Expand After Assembly. This Design Can Accept An Axial Misalignment Of Inner And Outer Race Of ± S/2.



The dimensions of the AS type wedge type one-way clutch are the same as those of the 62 series deep groove ball bearings (CSK40). It is a combination of a deep groove ball bearing and a sprag clutch, which has been filled with grease. The seal can prevent dust above 0.3mm from entering the interior. The transmission of torque is in the form of interference fit. The outer ring is pressed with a rigid enough frame with N6 tolerance, and the inner ring is pressed with the outer diameter of the working shaft. When installing, pay attention not to knock the inner ring to press the outer ring into the frame, and not to knock the outer ring to press the inner ring to squeeze into the outer diameter of the shaft. The transmission torque is small (7.4~260N.m), and the limit speed is high. Widely used in printing machinery, packaging machinery, food machinery, electric drum, reducer and testing equipment, etc.



Products Parameters

Type Size Torque Overrunning speeds Dimensions Weight Drag torque
AS (NSS) dH7 TKN1) nimax2) namax3) Dr6 D5 L s e f
[mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
6 2.1 5000 7500 19 15.8 6 0.3 0.6 0.3 0.01 0.18
8 3.8 4300 6500 24 20 8 1.3 0.6 0.6 0.02 0.24
10 6.8 3500 5200 30 25.9 9 1.3 0.6 0.6 0.03 0.36
12 13 3200 4800 32 28 10 1.3 0.6 0.6 0.04 0.48
15 14 2800 4300 35 31 11 1.4 0.6 0.6 0.05 0.7
20 40 2200 3300 487 40 14 2.4 0.8 0.8 0.12 1.4
25 56 1900 2900 52 45.9 15 2.4 0.8 0.8 0.14 2.4
30 90 1600 2400 62 55 16 2.4 0.8 1 0.22 7.8
35 143 1300 2000 72 64 17 2.5 0.8 1 0.31 9
40 185 1200 1800 80 72 18 2.5 0.8 1 0.39 10
45 218 1000 1600 85 77 19 2.5 1.2 1 0.44 11
50 230 950 1500 90 82 20 2.5 1.2 1 0.49 13
55 308 800 1300 100 90 21 2.5 1.2 1 0.66 14
60 508 700 1100 110 100 22 2.5 1.2 1.5 0.81 26
80 1063 600 900 140 128 26 2.5 1.2 1.5 1.41 58



NOTES:

AS6 Without Keyway. ØD = -0-0,009
AS8-12 Keyway To DIN 6885.1.
Other Sizes To DIN 6885.3
1) T Max = 2 × T KN
2) Inner Race Overruns
3) Outer Race Overruns
Mounting Dimensions Are Identical To Ball Bearings Series 62
