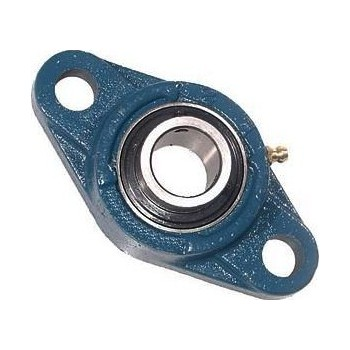

25MM 2 BOLT UCFLX05-14 Flange bearing unit( oval)

The CFLX05-14 flange bearing unit is a crucial component in various industrial applications. This type of bearing unit is specifically designed to provide support and reduce friction between two moving parts, typically a shaft and a housing.

The CFLX05-14 flange bearing unit consists of a bearing housing and an insert bearing, both made from high-quality materials such as cast iron or stainless steel.

CONTACT NOW down load to pdf

Details

Tags

description

The CFLX05-14 flange bearing unit consists of a bearing housing and an insert bearing, both made from high-quality materials such as cast iron or stainless steel.

The flange bearing unit is easy to install and can be utilized in different environments, including high-temperature and corrosive settings. With its sturdy construction and reliable performance, the CFLX05-14 flange bearing unit offers excellent load-bearing capacity and ensures smooth operation even under heavy loads.

Furthermore, this type of bearing unit delivers exceptional rotational accuracy, minimizing the risk of misalignment and facilitating efficient power transmission.

Due to its versatility and durability, the CFLX05-14 flange bearing unit is widely used in various industries, such as agriculture, construction, mining, and automotive.

Whether it is supporting a rotating shaft in a conveyor system or providing stability to a gearbox, the CFLX05-14 flange bearing unit proves to be an essential component in keeping industrial processes running smoothly and efficiently.

Its ability to withstand harsh conditions and deliver exceptional performance makes it a preferred choice for many engineers and maintenance professionals. Overall, the CFLX05-14 flange bearing unit is a reliable and cost-effective solution for various industrial applications, offering exceptional load-bearing capacity, rotational accuracy, and durability.

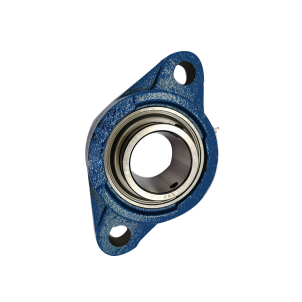

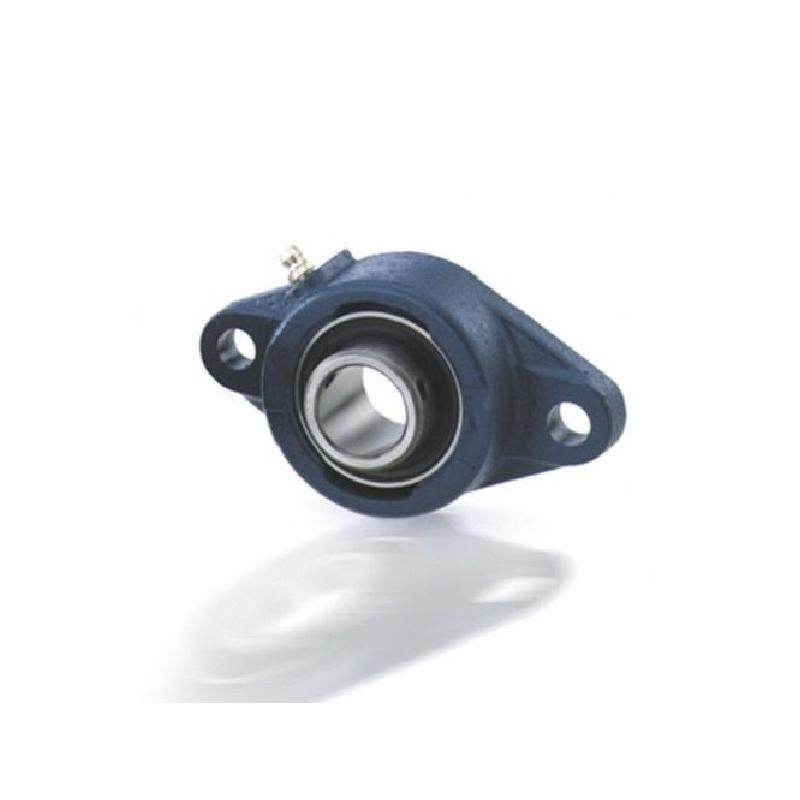

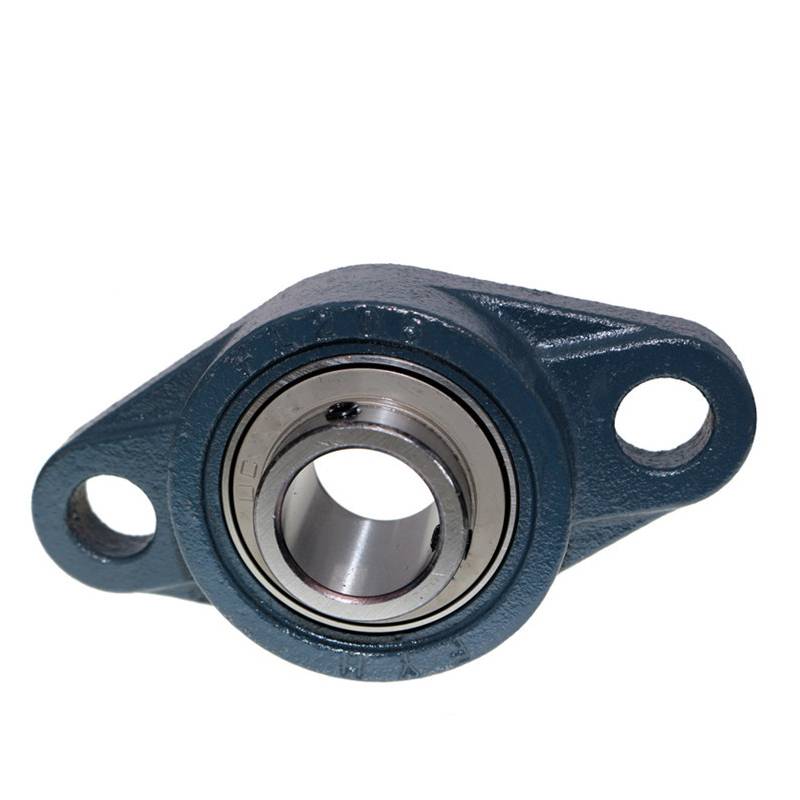

Production Show

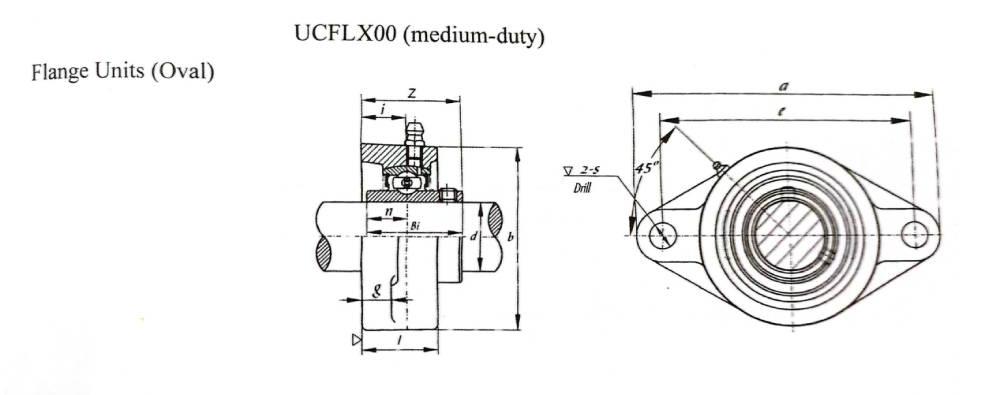

Specifications

Read More About mounted spherical bearing

Bearing units No.	UCFLX05-14
Bearing No.	UCX05-14
Housing No	FLX05
Shaft Dia	7/8 IN
Shaft Dia	25MM
a	141MM
e	117MM
i	8MM
g	13MM
l	30MM
s	12MM
b	83MM
z	40.2MM
bi	38.1MM
n	15.9MM
Bolt size	M10
Bolt size	3/8 IN
Weight	1KG
Housing Type:	2 hole flanged housing unit
Shaft Fastening:	Grub Screws
