22311 shaker screen bearing
  • 22311 shaker screen bearing
  • 22316 shaker screen bearing

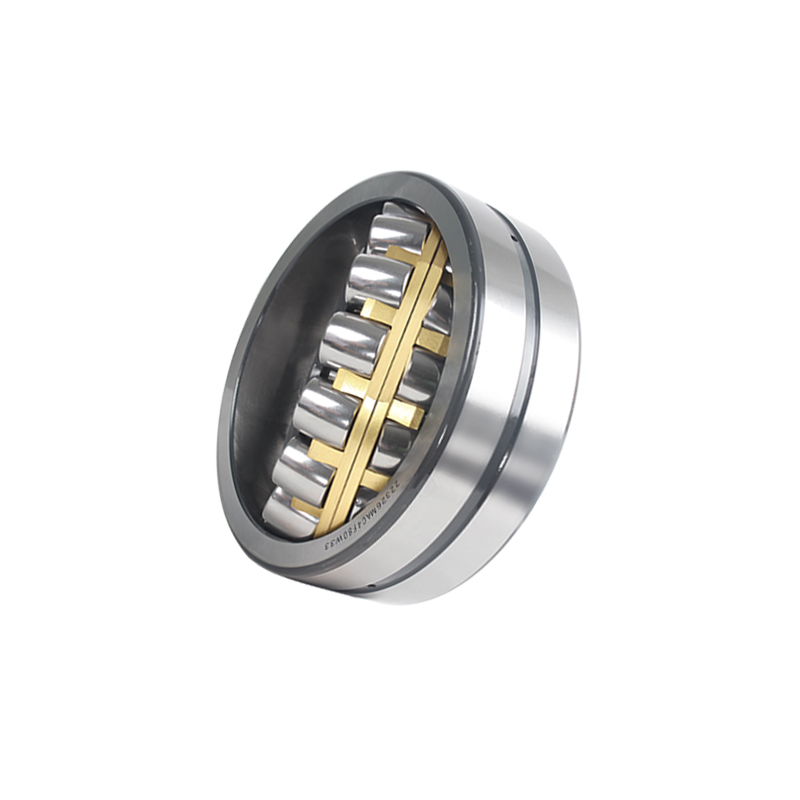

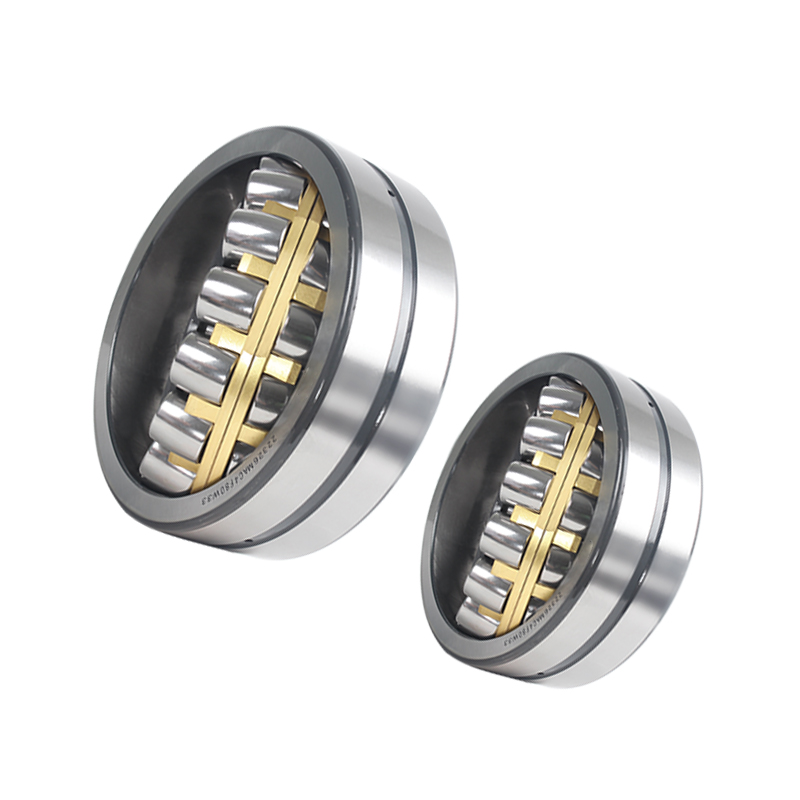

22314MAC4F80W33 , 22315MAC4F80W33 , 22316MAC4F80W33 , 22317MAC4F80W33 Shaker screen bearings

Shaker Screen Bearings, designed with precision and durability in mind. These bearings feature machined brass cages guided on the outer race, ensuring superior performance and longevity. With radial clearances ranging between C3 and C4, as well as reduced tolerances for bore, outside diameters, and internal clearance, our Shaker Screen Bearings, coded under the designation F80, exceed industry standards and expectations. Whether used in industrial machinery or heavy-duty equipment, these bearings are engineered to deliver exceptional reliability and efficiency. Trust in our Shaker Screen Bearings to provide smooth operation and steadfast support for your applications, making them the ideal choice for demanding environments that require uncompromising quality and performance.

down load to pdf

Details

Tags

Description



   Shaker Screen Bearings, designed with precision and durability in mind. These bearings feature machined brass cages guided on the outer race, ensuring superior performance and longevity. With radial clearances ranging between C3 and C4, as well as reduced tolerances for bore, outside diameters, and internal clearance, our Shaker Screen Bearings, coded under the designation F80, exceed industry standards and expectations. Whether used in industrial machinery or heavy-duty equipment, these bearings are engineered to deliver exceptional reliability and efficiency. Trust in our Shaker Screen Bearings to provide smooth operation and steadfast support for your applications, making them the ideal choice for demanding environments that require uncompromising quality and performance.

Bearing Type Dimensions (mm) Dynamic Capacity  Static Capacity Bore Tolerance  O.D. Tolerance  C4 F80 Min.  Clearance Group Max
d D B (KN) (KN) in. in. in. in.
22314MAC4F80W33 70 150 51 375 455 0-0.009 -0.018 0.12 0.145
22315MAC4F80W33 75 160 55 380 475 0-0.009 -0.023 0.12 0.145
22316MAC4F80W33 80 170 58 410 500 0-0.012 -0.023 0.12 0.145
22317MAC4F80W33 85 180 60 460 570 0-0.023 -0.023 0.15 0.18



Applications
