22310mac4f80w33 bearing
  • 22310mac4f80w33 bearing
  • 22311 shaker screen bearing

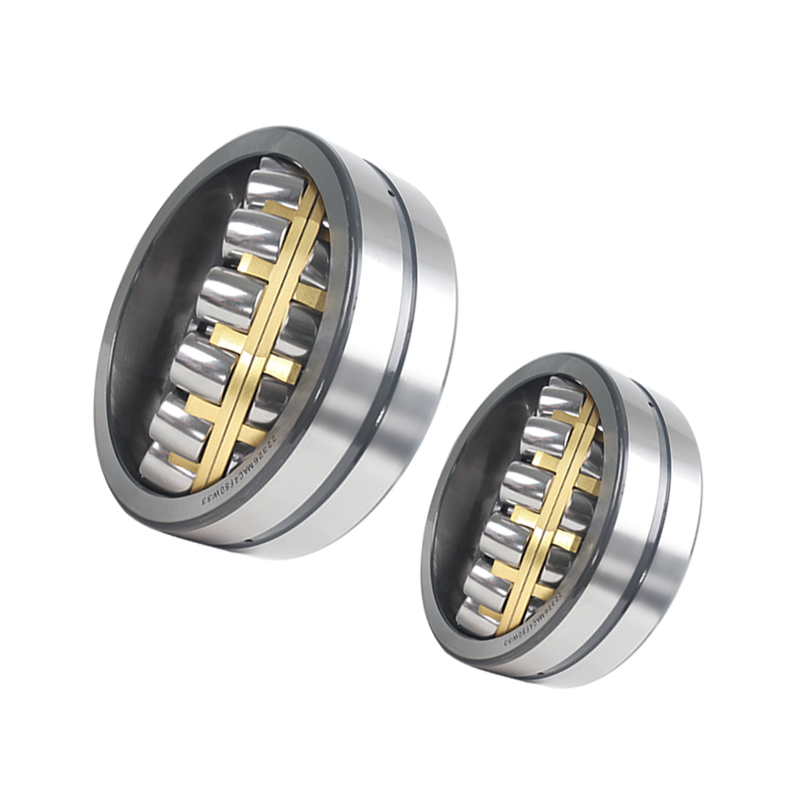

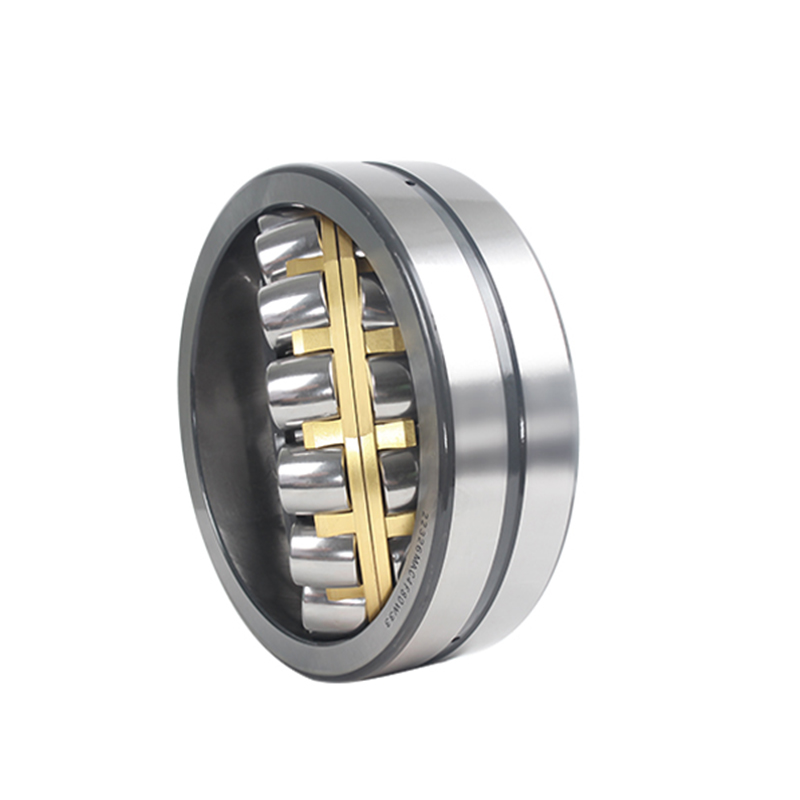

22310MAC4F80W33 , 22311MAC4F80W33 , 22312 MAC4F80W33, 22313 MAC4F80W33 Shaker screen bearing

 our top-of-the-line Shaker Screen Bearings, designed with precision and durability in mind. These bearings feature machined brass cages guided on the outer race, ensuring superior performance and longevity. With radial clearances ranging between C3 and C4, as well as reduced tolerances for bore, outside diameters, and internal clearance, our Shaker Screen Bearings, coded under the designation F80, exceed industry standards and expectations. Whether used in industrial machinery or heavy-duty equipment, these bearings are engineered to deliver exceptional reliability and efficiency. Trust in our Shaker Screen Bearings to provide smooth operation and steadfast support for your applications, making them the ideal choice for demanding environments that require uncompromising quality and performance.

down load to pdf

Details

Tags

Description





  our top-of-the-line Shaker Screen Bearings, designed with precision and durability in mind. These bearings feature machined brass cages guided on the outer race, ensuring superior performance and longevity. With radial clearances ranging between C3 and C4, as well as reduced tolerances for bore, outside diameters, and internal clearance, our Shaker Screen Bearings, coded under the designation F80, exceed industry standards and expectations. Whether used in industrial machinery or heavy-duty equipment, these bearings are engineered to deliver exceptional reliability and efficiency. Trust in our Shaker Screen Bearings to provide smooth operation and steadfast support for your applications, making them the ideal choice for demanding environments that require uncompromising quality and performance.

Bearing Type Dimensions (mm) Dynamic Capacity  Static Capacity Bore Tolerance  O.D. Tolerance  C4 F80 Min.  Clearance Group Max
d D B (KN) (KN) in. in. in. in.
22310MAC4F80W33 50 110 40 195 220 0-0.007 -0.018 0.085 0.1
22311MAC4F80W33 55 120 43 220 255 0-0.009 -0.018 0.1 0.12
22312MAC4F80W33 60 130 46 260 310 0-0.009 -0.018 0.1 0.12
22313MAC4F80W33 65 140 48 280 330 0-0.009 -0.018 0.1 0.12
