204RY2 Agri Bearing For International Harvester

Farming Planter Bearing 204RY2 with round bore and it is belong to single row deep groove ball bearing and these bearings are produce with Chrome steel Gcr15 and the dimension is 16.027 x 45.225 x 18.669 / 15.494 mm.

CONTACT NOW down load to pdf

Details

Tags

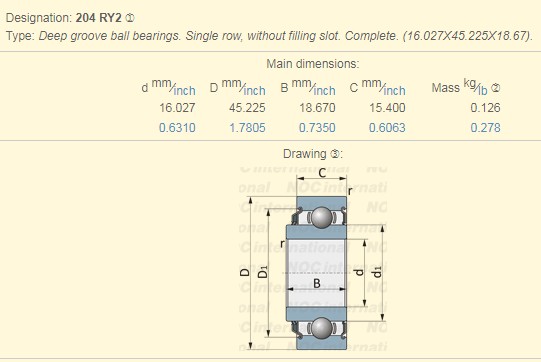

Farming Planter 204RY2 Introduction:
Material :Chrome steel
BORE:0 .63" Round (16.027mm)
O.D. 1.78" Flat (45.225mm)
IR Width: 0.73" (18.670mm)
OR Width:0 .60"(15.4mm)
Weight : 0.278 kg

Farming Planter Bearings are with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions.

These bearings have high radial forces ,and the outer rings are with crowned or cylindrical outside surface design .,with this designs they can reduce the hareness the outside surface mating track and edge stresses.

Agri Bearing 204RY2 Can Be Fits With:
John Deere: AA21480
International Harvester: 1268017C91 & 492757R91
Massey Ferguson: DG1645ARSLRSPZ
