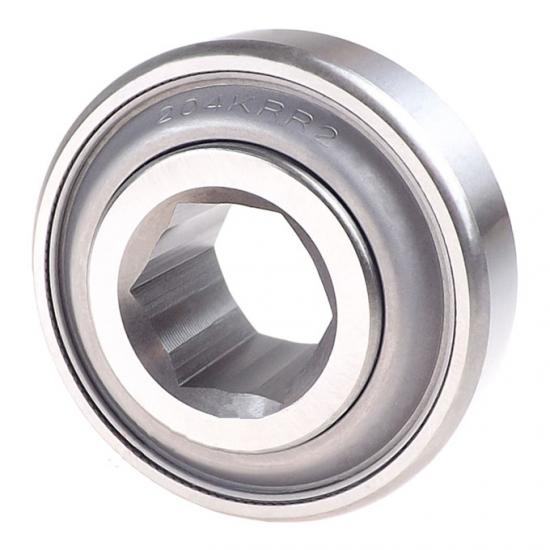

204KRR2 11/16" Hex Bore Agriculture Ag Bearing

Ag Bearing 204KRR2 are with hex bore 11/16" ,and this bearing also know as HPC011GP,11KB204N,1AH04-11/16.

Details

Tags

Hex Bore Agricultural Radial Bearing Introduction:

BORE: 11/16" Hex
O.D. 1.85" Flat
IR Width: 0.825"
OR Width: 0.55"



This Bearing Also Known As:
FAFNIR/TIMKEN: 204KRR2
BCA: HPC011GP
John Deere: JD7126
BCA :HPC011GP
PEER :11KB204N
NTN:1AH04-11/16

Hex Bore Bearing 204KRR2 Can Used For John Deere and others combine cross auger.

Planter Special Agricultural Ball Bearing Series:

Bearing Number Type Hex Shaft Size A D Bi Be Load Ratings N Wt.
mm mm mm mm Dynamic Static kg
202KRR3 1 9/16" 14.3 35 13 11 2160 1000 0.054
204KPP2 3 11/16" 17.653 47 20.955 14 2900 1000 0.154
204KRR2 1 11/16" 17.653 47 20.955 14 2900 1410 0.145
204KRRB2 2 11/16" 17.653 47 20.955 14 2900 1410 0.145
204KPPB2 4 11/16" 17.653 47 20.955 14 2900 1410 0.145
SLE 53-012-2T Special 3/4" 19.18 53.086 34.2 18.288 3150 1610 0.299
RX84 Special 11/16" 17.653 53.97 20.193 15.875 3150 1610
