120*215*79/98mm 809281 Mixer reducer bearing

The Deep Groove Ball Bearing, known as F-809281-PRL-FAG FAG, has an inner diameter of 120 mm, an outer diameter of 215 mm and a thickness of 98 mm.

Details

Tags

Descriptions

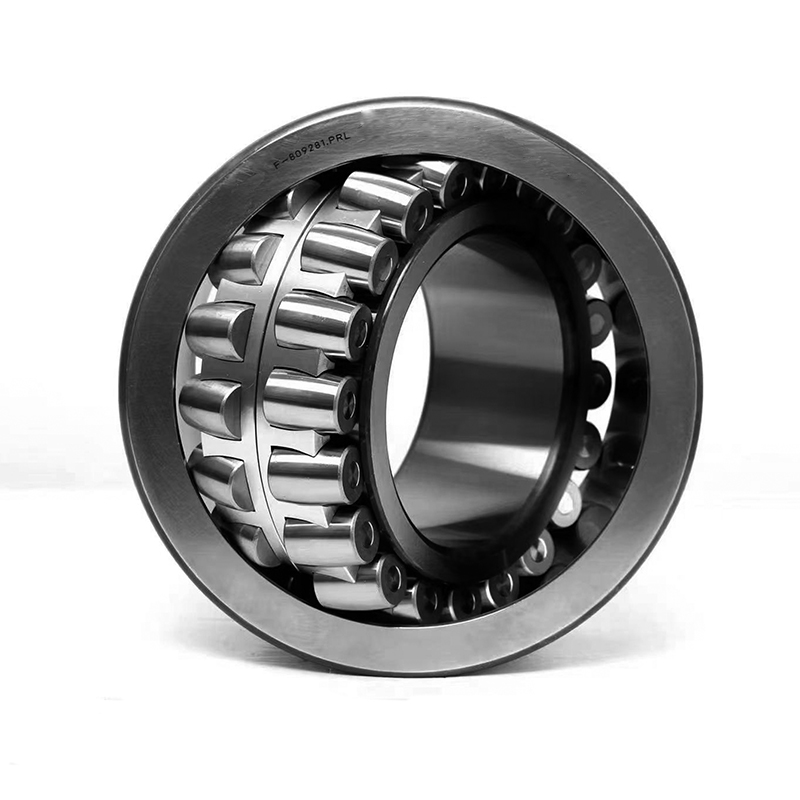

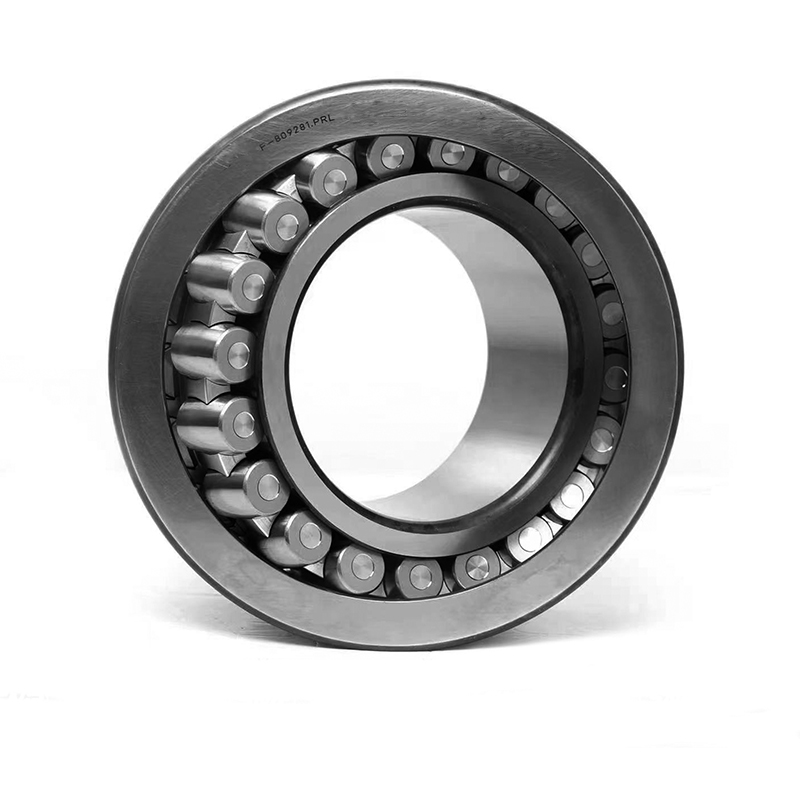

F-809281.PRL bearing is spherical roller bearing for cement truck speed reducers.
For this bearing,
Dimensions: 120*215*76/98
Mass: 15kg/pc for F-809281.PRL bearing
Material: Chrome Steel, 51200/Gcr15
Struture: Double Row Spherical Roller Bearing
Cage: Brass cage or steel cage
Matching Oil Seal: PMP, K713
Package: Individual Wooden Case
Cross Reference: F-809281.PRL, F-809281-PRL, 809281



Bearing No. Dimension(mm) Match Oil seal Load Rating (KN) RPM
ID OD Thickness (mm) Cr Cor Grease(r/min) oil (R/min)
F-809281-PRL 120 215 76/98 135-175-10/15
135-215-14/39
750 1000 1400 1800
