UKT218 Take Up Housing Bearing Unit Pillow Block Bearing

CONTACT NOW down load to pdf

Details

Tags

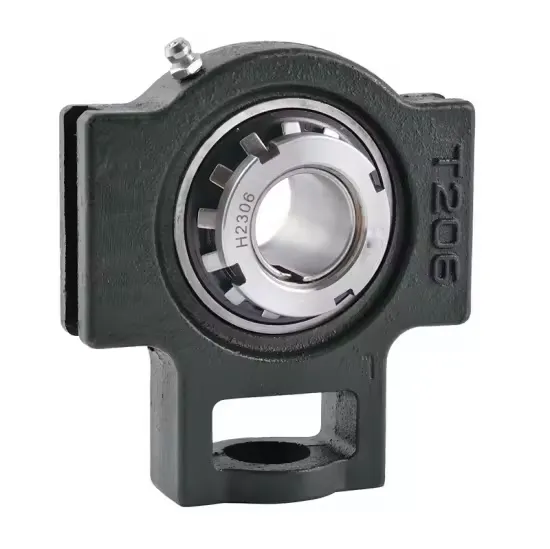

Housing units UKT, cast iron housing, radial insert ball bearing with adapter sleeve, RSR seals, for linear motion

d	80 mm	Bore diameter
H	215 mm	Height
L	275 mm	Length total
B₁	86 mm	Locking collar total width
≈m	12,81 kg	Weight
A₁	28 mm	Width guidance groove
	0,3 mm	Upper width guidance groove tolerance
	0 mm	Lower width guidance groove tolerance
H₁	190 mm	Distance guidance grooves
	0 mm	Upper distance guidance groove tolerance
	-0,8 mm	Lower distance guidance groove tolerance
N	47 mm	Fixing bore
L₁	170 mm	Distance shaft axis
L₂	30 mm	Length fixed link
L₃	140 mm	Length guidance groove
A	80 mm	Width housing fixing side
N₁	40 mm	Width recess
N₂	80 mm	Height recess
T	130 mm	Height housing fixing side
Q	M6	Connection thread for lubrication
A₂	55 mm	Width housing
T_min	-20 °C	Operating temperature min.
T_max	100 °C	Operating temperature max.
