Housing units UKT, cast iron housing, radial insert ball bearing with adapter sleeve, RSR seals, for linear motion

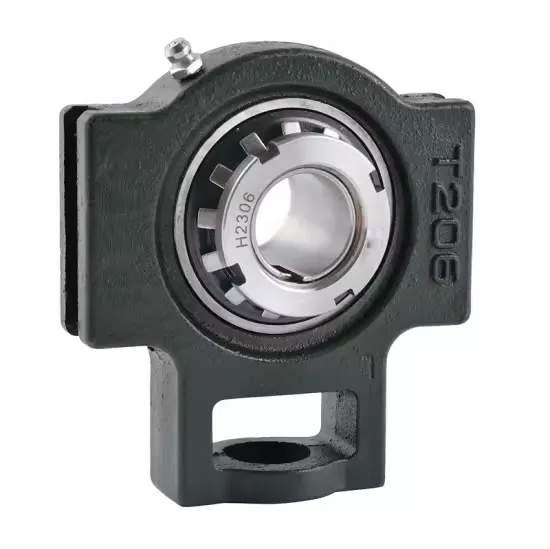

UKT206 Take Up Housing Bearing Unit Pillow Block Bearing

d	25 mm	Bore diameter
H	102 mm	Height
L	113 mm	Length total
B₁	38 mm	Locking collar total width
≈m	1,29 kg	Weight
A₁	12 mm	Width guidance groove
	0,2 mm	Upper width guidance groove tolerance
	0 mm	Lower width guidance groove tolerance
H₁	89 mm	Distance guidance grooves
	0 mm	Upper distance guidance groove tolerance
	-0,5 mm	Lower distance guidance groove tolerance
N	22 mm	Fixing bore
L₁	70 mm	Distance shaft axis
L₂	10 mm	Length fixed link
L₃	57 mm	Length guidance groove
A	37 mm	Width housing fixing side
N₁	16 mm	Width recess
N₂	37 mm	Height recess
T	56 mm	Height housing fixing side
Q	M6	Connection thread for lubrication
A₂	28 mm	Width housing
T_min	-20 °C	Operating temperature min.
T_max	100 °C	Operating temperature max.
