Flanged ball bearing unit with composite or cast metal housing
  • Flanged ball bearing unit with composite or cast metal housing

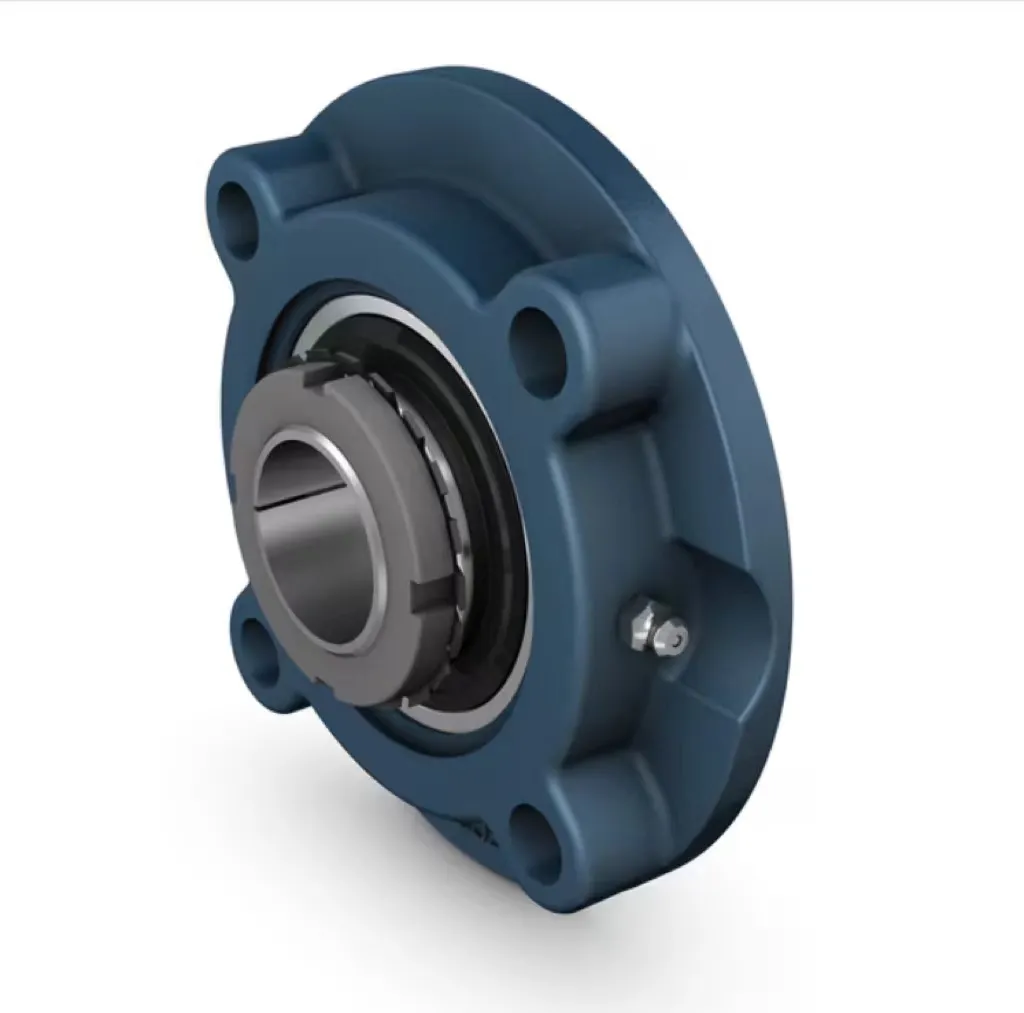

UKFC210 Flanged Housing Bearing Unit UKFC 200 Series Bearing

down load to pdf

Details

Tags

Flanged ball bearing unit with composite or cast metal housing





d
45 mm
 Bore diameter
H
165 mm
 Height flange
U
40.2 mm
 Total height unit
Cr
37,500 N
 Basic dynamic load rating, radial
C0r
23,200 N
 Basic static load rating, radial
Cur
1,210 N
 Fatigue load limit, radial
≈m
3.15 kg
 Weight
J
138 mm
 Pitch circle diameter (holes)
N
16 mm
 Fixing bore
N1
97.6 mm
 Distance fixing bore
T1
12 mm
 Height spigot
Z
110 mm
 Diameter spigot

h8
 Diameter spigot clearance
n
4
 Number of screwing holes
A
28 mm
 Height housing
A1
14 mm
 Thickness of flange
A2
10 mm
 Distance raceway
B
34 mm
 Width
B1
55 mm
 Locking collar total width
d3
70 mm
 Outside diameter eccentric locking collar
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
