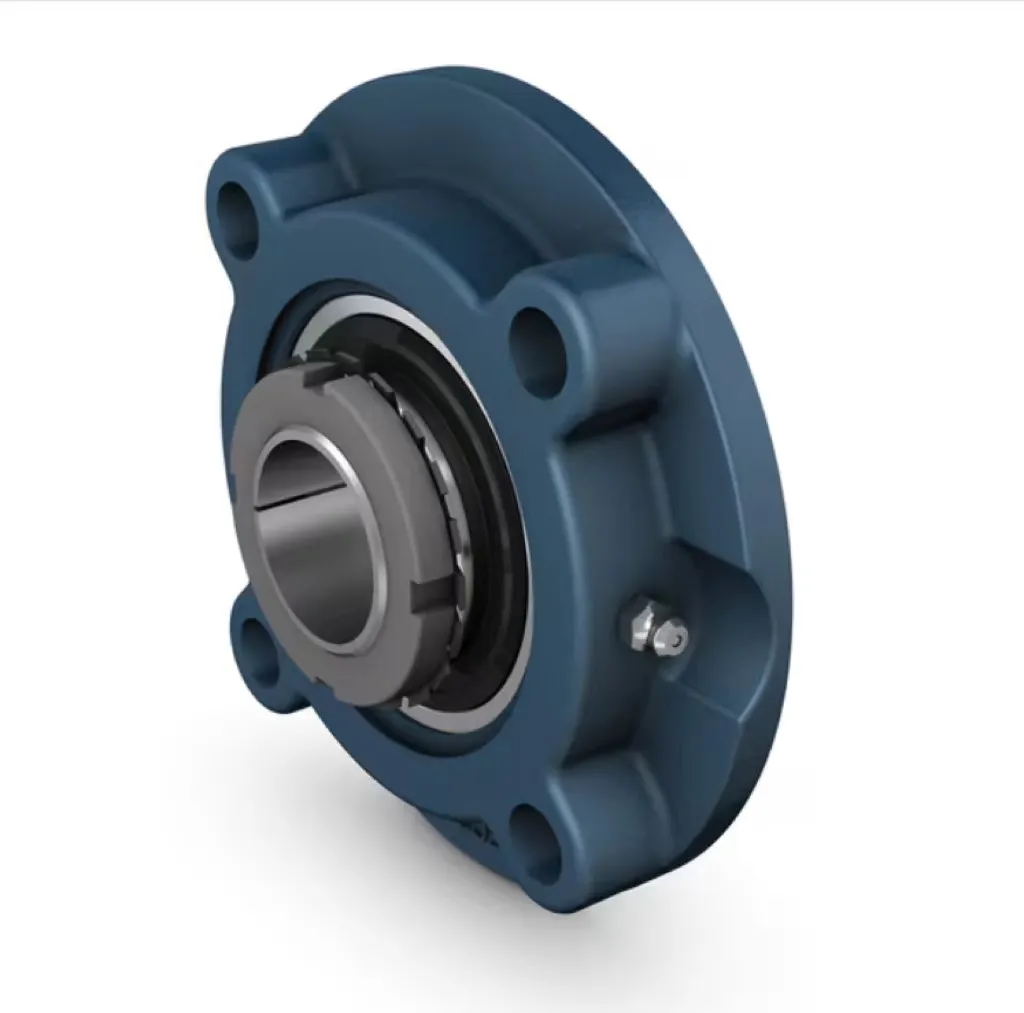

Flanged ball bearing unit with composite or cast metal housing
  • Flanged ball bearing unit with composite or cast metal housing

UKFC207 Flanged Housing Bearing Unit UKFC 200 Series Bearing

down load to pdf

Details

Tags

Flanged ball bearing unit with composite or cast metal housing



UKFC207 Flanged Housing Bearing Unit UKFC 200 Series BearingUKFC207 Flanged Housing Bearing Unit UKFC 200 Series Bearing



d
30 mm
 Bore diameter
H
135 mm
 Height flange
U
35,7 mm
 Total height unit
Cr
27.500 N
 Basic dynamic load rating, radial
C0r
15.300 N
 Basic static load rating, radial
Cur
800 N
 Fatigue load limit, radial
≈m
1,784 kg
 Weight
J
110 mm
 Pitch circle diameter (holes)
N
14 mm
 Fixing bore
N1
77,8 mm
 Distance fixing bore
T1
8 mm
 Height spigot
Z
90 mm
 Diameter spigot

h8
 Diameter spigot clearance
n
4
 Number of screwing holes
A
26 mm
 Height housing
A1
9 mm
 Thickness of flange
A2
11 mm
 Distance raceway
B
29 mm
 Width
B1
43 mm
 Locking collar total width
d3
52 mm
 Outside diameter eccentric locking collar
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
