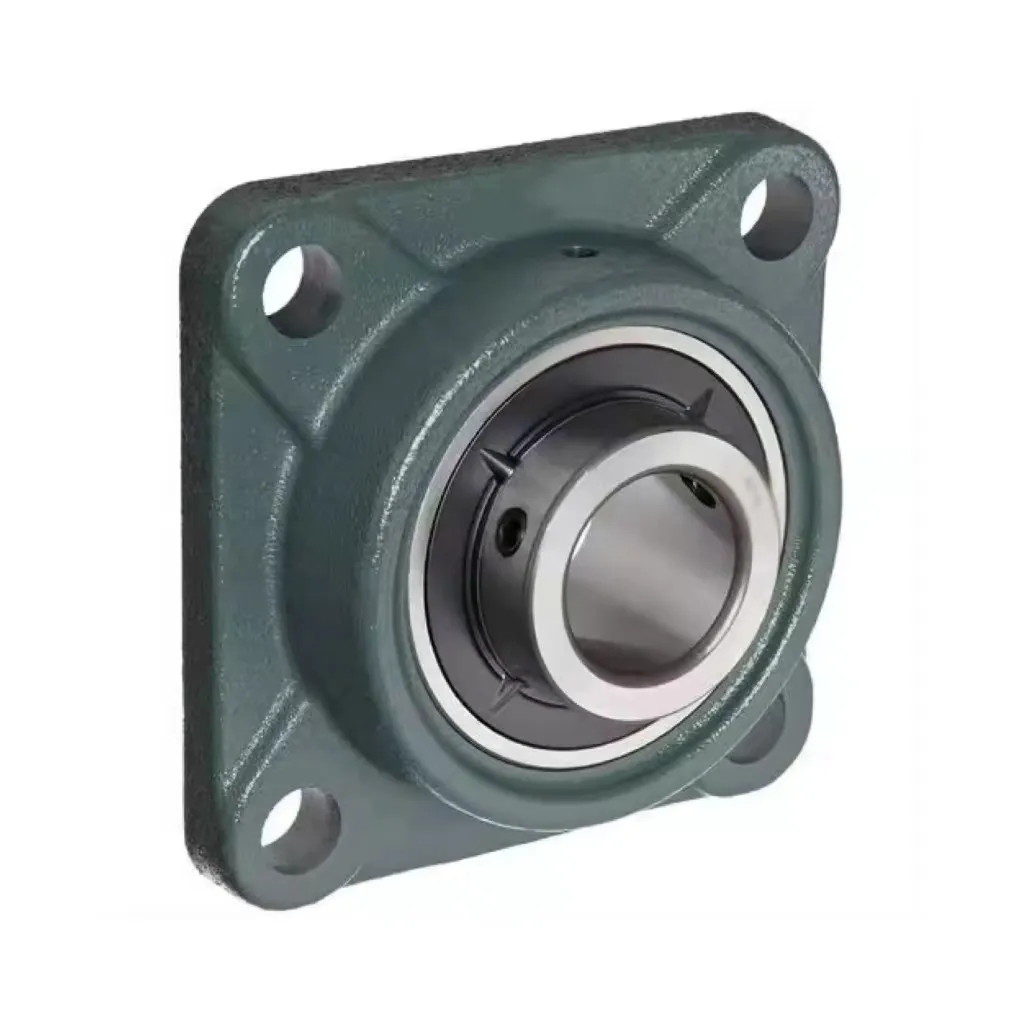

UKF218 Pillow Housings Pillow Block Bearing

down load to pdf

Details

Tags

UKF218 Pillow Housings Pillow Block BearingUKF218 Pillow Housings Pillow Block Bearing

d
80 mm
 Bore diameter
L
235 mm
 Flange width
Cr
102,000 N
 Basic dynamic load rating, radial
C0r
72,000 N
 Basic static load rating, radial
Cur
3,350 N
 Fatigue load limit, radial
≈m
11.16 kg
 Weight
J
187 mm
 Distance fixing bore
N
23 mm
 Fixing bore
n
4
 Number of screwing holes
A
68 mm
 Height housing
A1
26 mm
 Thickness of flange
A2
40 mm
 Distance raceway
B
51 mm
 Width
B1
86 mm
 Locking collar total width
d3
120 mm
 Outside diameter eccentric locking collar
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
