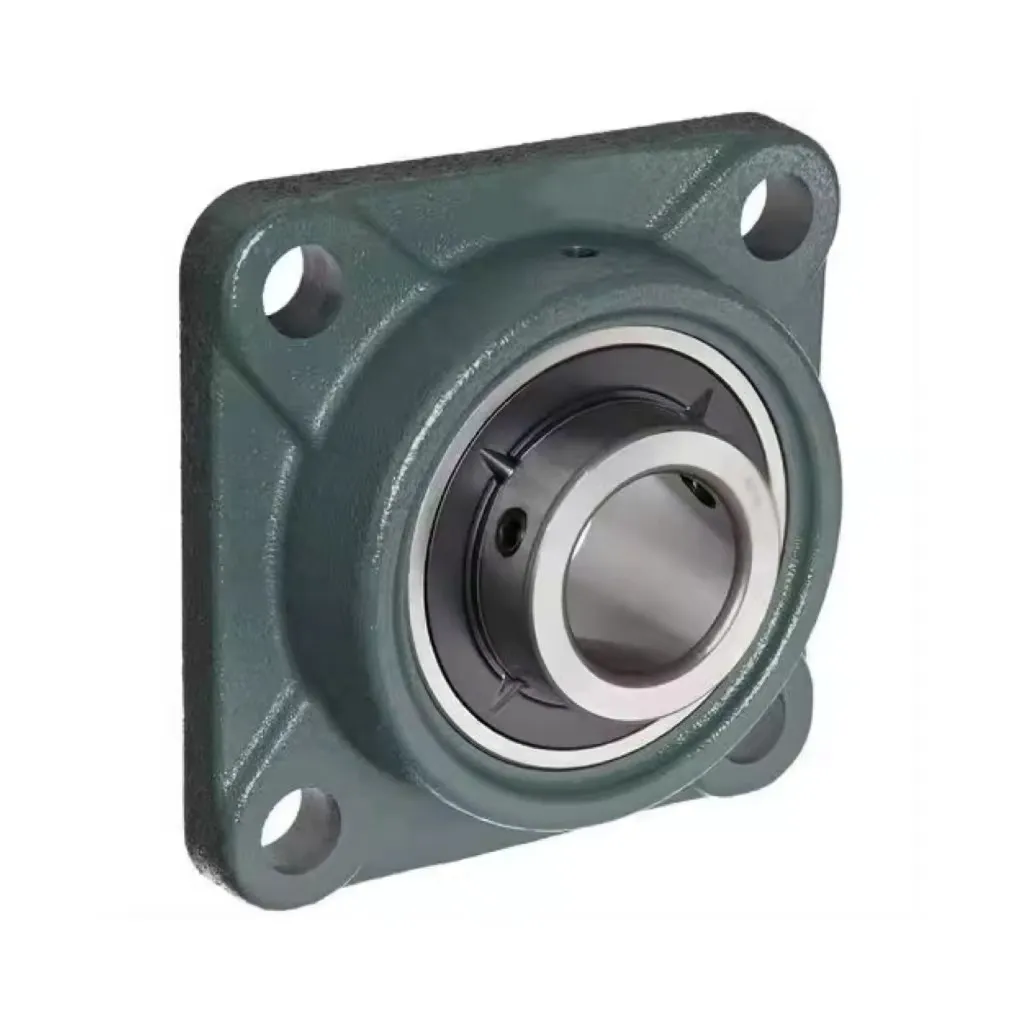

UKF217 Pillow Housings Pillow Block Bearing

down load to pdf

Details

Tags

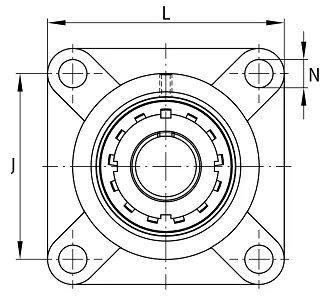

d
75 mm
 Bore diameter
L
220 mm
 Flange width
Cr
88,000 N
 Basic dynamic load rating, radial
C0r
64,000 N
 Basic static load rating, radial
Cur
3,050 N
 Fatigue load limit, radial
≈m
9.55 kg
 Weight
J
175 mm
 Distance fixing bore
N
23 mm
 Fixing bore
n
4
 Number of screwing holes
A
63 mm
 Height housing
A1
26 mm
 Thickness of flange
A2
36 mm
 Distance raceway
B
48 mm
 Width
B1
82 mm
 Locking collar total width
d3
110 mm
 Outside diameter eccentric locking collar
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
