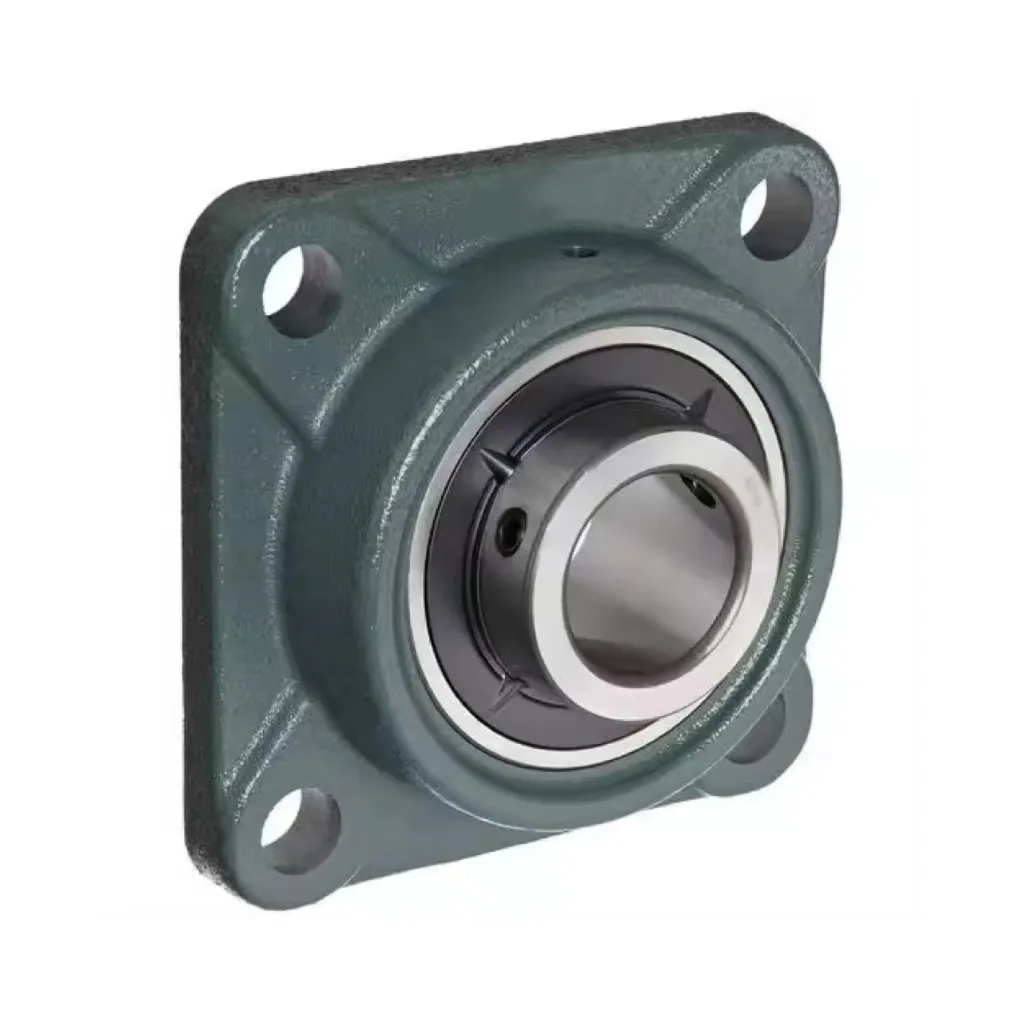

UKF213 Pillow Housings Pillow Block Bearing

down load to pdf

Details

Tags

UKF213 Pillow Housings Pillow Block BearingUKF213 Pillow Housings Pillow Block Bearing

d
60 mm
 Bore diameter
L
187 mm
 Flange width
Cr
61,000 N
 Basic dynamic load rating, radial
C0r
40,000 N
 Basic static load rating, radial
Cur
2,090 N
 Fatigue load limit, radial
≈m
5.06 kg
 Weight
J
149 mm
 Distance fixing bore
N
19 mm
 Fixing bore
n
4
 Number of screwing holes
A
50 mm
 Height housing
A1
20 mm
 Thickness of flange
A2
30 mm
 Distance raceway
B
41 mm
 Width
B1
65 mm
 Locking collar total width
d3
85 mm
 Outside diameter eccentric locking collar
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
