UKF207
  • UKF207

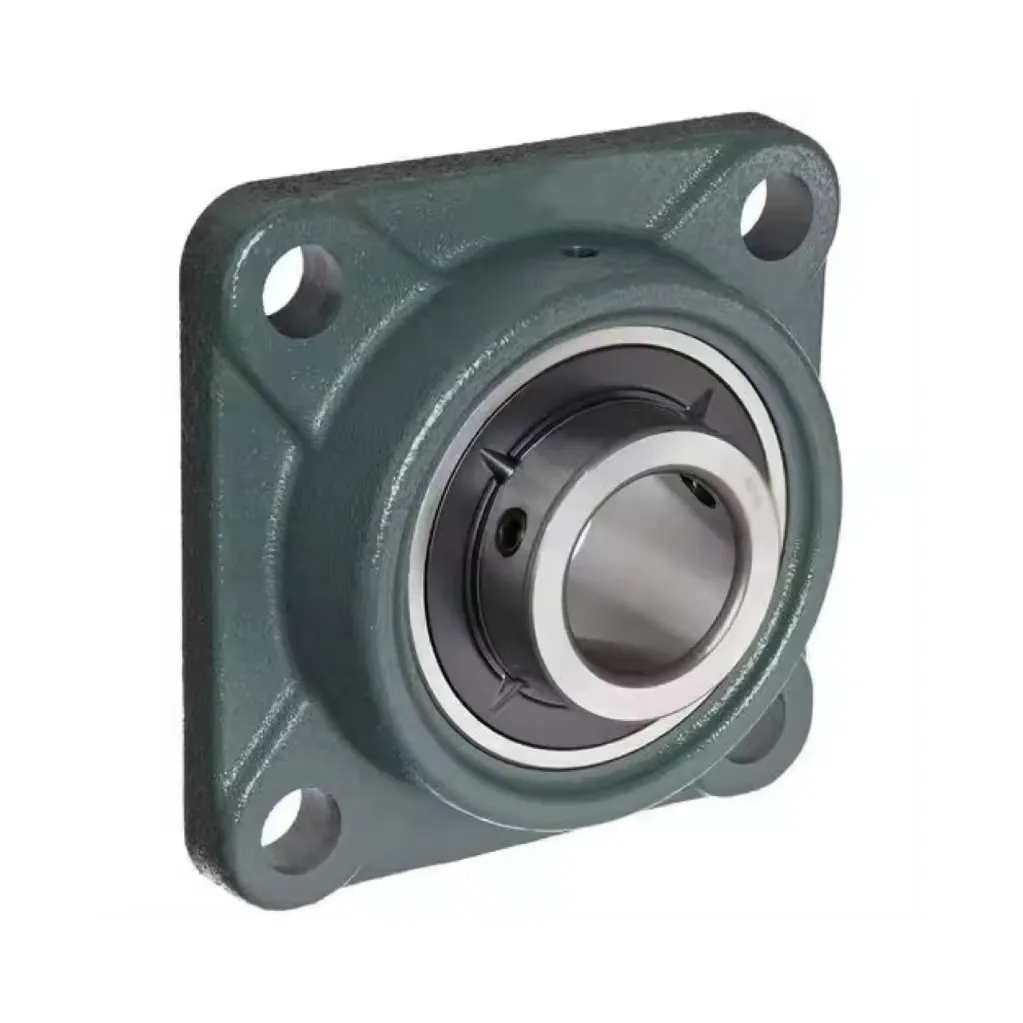

UKF211 Pillow Housings Pillow Block Bearing

down load to pdf

Details

Tags

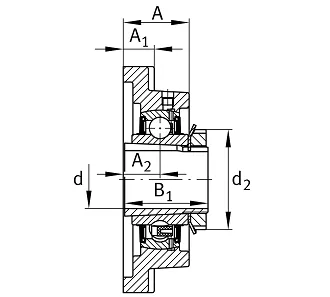

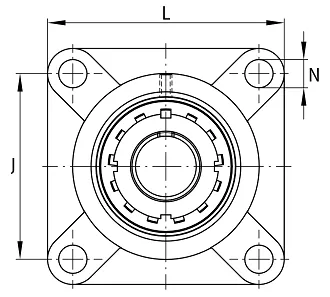

d
50 mm
 Bore diameter
L
163 mm
 Flange width
Cr
46,000 N
 Basic dynamic load rating, radial
C0r
29,000 N
 Basic static load rating, radial
Cur
1,520 N
 Fatigue load limit, radial
≈m
3.48 kg
 Weight
J
130 mm
 Distance fixing bore
N
19 mm
 Fixing bore
n
4
 Number of screwing holes
A
43 mm
 Height housing
A1
20 mm
 Thickness of flange
A2
25 mm
 Distance raceway
B
36 mm
 Width
B1
59 mm
 Locking collar total width
d3
75 mm
 Outside diameter eccentric locking collar
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
