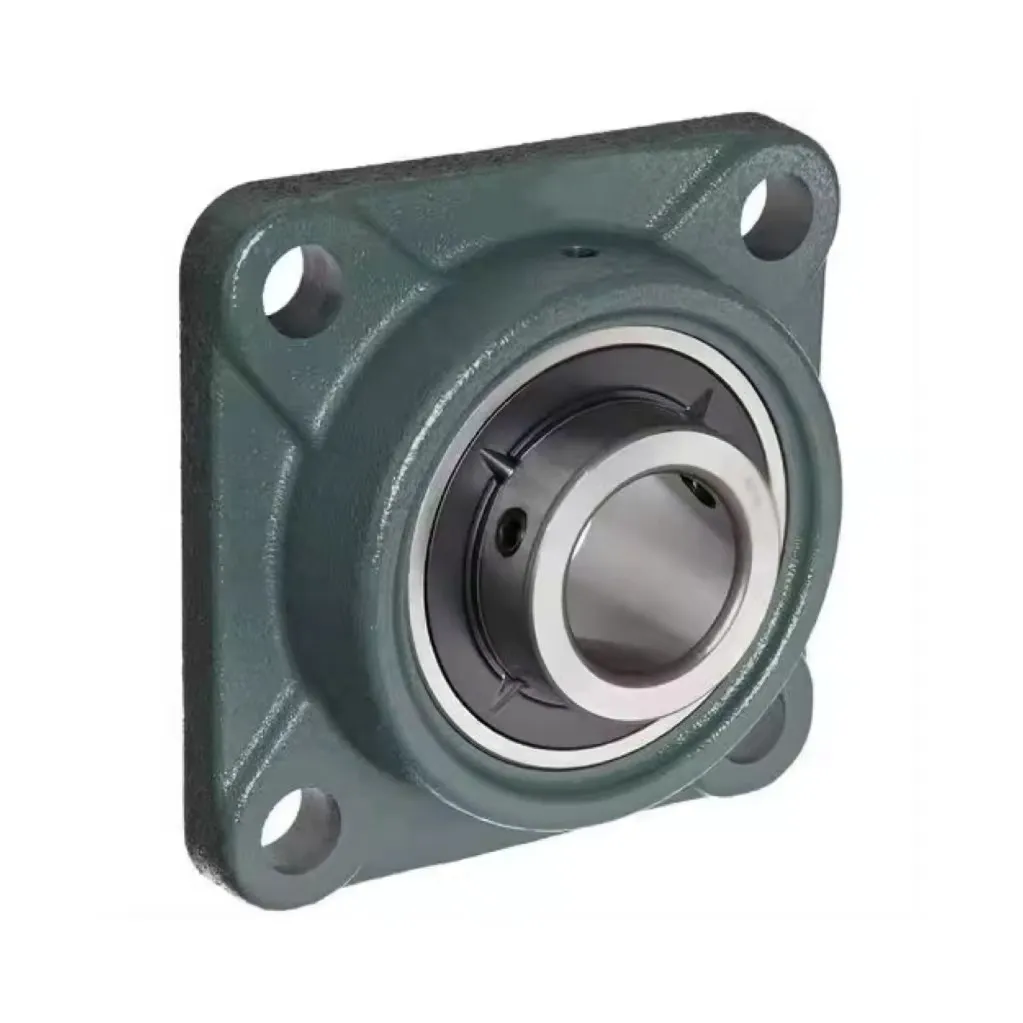

UKF207
  • UKF207

UKF208 Pillow Housings Pillow Block Bearing

Details

Tags

d
35 mm
Bore diameter
L
130 mm
Flange width
Cr
34,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
Cur
1,030 N
Fatigue load limit, radial
≈m
1.99 kg
Weight
J
102 mm
Distance fixing bore
N
16 mm
Fixing bore
n
4
Number of screwing holes
A
36 mm
Height housing
A1
16 mm
Thickness of flange
A2
21 mm
Distance raceway
B
31 mm
Width
B1
46 mm
Locking collar total width
d3
58 mm
Outside diameter eccentric locking collar
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.
