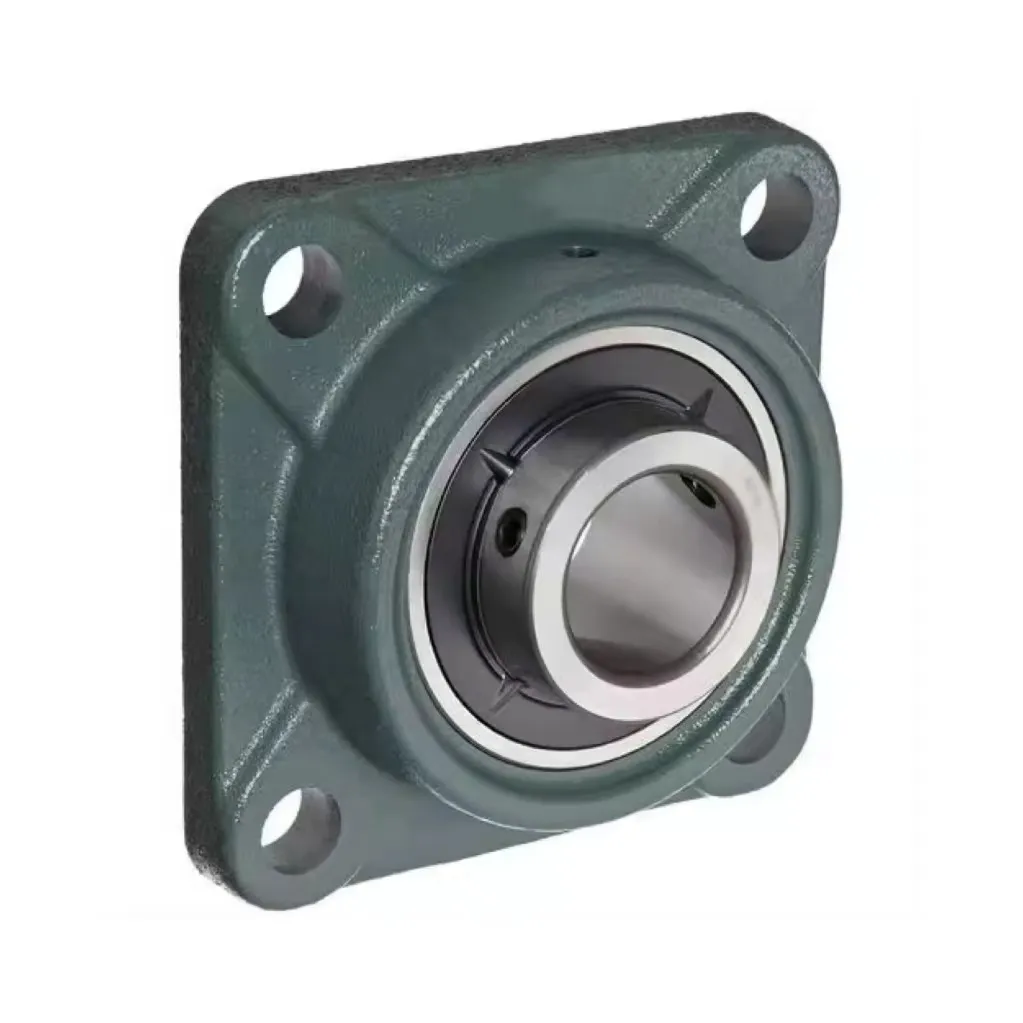

UKF207 Pillow Housings Pillow Block Bearing

down load to pdf

Details

Tags

UKF207 Pillow Housings Pillow Block BearingUKF207 Pillow Housings Pillow Block Bearing

d
30 mm
 Bore diameter
L
117 mm
 Flange width
Cr
27,500 N
 Basic dynamic load rating, radial
C0r
15,300 N
 Basic static load rating, radial
Cur
800 N
 Fatigue load limit, radial
≈m
1.57 kg
 Weight
J
92 mm
 Distance fixing bore
N
14 mm
 Fixing bore
n
4
 Number of screwing holes
A
34 mm
 Height housing
A1
16 mm
 Thickness of flange
A2
19 mm
 Distance raceway
B
29 mm
 Width
B1
43 mm
 Locking collar total width
d3
52 mm
 Outside diameter eccentric locking collar
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
