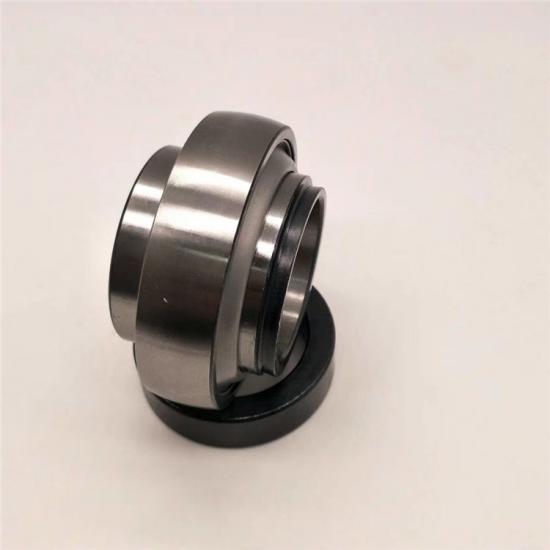

UCX07 Insert Bearing with round bore

35*80*21mm UCX07 round hole outer spherical bearings are produced from bearing steel. We have the largest inventory and can ship to you at any time.

CONTACT NOW down load to pdf

Details

Tags

Application:

UCX07 insert bearings are widely used in various kinds of industries and machines such as car wash equipment, construction machinery, fans, HVAC, food processing, metal working machinery, textile machinery, paper making & paper converting equipment & woodworking machinery.

UCX07 Bearing Specification:

Inner Diameter :35mm
Outer Diameter :80mm
Inner Race Width : 49.2mm
Outer Race Width : 21mm
Material :Chrome steel

We Can Produce UCX Series Bearing Insert For You:

Bearing No.	Dimensions	mm								ratings N	ratings N	Weight (kg)
		in.
	d	D	B	C	S	S1	G	d3	F
UCX05	25	62	38.1	19	15.9	22.2	5	M6×1	5.0	14970	10040	0.39
UCX05-13	13/16	2.4409	1.5000	0.7480	0.626	0.874	0.197	1/4-28UNF	0.197
UCX05-14	7/8
UCX05-15	15/16
UCX05-16	1
UCX06	30	72	42.9	20	17.5	25.4	7	M8×1	5.7	19750	13670	0.68
UCX06-17	1-1/16	2.8346	1.6890	0.7874	0.689	1.000	0.276	5/16-24UNF	0.224
UCX06-18	1-1/8
UCX06-19	1-3/16
UCX07	35	80	49.2	21	19	30.2	8	M8×1	6.2
UCX07-21	1-5/16	3.1496	1.9370	0.8268	0.748	1.189	0.315	5/16-24UNF	0.244	22710	15940	0.82
UCX07-22	1-3/8
UCX07-23	1-7/16
UCX08	40	85	49.2	22	19	30.2	8	M8×1	6.4	24360	17710	0.93
UCX08-24	1-1/2	3.3465	1.9370	0.8661	0.748	1.189	0.315	5/16-24UNF	0.252
UCX08-25	1-9/16
UCX09	45	90	51.6	24	19	32.6	10	M10×1	6.5	26980	19840	1.00
UCX09-26	1-5/8	3.5433	2.0315	0.9449	0.748	1.283	0.394	3/8-24UNF	0.256
UCX09-27	1-11/16
UCX09-28	1-3/4
UCX210	50	10	55.6	25	22.2	33.4	10	M10×1	7.0	33370	25110	1.35
UCX210-30	-7/8	3.9370	2.1890	0.9843	0.874	1.315	0.394	3/8-24UNF	0.276
UCX210-31	1-15/16
UCX211	55	110	65.1	27	25.4	39.7	10	M10*1	7.6	36740	27970	1.90
UCX211-33	2-1/16	4.3307	2.5630	1.0630	1.000	1.563	0.394	3/8-24UNF	0.299
UCX211-34	2-1/8
UCX211-35	2-3/16
UCX212	60	120	65.1	28	25.4	39.7	10	M10×1	8.5	44010	34180	2.27
UCX212-38	2-3/8	4.3307	2.5630	1.1024	1.000	1.563	0.394	3/8-24UNF	0.335
UCX212-39	2-7/16
UCX213	65	125	74.6	29	30.2	44.4	12	M12×1.5	8.9	46790	37590	2.45
UCX213-40	2-1/2	4.9213	2.9370	1.1417	1.189	1.748	0.472	1/2-20UNF	0.350
UCX213-41	2-9/16
UCX214	70	130	77.8	30	33.3	44.5	12	M12×1.5	9.2	50850	41260	2.47
UCX214-42	2-3/8	5.1181	3.0630	1.1811	1.311	1.752	0.472	1/2-20UNF	0.362
UCX214-43	2-11/16
UCX214-44	2-3/4
UCX215	75	140	82.6	32	33.3	49.3	12	M12×1.5	9.5	55040	45090	3.11
UCX215-45	2-13/16	5.5118	3.2520	1.2598	1.311	1.9409	0.472	1/2-20UNF	0.374
UCX215-46	2-7/8
UCX215-47	2-15/16
UCX215-48	3
UCX16	80	150	85.7	34	34.1	51.6	12	M12×1.5	10.2	64010	53280	3.79
UCX16-49	3-1/16	5.9055	3.3740	1.3386	1.343	2.031	0.472	1/2-20UNF	0.402
UCX16-50	3-1/8
UCX16-51	3-3/16
UCX17	85	160	96	36	39.7	56.3	12	M12×1.5	11.2	73830	60760	4.82
