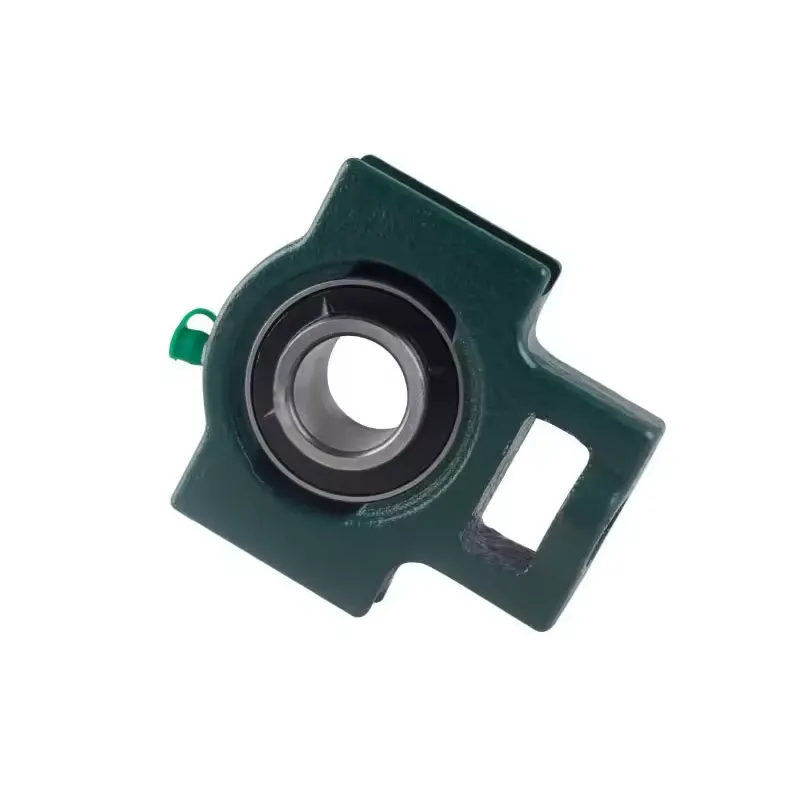

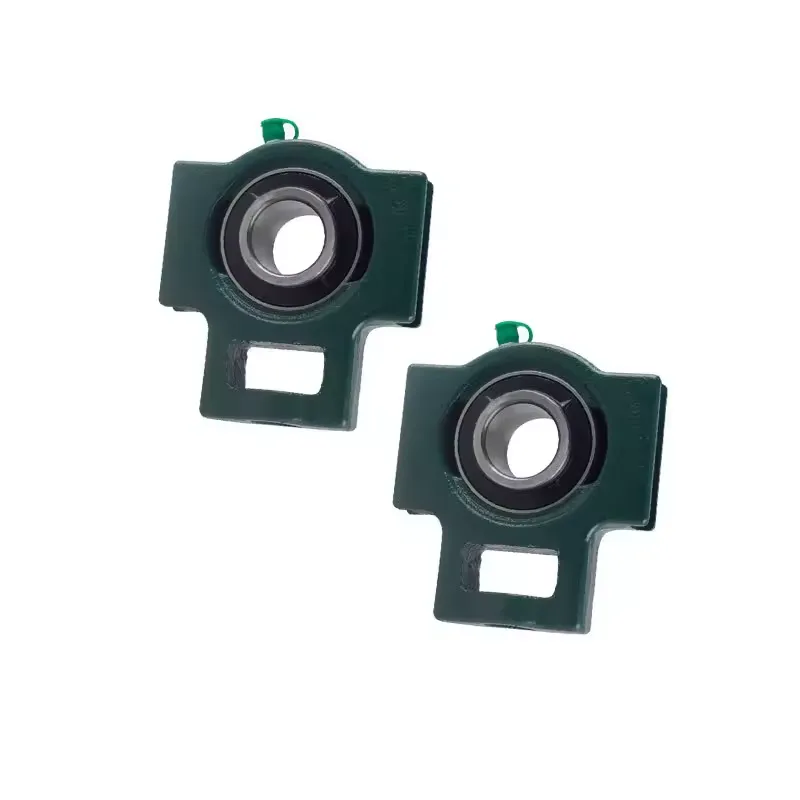

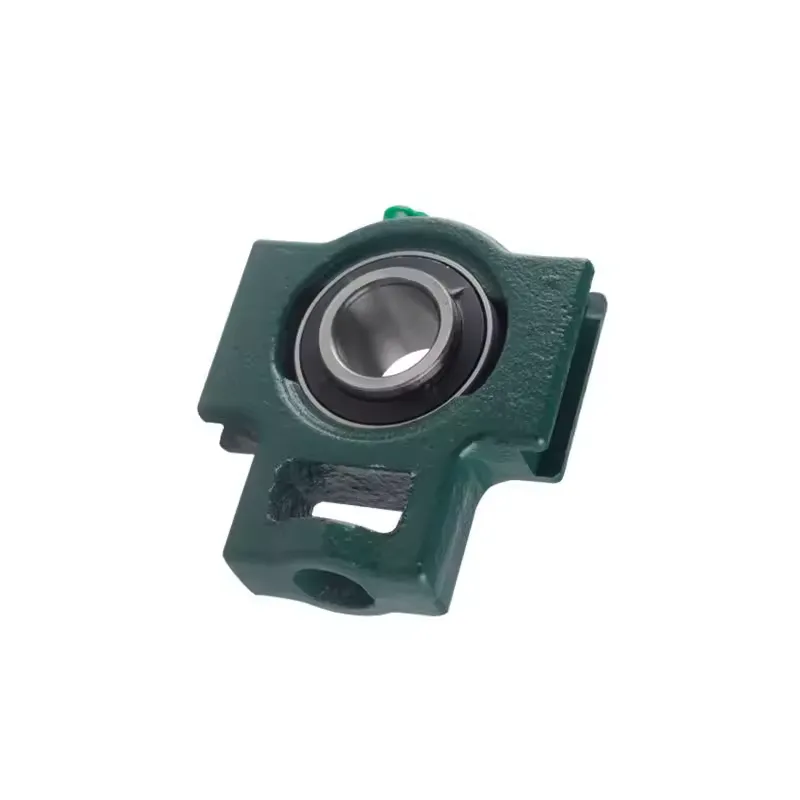

UCT218-56 Take Up Housing Bearing Unit Pillow Block Bearing

Details

Tags

Housing units UCT, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for linear motion





d
88,9 mm
Bore diameter
H
215 mm
Height
L
275 mm
Length total
≈m
12,37 kg
Weight
A1
28 mm
Width guidance groove

0,3 mm
Upper width guidance groove tolerance

0 mm
Lower width guidance groove tolerance
H1
190 mm
Distance guidance grooves

0 mm
Upper distance guidance groove tolerance

-0,8 mm
Lower distance guidance groove tolerance
N
47 mm
Fixing bore
L1
170 mm
Distance shaft axis
L2
30 mm
Length fixed link
L3
140 mm
Length guidance groove
A
80 mm
Width housing fixing side
N1
40 mm
Width recess
N2
80 mm
Height recess
B
96 mm
Width inner ring
S1
56,3 mm
Distance of raceway to locking collar
T
130 mm
Height housing fixing side
Q
M6
Connection thread for lubrication
A2
55 mm
Width housing
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.
