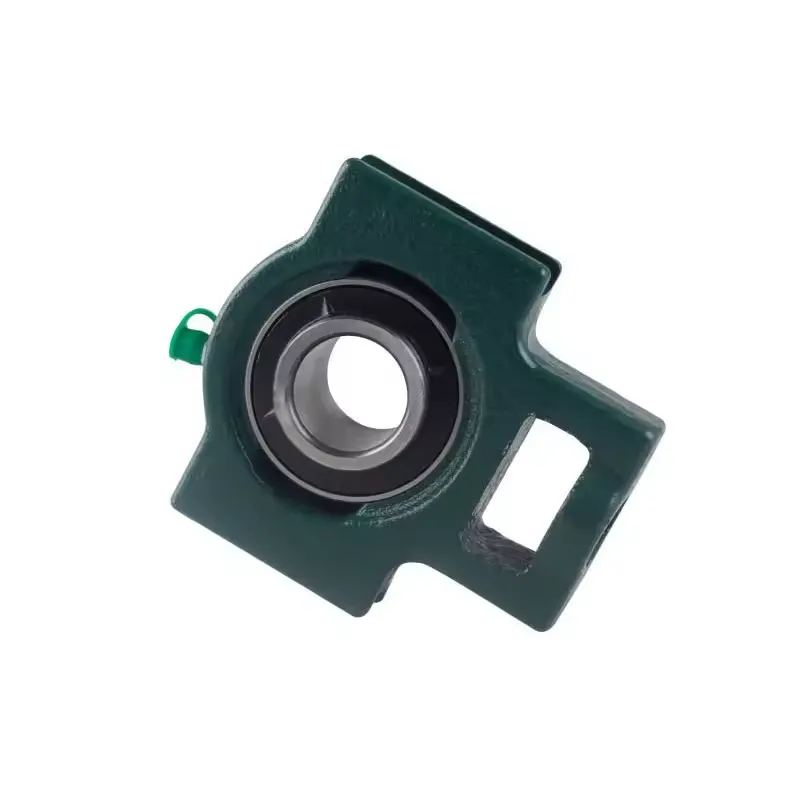

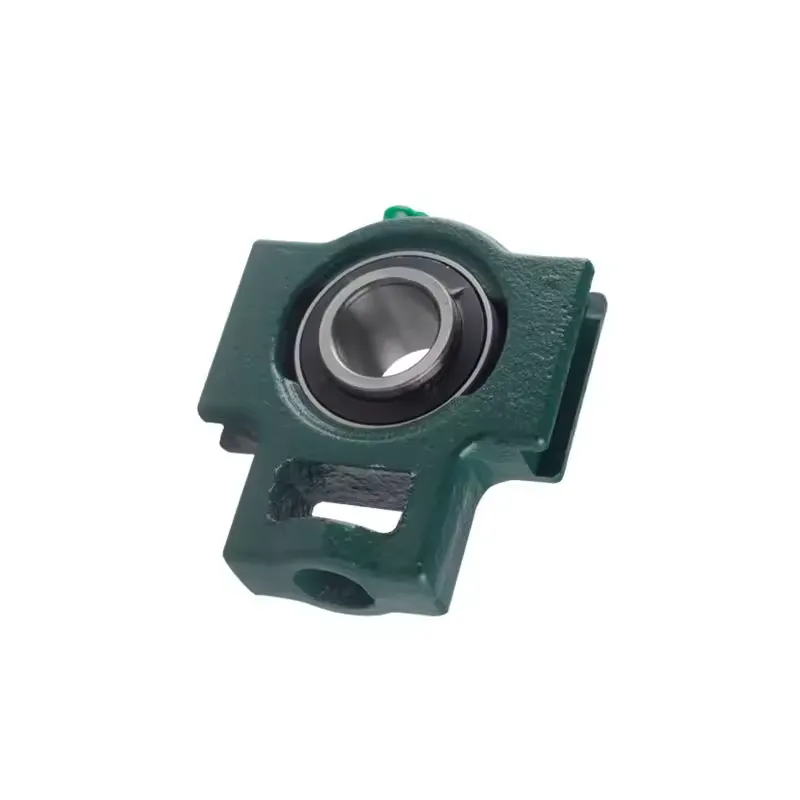

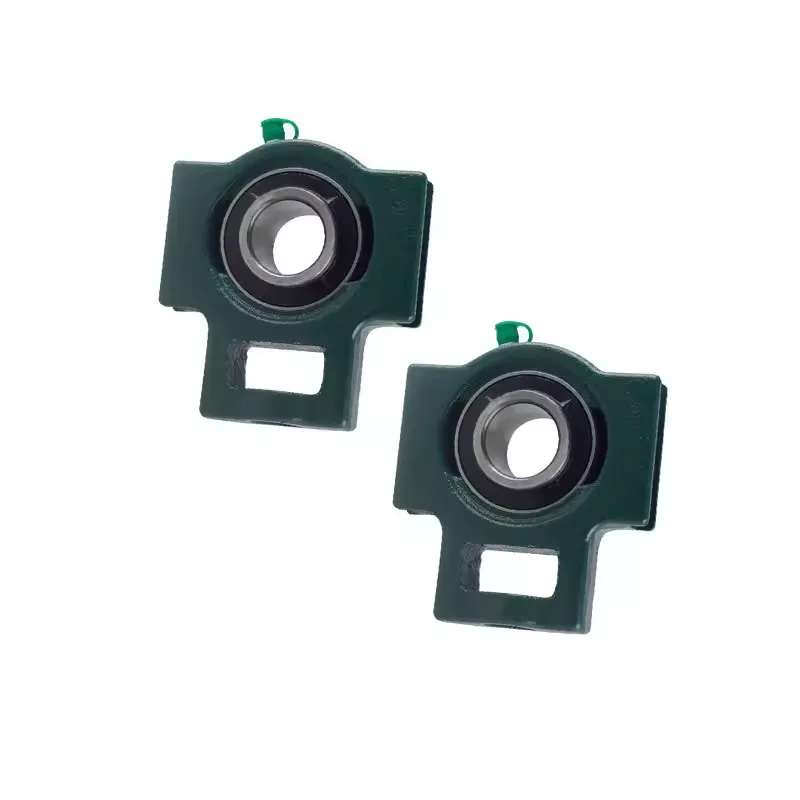

UCT216-49 Take Up Housing Bearing Unit Pillow Block Bearing

Details

Tags

Housing units UCT, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for linear motion





d
77,79 mm
Bore diameter
H
184 mm
Height
L
235 mm
Length total
≈m
8,27 kg
Weight
A1
26 mm
Width guidance groove

0,3 mm
Upper width guidance groove tolerance

0 mm
Lower width guidance groove tolerance
H1
165 mm
Distance guidance grooves

0 mm
Upper distance guidance groove tolerance

-0,8 mm
Lower distance guidance groove tolerance
N
41 mm
Fixing bore
L1
140 mm
Distance shaft axis
L2
21 mm
Length fixed link
L3
121 mm
Length guidance groove
A
70 mm
Width housing fixing side
N1
32 mm
Width recess
N2
70 mm
Height recess
B
82,6 mm
Width inner ring
S1
49,3 mm
Distance of raceway to locking collar
T
111 mm
Height housing fixing side
Q
M6
Connection thread for lubrication
A2
51 mm
Width housing
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.
