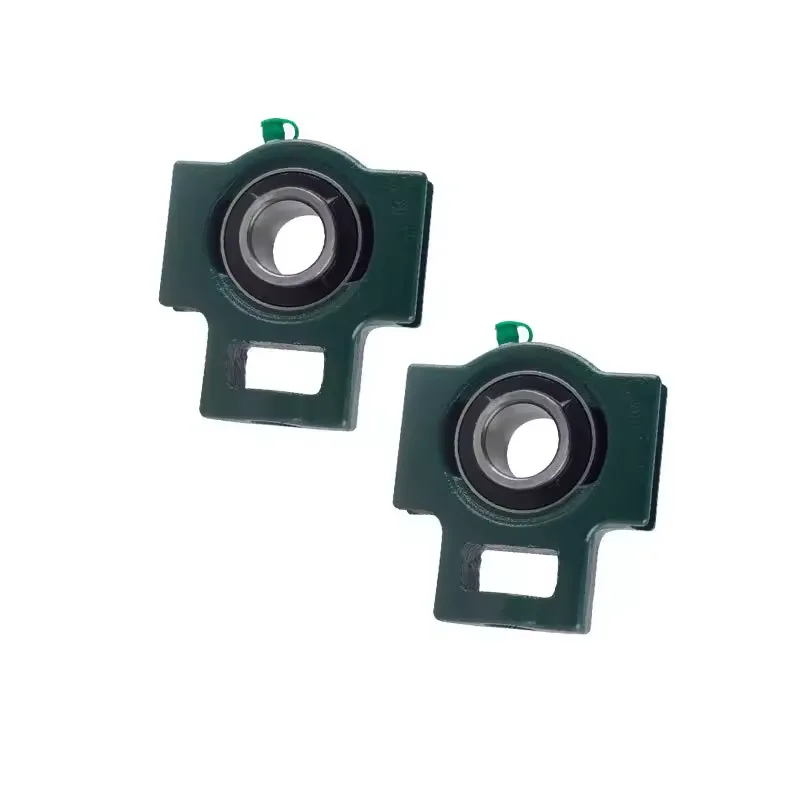

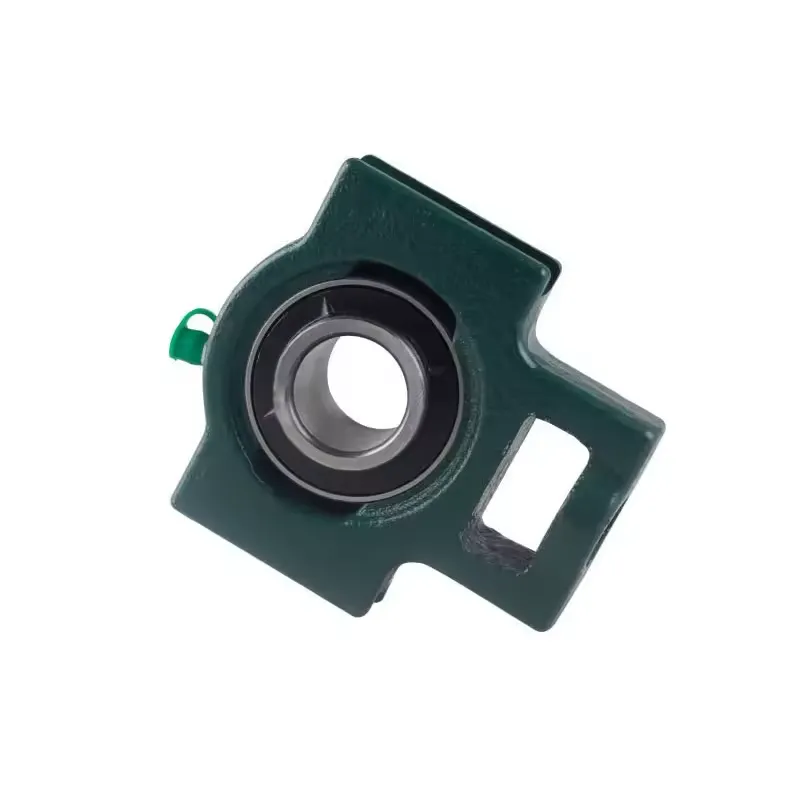

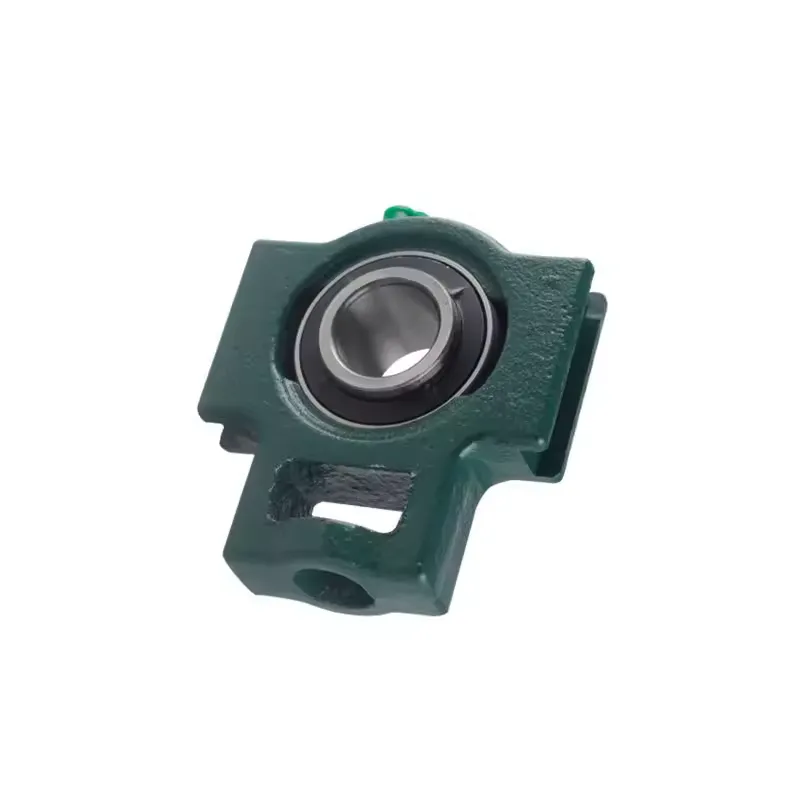

Name: UCT211-34 Take Up Housing Bearing Unit Pillow Block Bearing
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

UCT211-34 Take Up Housing Bearing Unit Pillow Block Bearing

CONTACT NOW down load to pdf

Details

Tags

Housing units UCT, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for linear motion

d	53,98 mm	Bore diameter
H	146 mm	Height
L	171 mm	Length total
≈m	3,87 kg	Weight
A₁	22 mm	Width guidance groove
	0,3 mm	Upper width guidance groove tolerance
	0 mm	Lower width guidance groove tolerance
H₁	130 mm	Distance guidance grooves
	0 mm	Upper distance guidance groove tolerance
	-0,8 mm	Lower distance guidance groove tolerance
N	35 mm	Fixing bore
L₁	106 mm	Distance shaft axis
L₂	19 mm	Length fixed link
L₃	95 mm	Length guidance groove
A	64 mm	Width housing fixing side
N₁	25 mm	Width recess
N₂	64 mm	Height recess
B	55,6 mm	Width inner ring
S₁	33,4 mm	Distance of raceway to locking collar
T	102 mm	Height housing fixing side
Q	M6	Connection thread for lubrication
A₂	38 mm	Width housing
T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
