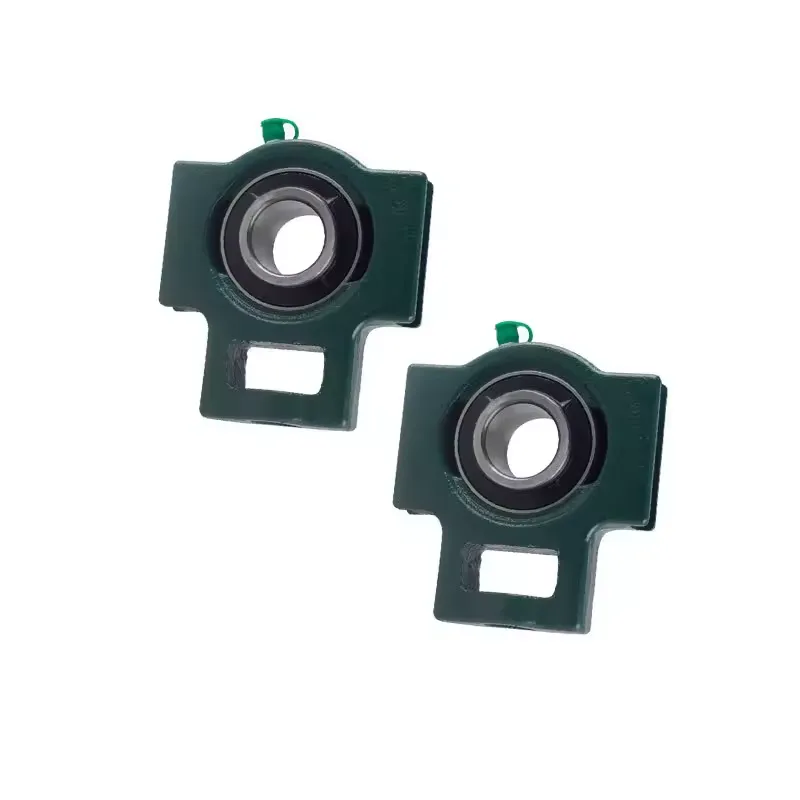

UCT209 Take Up Housing Bearing Unit Pillow Block Bearing

CONTACT NOW down load to pdf

Details

Tags

Housing units UCT, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for linear motion

d	45 mm	Bore diameter
H	117 mm	Height
L	144 mm	Length total
≈m	2,404 kg	Weight
A₁	16 mm	Width guidance groove
	0,2 mm	Upper width guidance groove tolerance
	0 mm	Lower width guidance groove tolerance
H₁	102 mm	Distance guidance grooves
	0 mm	Upper distance guidance groove tolerance
	-0,5 mm	Lower distance guidance groove tolerance
N	29 mm	Fixing bore
L₁	87 mm	Distance shaft axis
L₂	16 mm	Length fixed link
L₃	83 mm	Length guidance groove
A	49 mm	Width housing fixing side
N₁	19 mm	Width recess
N₂	49 mm	Height recess
B	49,2 mm	Width inner ring
S₁	30,2 mm	Distance of raceway to locking collar
T	83 mm	Height housing fixing side
Q	M6	Connection thread for lubrication
A₂	35 mm	Width housing
T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
