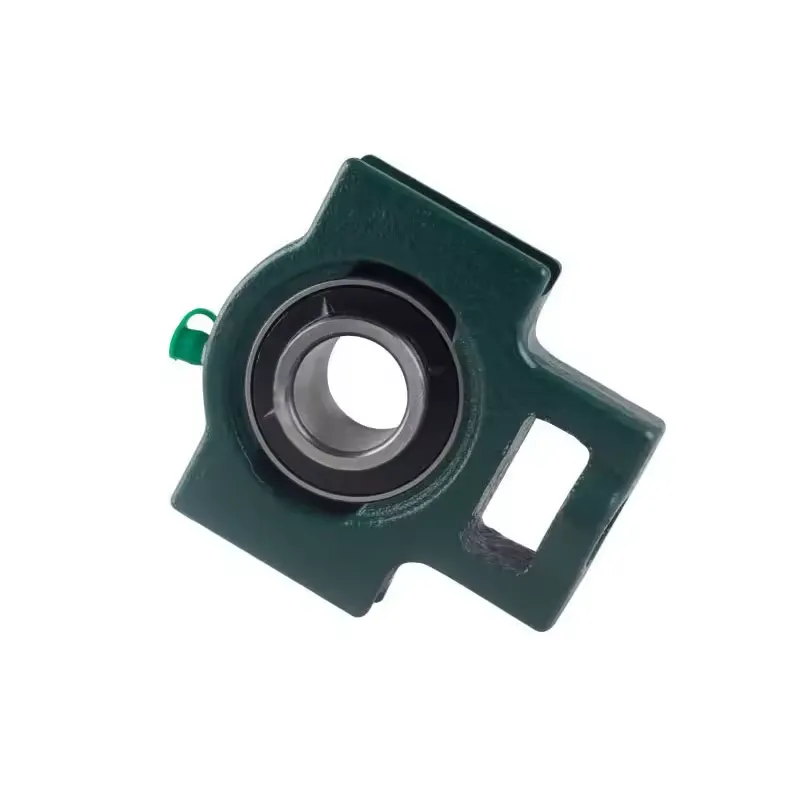

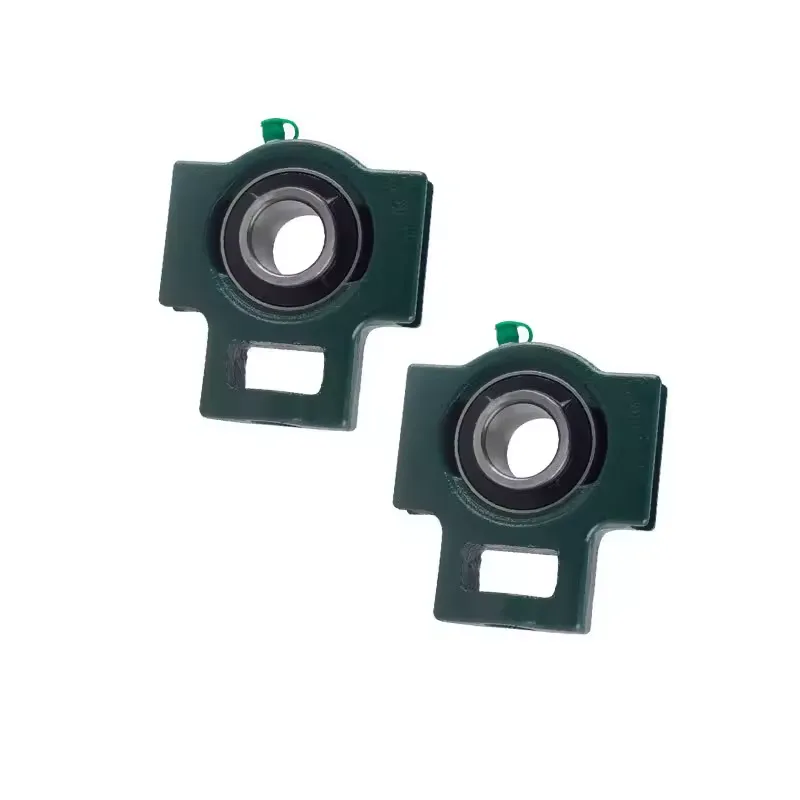

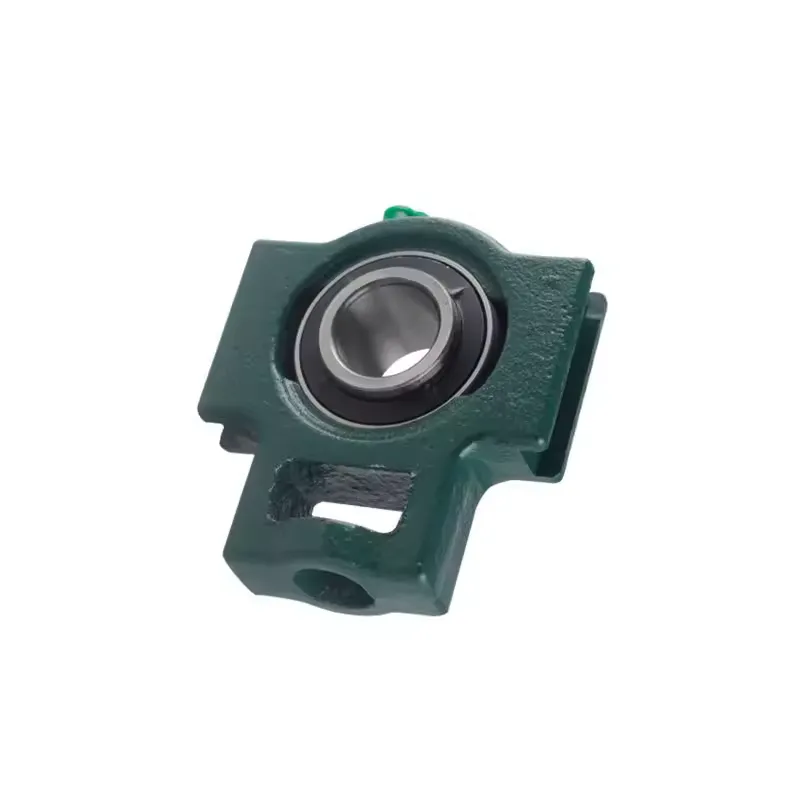

UCT209-27 Take Up Housing Bearing Unit Pillow Block Bearing

Details

Tags

Housing units UCT, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for linear motion





d
42,86 mm
Bore diameter
H
117 mm
Height
L
144 mm
Length total
≈m
2,381 kg
Weight
A1
16 mm
Width guidance groove

0,2 mm
Upper width guidance groove tolerance

0 mm
Lower width guidance groove tolerance
H1
102 mm
Distance guidance grooves

0 mm
Upper distance guidance groove tolerance

-0,5 mm
Lower distance guidance groove tolerance
N
29 mm
Fixing bore
L1
87 mm
Distance shaft axis
L2
16 mm
Length fixed link
L3
83 mm
Length guidance groove
A
49 mm
Width housing fixing side
N1
19 mm
Width recess
N2
49 mm
Height recess
B
49,2 mm
Width inner ring
S1
30,2 mm
Distance of raceway to locking collar
T
83 mm
Height housing fixing side
Q
M6
Connection thread for lubrication
A2
35 mm
Width housing
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.
