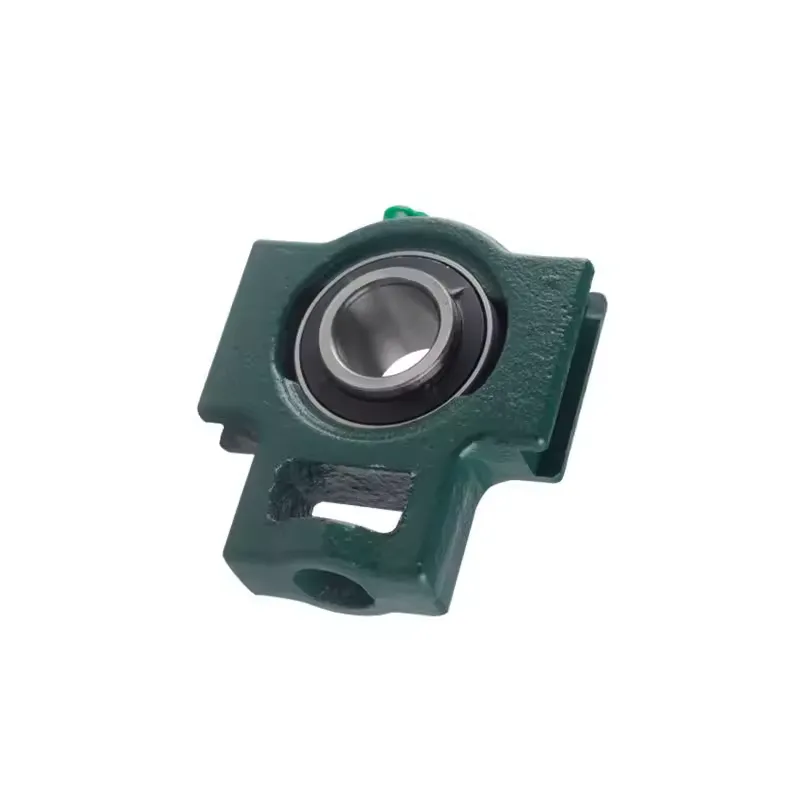

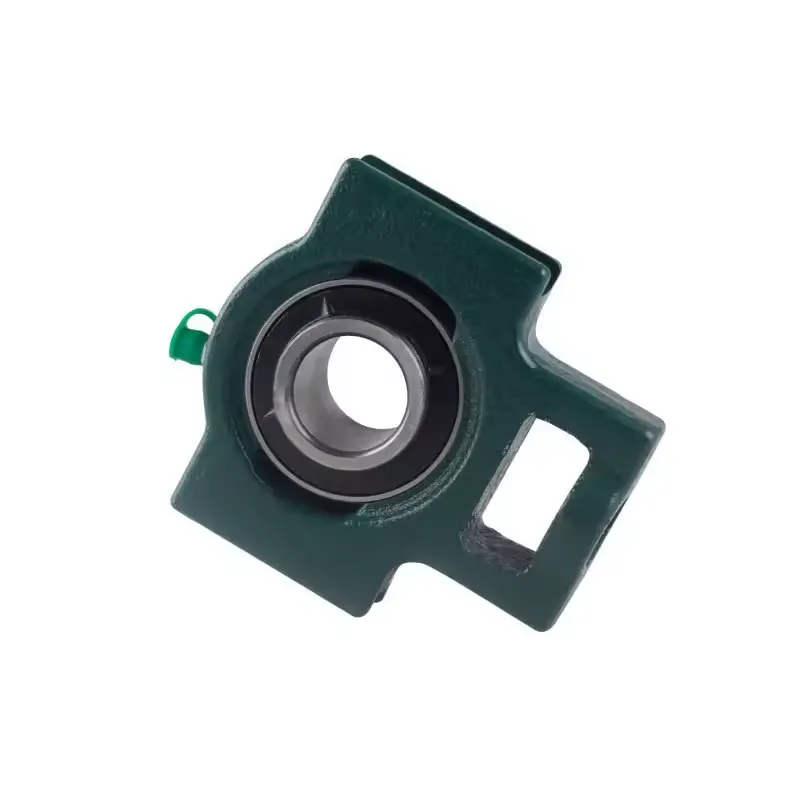

Housing units UCT, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for linear motion
d |
31,75 mm
|
Bore diameter |
H |
102 mm
|
Height |
L |
113 mm
|
Length total |
≈m |
1,188 kg
|
Weight |
A1 |
12 mm
|
Width guidance groove |
0,2 mm
|
Upper width guidance groove tolerance | |
0 mm
|
Lower width guidance groove tolerance | |
H1 |
89 mm
|
Distance guidance grooves |
0 mm
|
Upper distance guidance groove tolerance | |
-0,5 mm
|
Lower distance guidance groove tolerance | |
N |
22 mm
|
Fixing bore |
L1 |
70 mm
|
Distance shaft axis |
L2 |
10 mm
|
Length fixed link |
L3 |
57 mm
|
Length guidance groove |
A |
37 mm
|
Width housing fixing side |
N1 |
16 mm
|
Width recess |
N2 |
37 mm
|
Height recess |
B |
38,1 mm
|
Width inner ring |
S1 |
22,2 mm
|
Distance of raceway to locking collar |
T |
56 mm
|
Height housing fixing side |
Q |
M6
|
Connection thread for lubrication |
A2 |
28 mm
|
Width housing |
Tmin |
-20 °C
|
Operating temperature min. |
Tmax |
120 °C
|
Operating temperature max. |
