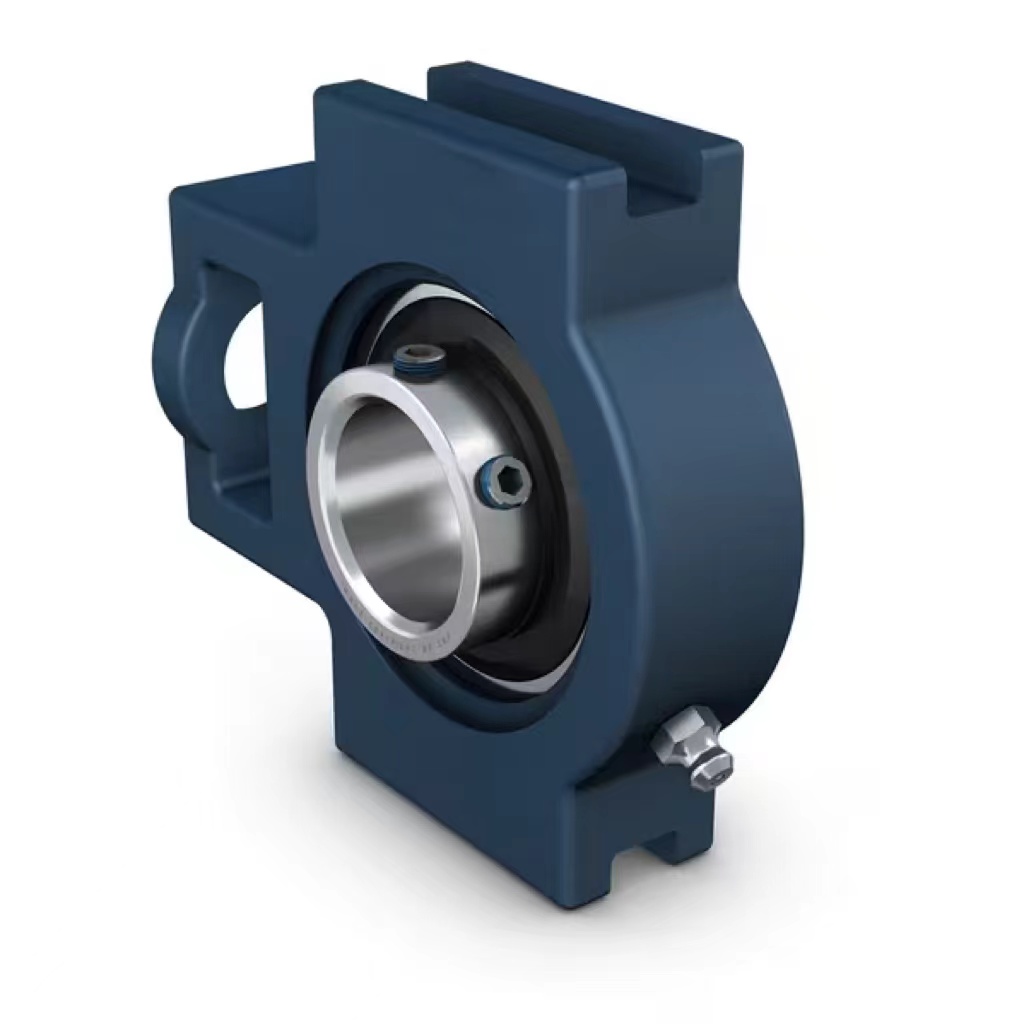

UCT205 Cast Iron Take Up Unit Bearing

Take-up ball bearing units, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a grey cast iron housing. Typically mounted in take-up frames, the unit has an inner ring extended on both sides and is locked by tightening two set screws on the inner ring, which makes it easy to mount. Units with designation suffix /H feature a 120° angle of separation between the set screws that contributes to a higher stability and a better load balance.

CONTACT NOW down load to pdf

Details

Tags

Bearing Units UCT205 is consist of the insert ball bearing and house. The housing are with cast iron material,and the bearing are main with Chrome steel Gcr15. The bearing unit are with compact design ,they can alignwith easily during operation and can be conveniently mounted or dismounted. When mounted in appropriate housings to form housed bearing units, they are able tocompensate for initial errors of alignment.

Spec Of FYH Pillow Block Bearing UCT205:

Shaft size	25.00mm
L(a)	89.00mm
z	97.00mm
Weight	0.76kg
Housing	T205
Radial insert ball bearing	UC205

China Pillow Block Bearing UCT205 Features:

1.Shaft fastening: with 2 grub screws, inner ring extended on both sides
2.Material: Cast Iron with AISI 52100 chrome steel
3.It is suitable for high loads and speeds, also in case of alternating direction of rotation
4.Grease: Chevron SRI-2 or food industry FM 222 or can be as your requirement
5.Working Temperature range: -20°C to +120°C degree
