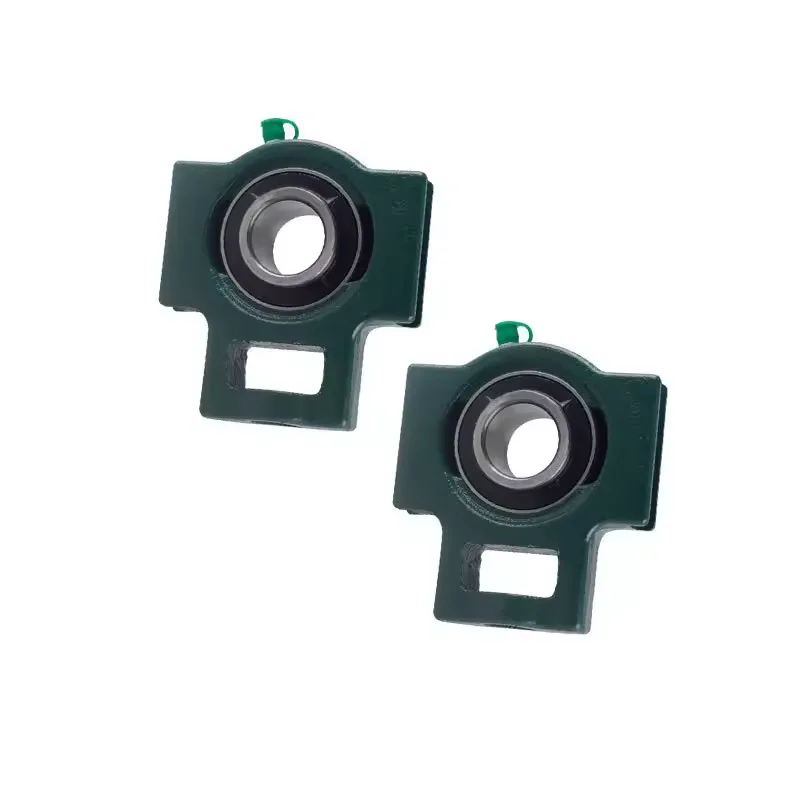

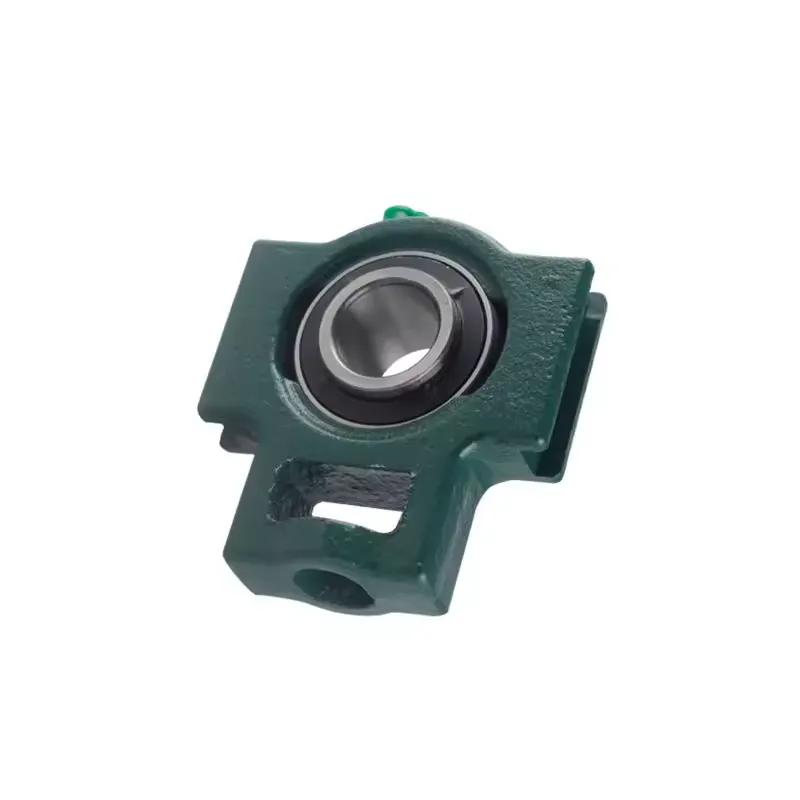

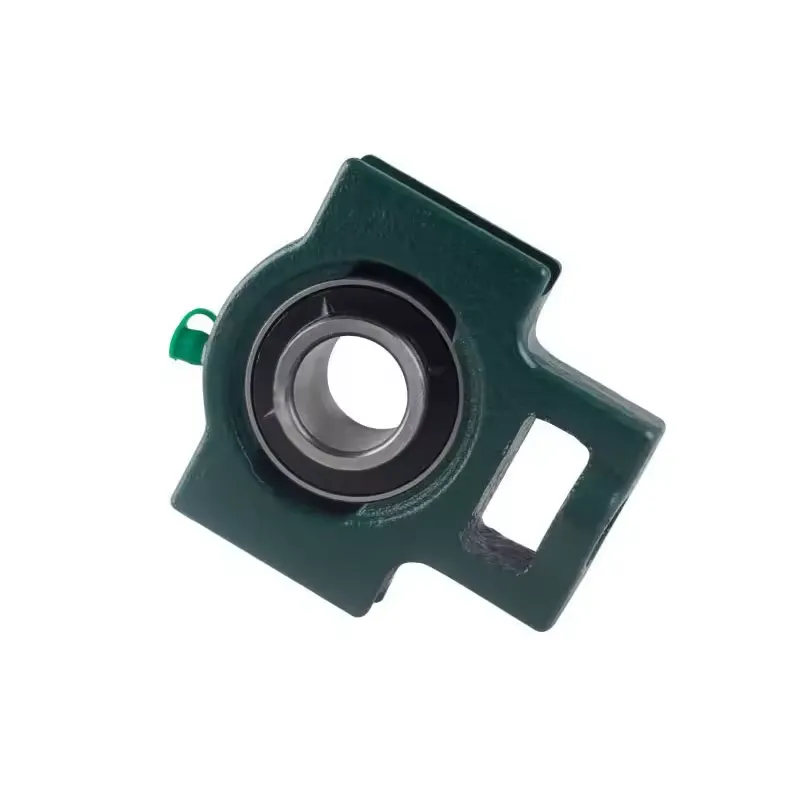

Housing units UCT, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for linear motion
d |
20 mm
|
Bore diameter |
H |
89 mm
|
Height |
L |
94 mm
|
Length total |
≈m |
0,72 kg
|
Weight |
A1 |
12 mm
|
Width guidance groove |
0,2 mm
|
Upper width guidance groove tolerance | |
0 mm
|
Lower width guidance groove tolerance | |
H1 |
76 mm
|
Distance guidance grooves |
0 mm
|
Upper distance guidance groove tolerance | |
-0,5 mm
|
Lower distance guidance groove tolerance | |
N |
19 mm
|
Fixing bore |
L1 |
61 mm
|
Distance shaft axis |
L2 |
10 mm
|
Length fixed link |
L3 |
51 mm
|
Length guidance groove |
A |
32 mm
|
Width housing fixing side |
N1 |
16 mm
|
Width recess |
N2 |
32 mm
|
Height recess |
B |
31 mm
|
Width inner ring |
S1 |
18,3 mm
|
Distance of raceway to locking collar |
T |
51 mm
|
Height housing fixing side |
Q |
M6
|
Connection thread for lubrication |
A2 |
21 mm
|
Width housing |
Tmin |
-20 °C
|
Operating temperature min. |
Tmax |
120 °C
|
Operating temperature max. |
